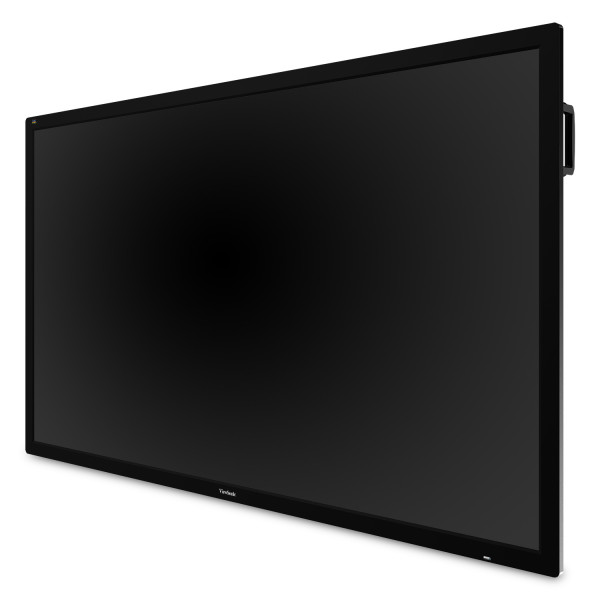

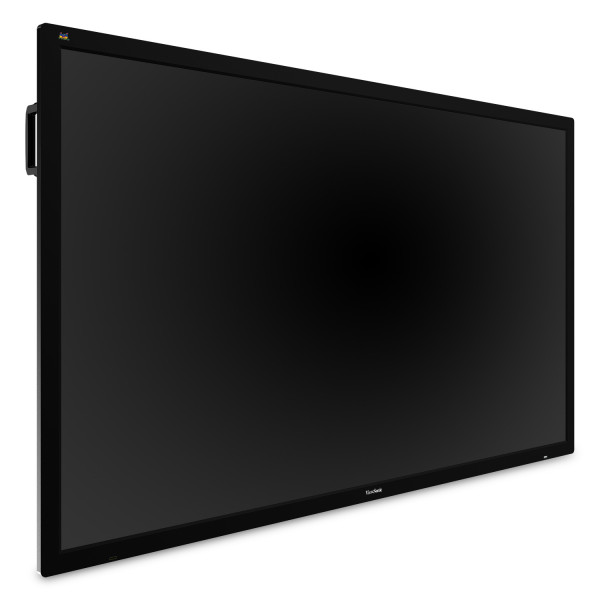

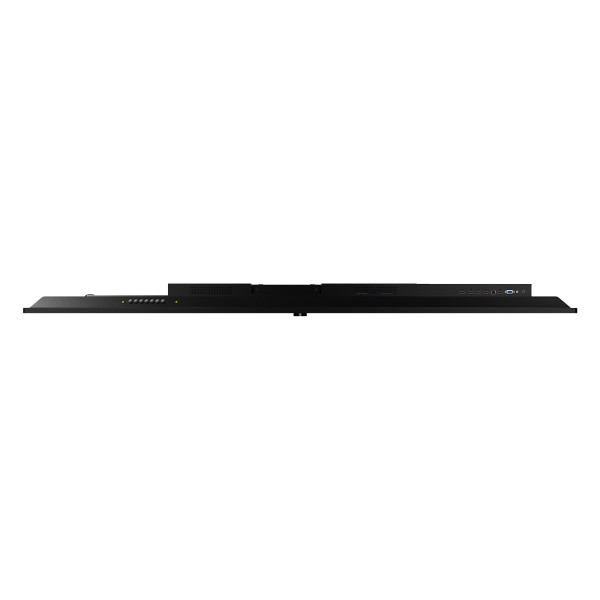

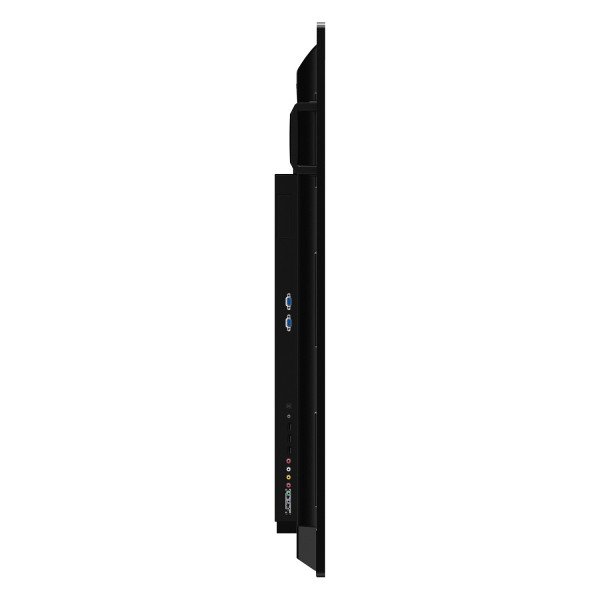

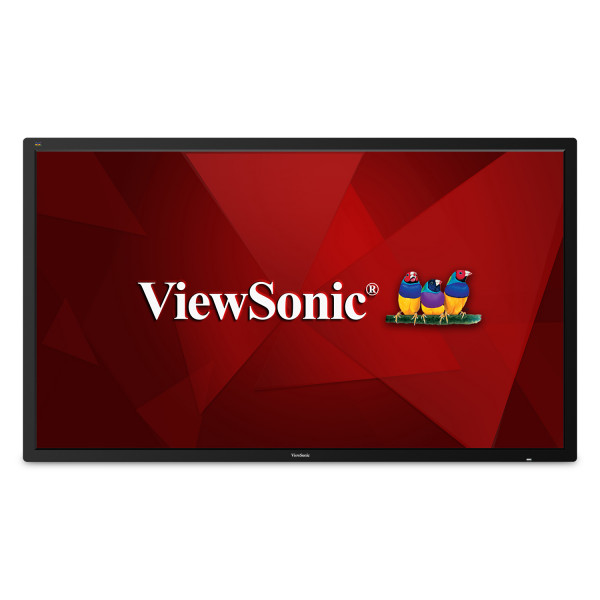

ViewSonic CDE7500

The ViewSonic^® CDE7500 is a 75’’ (75” viewable) 4K Ultra HD commercial display with 3840 x 2160 resolution, 450-nit high brightness, wide viewing angles, and dual 20W speakers, providing high-impact messaging in hotels, restaurants, and other businesses. In addition to HDMI and VGA inputs to connect with various high definition devices, this display utilizes an integrated quad-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.

ULTRA HD RESOLUTION

With four-times the resolution of Full HD, this Ultra HD 3840×2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

BUILT-IN QUAD-CORE MEDIA PLAYER

A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.

FREE BUNDLED VCONTROLLER™ SOFTWARE

Included vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

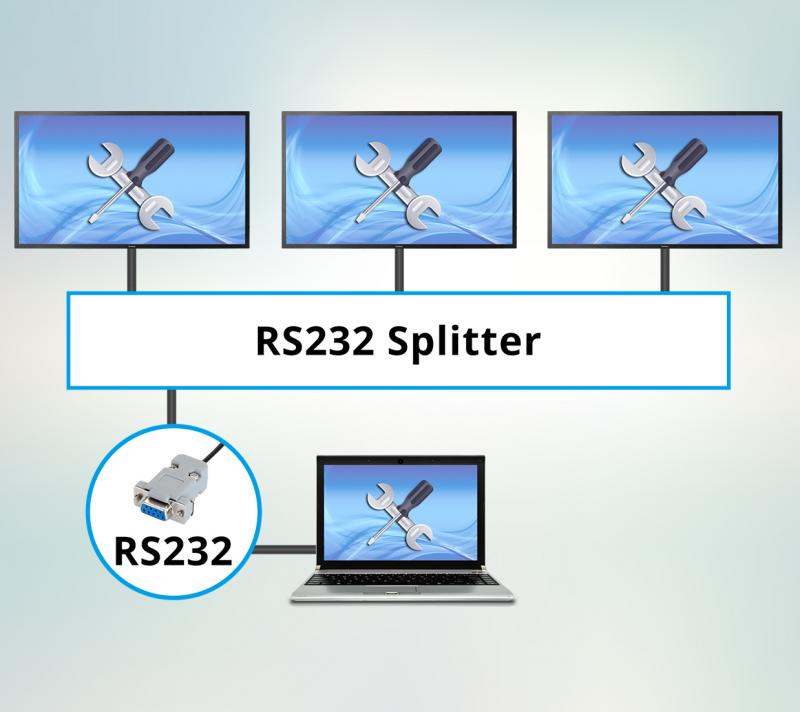

CONTROL MULTIPLE DEVICES

RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

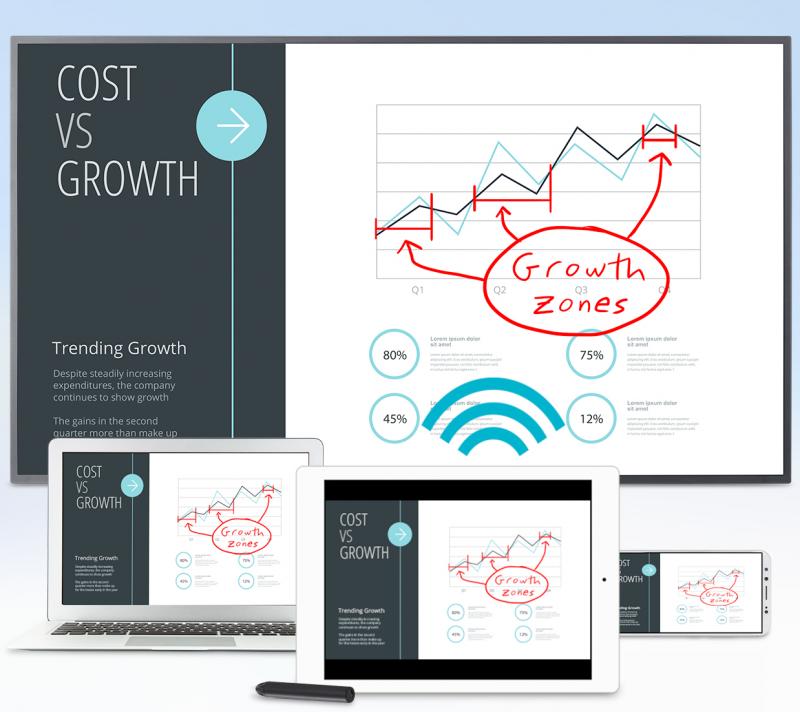

VIEWBOARD ® CAST CONTENT SHARING SOFTWARE

ViewBoard^® Cast enables content to be streamed from mobile devices onto the display over wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display.

DISPLAY

DISPLAY SIZE (IN.)

75

VIEWABLE AREA (IN.)

75

ORIENTATION

Landscape

LIGHT SOURCE

LED

RESOLUTION

3840 x 2160

ASPECT RATIO

16:9

STATIC CONTRAST RATIO

1,200:1

BRIGHTNESS

450 cd/m2

RESPONSE TIME (TYPICAL GTG)

8ms

VIEWING ANGLES

178º horizontal, 178º vertical

PANEL SURFACE

Anti-glare, Hard coating 7H

OPERATION RATING

16/7

NETWORKING

ETHERNET LAN

10/100 Mbps

EMBEDDED PLAYER

ANDROID VERSION

5.0

GPU

ARM Mali450 MP4

CPU

ARM Quad Core Cortex A53 1.5GHz

MEMORY

2GB

STORAGE

16GB

INTERFACE

OSD / Remote Control

AUDIO

INTERNAL SPEAKERS

20W (x2)

CONNECTOR

HDMI

4

HDMI OUT

1

VGA

1

YPBPR

1

COMPOSITE RCA

1

3.5MM AUDIO IN

1

3.5MM AUDIO OUT

1

SPDIF AUDIO OUT

1

USB 3.0

2

USB 2.0

2

OPS PC SLOT

1

RS232 OUT

1

ETHERNET LAN (RJ45)

1

POWER

VOLTAGE

100-240 VAC

CONSUMPTION (MAX)

500W

CONSUMPTION (TYPICAL)

75W

STAND-BY

<0.5W

CONTROLS

ON SCREEN DISPLAY

Input, Volume, Backlight, Audio, Screen, Display, Adjust

REMOTE CONTROL

Volume, Channel, Source, Mute, Back, Input, Menu

OPERATING CONDITIONS

TEMPERATURE

32-104º F (0 – 40º C)

HUMIDITY (NON-CONDENSING)

20-80%

WEIGHT (METRIC)

NET (KG)

43.1

GROSS (KG)

65.4

WEIGHT (IMPERIAL)

NET (LBS)

94.9

GROSS (LBS)

144.2

DIMENSIONS (METRIC) (WXHXD)

PACKAGING (MM)

1990 x 1315 x 350

PHYSICAL (MM)

1735.4 x 1014.0 x 92.7

DIMENSIONS (IMPERIAL) (WXHXD)

PACKAGING (IN.)

78.4 x 51.8 x 13.8

PHYSICAL (IN.)

68.3 x 39.9 x 3.7

MOUNT

VESA COMPATIBLE

600 x 400 mm

SCREW SIZE

M8

SCREW LENGTH (MM)

20

GENERAL

WARRANTY

3-year limited warranty on parts, labor and backlight, onsite warranty

RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS

CDE7500 display, power cable, remote control with batteries, ViewSonic Wizard CD (User Guide), Quick Start Guide

REGULATIONS

cTUVus, FCC, Mexico Energy, CE, CB, RoHS, ErP, WEEE

DIMENSIONS

68.32 x 39.92 x 3.65 in. / 1735.4 x 1014.0 x 92.7 mm.
