ViewSonic CDE6510
您有政府消費券？
您如果需要使用政府消費券購買本商品，請點擊圖片了解使用方法。

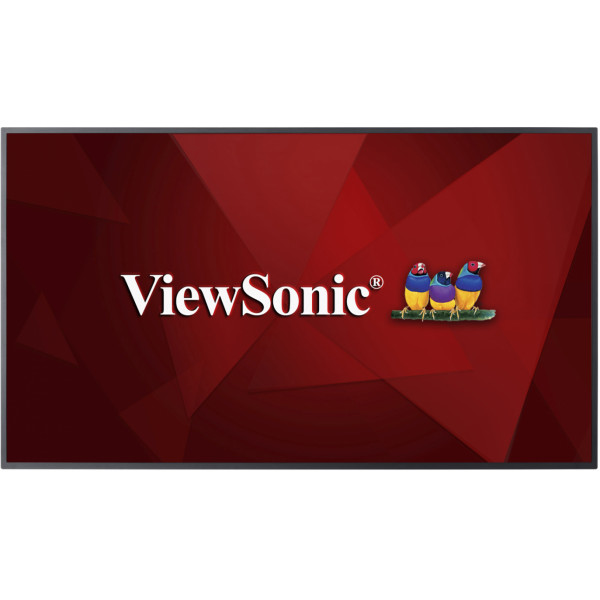

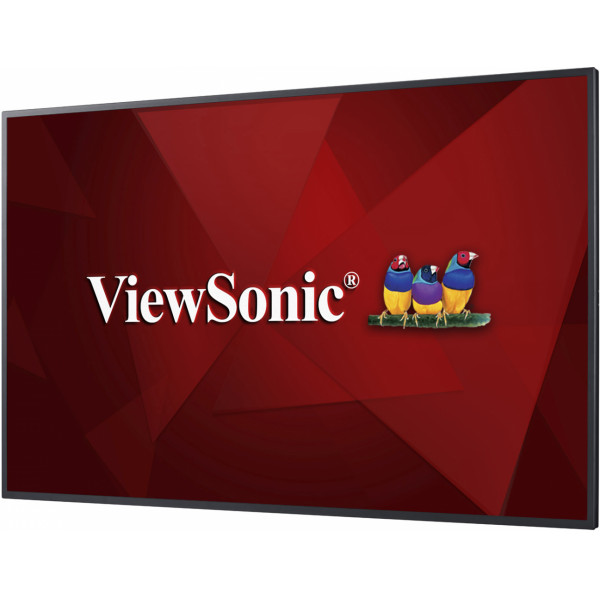

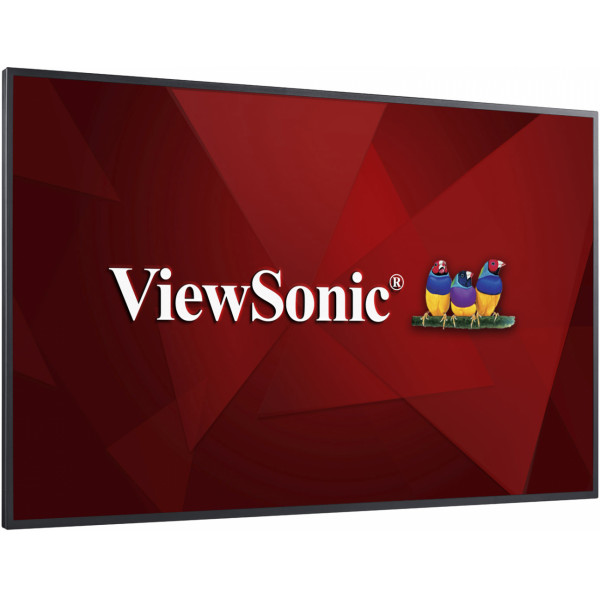

65” 4K LED Commercial Display with Support for Android apps and Intel OPS
The ViewSonic CDE6510 is a great value 65” 4K LED commercial display with high-reliability 16 hours per day/7 days a week operating time. The embedded Android SOC enables CDE6510 to install Android apps for rich content broadcasting while the Intel OPS PC slot supports higher computing performance with 4K DisplayPort for a wide range of user scenarios. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including 4K DisplayPort, HDMI, VGA, USB, IR, RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE6510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.
名稱：CDE6510_UG_ENG.pdf
CDE6510_UG_ENG.pdf
描述
4K Ultra HD Resolution4K Resolution
With four-times the resolution of Full HD, this Ultra HD 3840 x 2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
Broadcast Content from Android AppsDiverse Android apps rich content
The embedded Android SOC allows Android apps to play on CDE6510. Among these apps, users can assign one as their default hotkey for instant activation. Users have the option to present fascinating content from Android apps they wish.

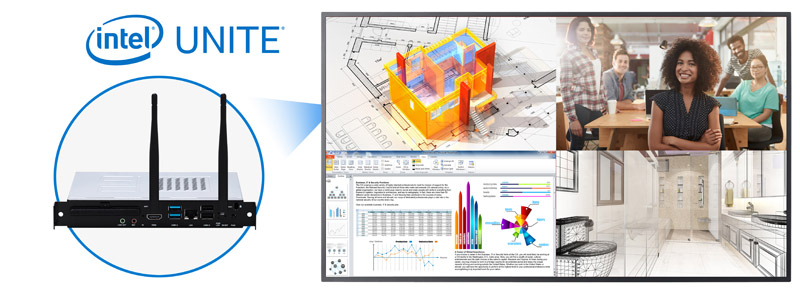

Intel OPS Expansion Slot for ComputingComputing expansion
For more powerful computing, the CDE6510 provides an Intel OPS (Open Pluggable Specification) PC slot for plug-in PC module VPC12-WPO-2 (Optional) which is powered by Intel Unite® and Intel vPro™ technology.

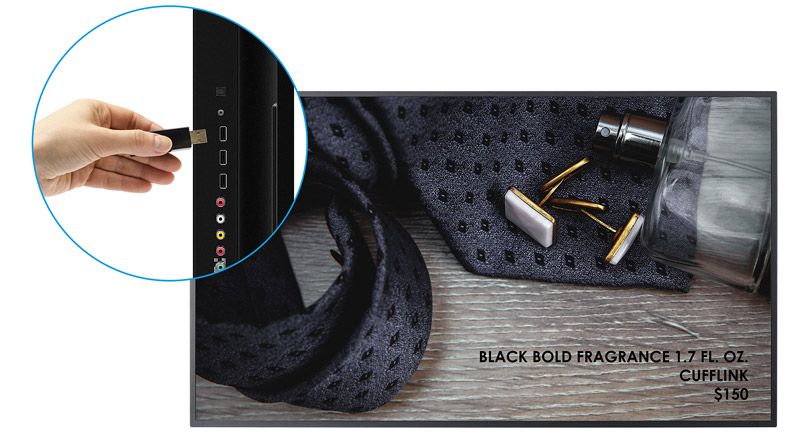

Integrated USB Multimedia PlayerUSB playback photos, music & video
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

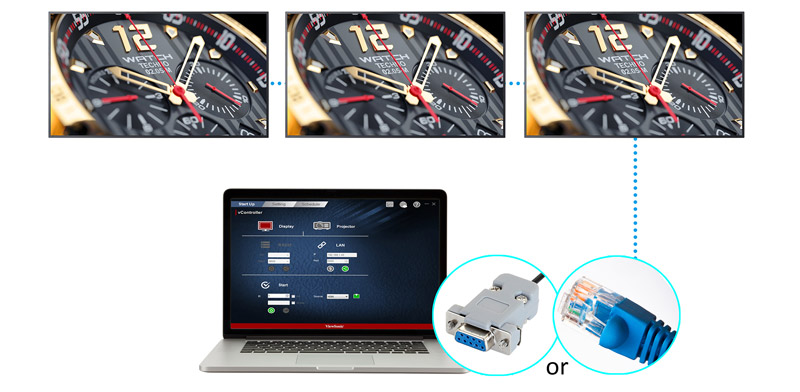

vController™ Software: Remote Display ManagementvController™ software: remote display management
Remote display management without needing to type in commands. By using an RS232 or RJ45 connection between a computer and digital signage, users can manage the signage’s OSD settings such as On/Off, display signal source, audio, and other general items.

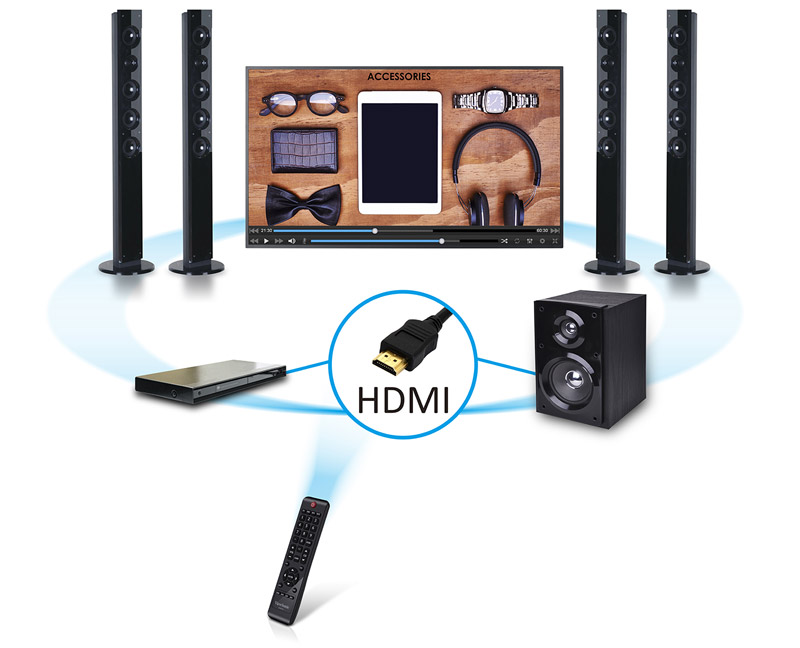

Control Multiple HDMI DevicesHDMI CEC local control
With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.
Broadcast Multimedia without External SpeakersDual speakers 20W
Dual integrated speakers operate at a powerful 20 watts to compliment eye-catching multimedia content with incredible sound and creating a lasting audio-visual impression on your audience.
Enhanced Viewing ComfortBlue Light Filter, Flicker-Free
This display adopts exclusive Flicker-Free and Blue Light Filter eye-care technologies. The display’s constant LED light source and reduced blue light exposure allow you to enjoy longer viewing time with imperceptible screen flickering at all brightness levels.
額外資訊
規格: ViewSonic CDE6510
|
- LCD PANELPanel Size: 65″
Type/ Tech: TFT LCD Module with DLED Backlight
Display Area (mm): 1428.48 (H) x 803.52 (V)
Aspect Ratio: 16:9
Resolution: 3840×2160 @60Hz
Colors: 1.07B colors
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1 (typ.)
Response Time: 8?ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight: DLED
Backlight Life: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB / VGA: x 1
DisplayPort: x 1
Audio: x1 PC audio (3.5 mm)
RS232: x 1
PC Slot: x 1 (optional VPC12-WPO-2)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- LANRJ45: x 1
- USBType A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - SPEAKERS10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: Normal 165 W, Max 295 W - ERGONOMICSWall Mount (VESA? ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperature (? C): 5°C to 40°C
Humidity: 20% ~ 80% non-condensing - DIMENSIONS
(W X H X D)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - REGULATIONSStandard: US NRTL with Canada, FCC, Energy star, Mexico CoC and energy , CE, CB, RoHS, ErP, REACH, WEEE, RCM
- WHAT’S IN THE BOX?1. CDE6510 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
