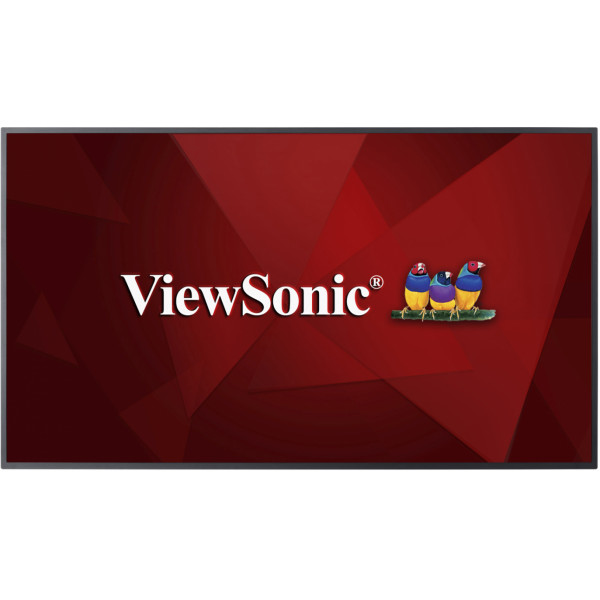

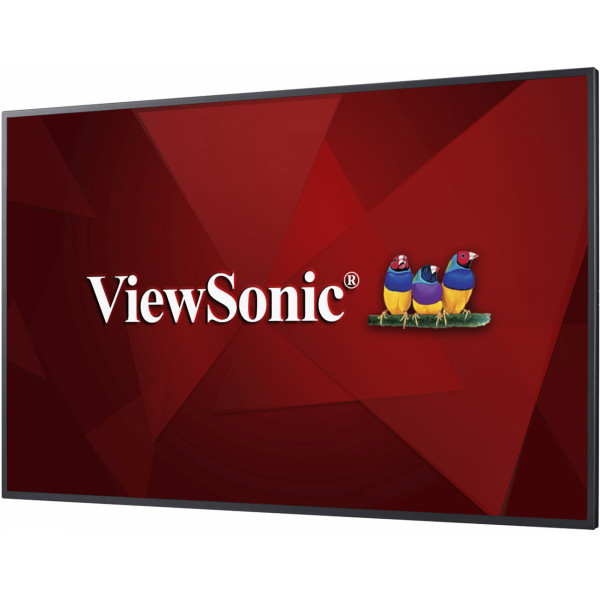

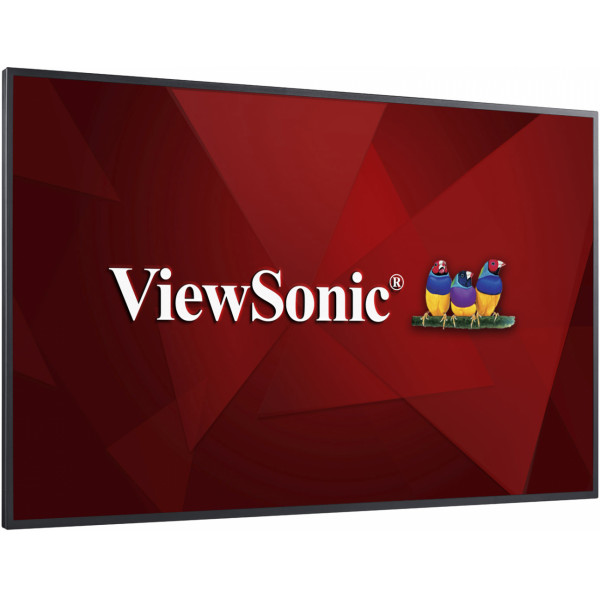

ViewSonic CDE5510

4K Ultra HD Resolution4K Resolution

With four-times the resolution of Full HD, this Ultra HD 3840 x 2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

Broadcast Content from Android AppsDiverse Android apps rich content

The embedded Android SOC allows Android apps to play on CDE5510. Among these apps, users can assign one as their default hotkey for instant activation. Users have the option to present fascinating content from Android apps they wish.

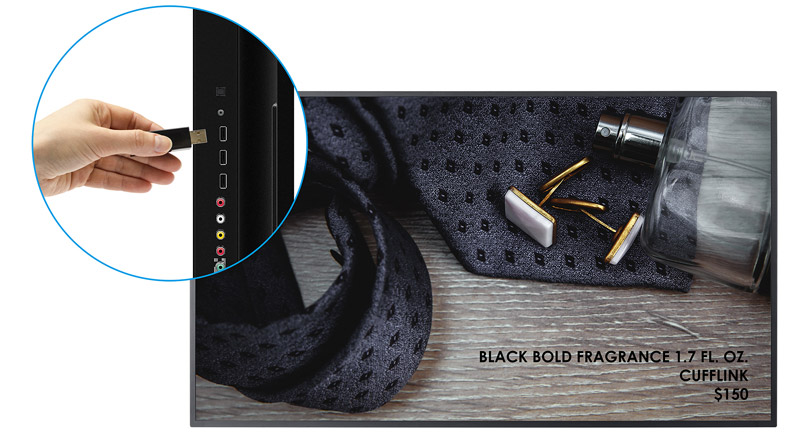

Integrated USB Multimedia PlayerUSB playback photos, music & video

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

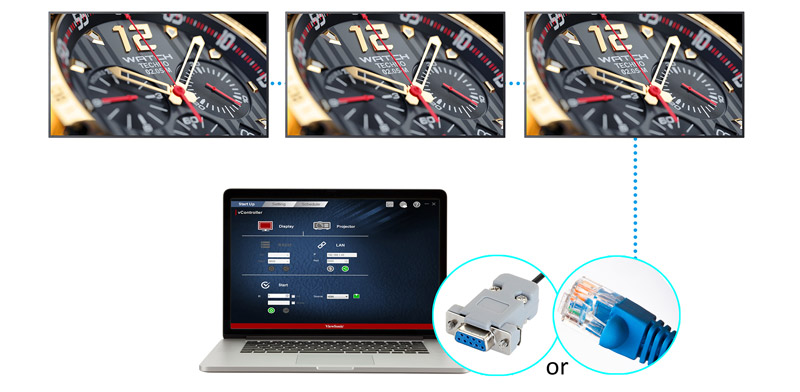

vController™ Software: Remote Display ManagementvController™ software: remote display management

Remote display management without needing to type in commands. By using an RS232 or RJ45 connection between a computer and digital signage, users can manage the signage’s OSD settings such as On/Off, display signal source, audio, and other general items.

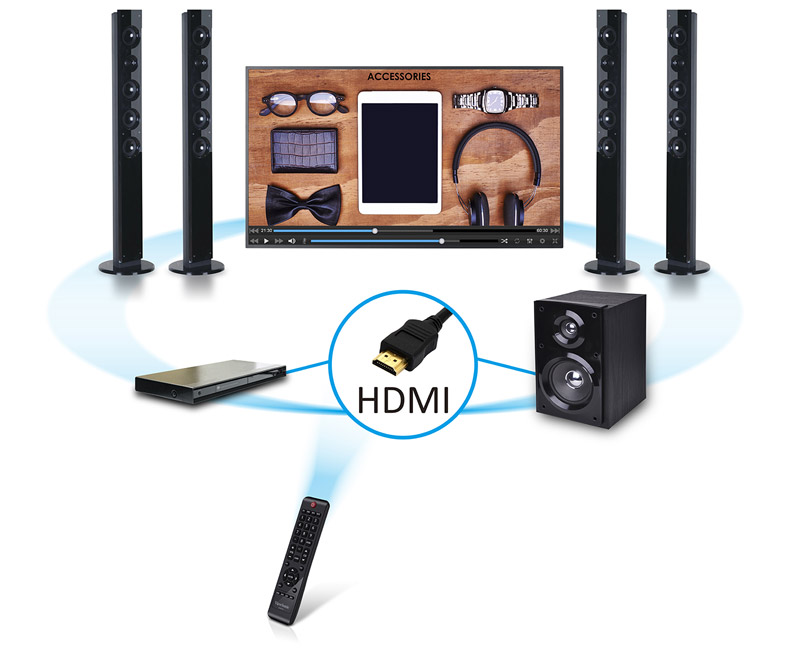

Control Multiple HDMI DevicesHDMI CEC local control

With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.

Broadcast Multimedia without External SpeakersDual speakers 20W

Dual integrated speakers operate at a powerful 20 watts to compliment eye-catching multimedia content with incredible sound and creating a lasting audio-visual impression on your audience.

Enhanced Viewing ComfortBlue Light Filter, Flicker-Free

This display adopts exclusive Flicker-Free and Blue Light Filter eye-care technologies. The display’s constant LED light source and reduced blue light exposure allow you to enjoy longer viewing time with imperceptible screen flickering at all brightness levels.

• LCD PANELPanel Size: 55″
  Type/ Tech: TFT LCD Module with LED Backlight
  Display Area (mm): 1209.6(H) x 680.4(V)
  Aspect Ratio: 16:9
  Resolution: 3840×2160 @60Hz
  Colors: 1.07B colors
  Brightness: 350 nits (typ.)
  Contrast Ratio: 4000:1 (typ.)
  Response Time: 8?ms
  Viewing Angles: H = 178, V = 178 (typ.)
  Backlight: DLED
  Backlight Life: 30,000 Hours Min.
  Hardness: 3H
• INPUTHDMI: x 2
  RGB / VGA: x 1
  DVI: x 1
  Audio: x1 PC audio (3.5 mm)
  YPbPr: x 1
  RS232: x 1
  SD/SDHC: x 1
  IR: x 1 (over audio port)
• OUTPUTAudio: x 1 (RCA L/R)
  RS232: x 1
  IR: x 1 (over audio port)

• LANRJ45: x 1
• USB2.0 Type A: x 1 (USB Playback)
  3.0 Type A: x 1 (USB Playback)
• SPEAKERS10W x 2
• COMPATIBILITYVGA: 1920 x 1080
  DVI: 480i, 480p,720p,1080i,1080p
  HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
• POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
  Consumption: Normal 145 W, Max 190 W

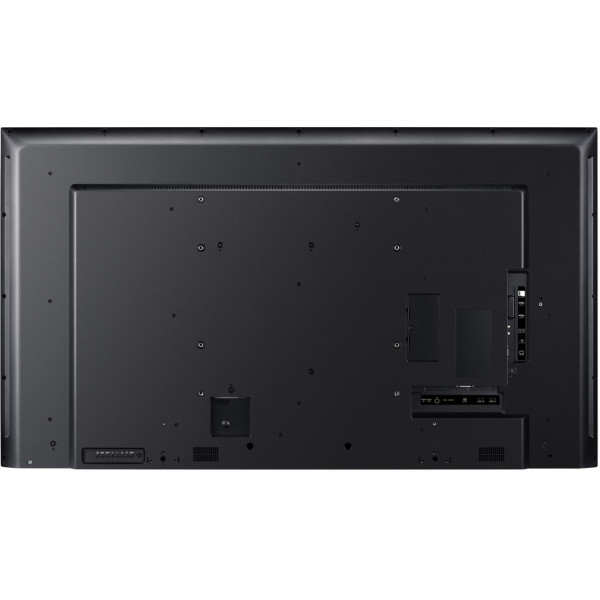

• ERGONOMICSWall Mount (VESA? ): 400 x 400 mm / 400 x 200 mm; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
• OPERATING CONDITIONSTemperature (? C): 5°C to 40°C
  Humidity: 20% ~ 80% non-condensing
• DIMENSIONS (W X H X D)Physical (mm / inch): 1239.2 x 751.9 x 329.81 mm / 48.79 x 29.6 x 12.98 in. (with Stand)
  Physical w/o Stand (mm / inch): 1239.2 x 711.6 x 61.7 mm / 48.79 x 28.02 x 2.43 in. (w/o Stand)
  Packaging (mm / inch): 1365 x 864 x 185 mm / 53.74 x 34.02 x 7.28 in
• WEIGHTNet (kg / lb): 17.76 kg / 39.15 lbs (with Stand)
  Net w/o Stand (kg / lb): 15.96 kg / 35.19 lbs (w/o stand)
  Gross (kg / lb): 22.33 kg / 49.23 lbs
• REGULATIONSStandard: US NRTL with Canada, FCC, Energy star, Mexico CoC and energy , CE, CB, RoHS, ErP, REACH, WEEE, RCM
• WHAT’S IN THE BOX?1. CDE5510 commercial display
  2. Remote Control with batteries
  3. User manual CD wizard
  4. Quick Start Guide
  5. Power Cables
  6. VGA cable
  7. RS232 cable
  8. RS232 daisy chain cable (2.4mm – 2.4mm)
  9. IR sensor cable
