描述
特點和優點
4K 顯示解析度帶來絢麗的色彩和清晰度
- 提供寬廣的觀看體驗
- 高對比顯示
- 支援 PIP 和 PBP 的分割畫面
先進的投射電容式 (PCAP) 觸控技術
- 直覺的 40 個觸點
- 具有 4K 壓力靈敏度等級的 Duo 智慧筆
- 手掌阻力
- 抗光學幹擾
- 耐屏蔽
- 反應快速，文字流暢，示範流暢
耐用的白板表面
- 莫氏硬度9級強化玻璃
- 防眩光濾鏡可減少鏡面反射
- 纖薄時尚的設計
多作業系統+多模組
- 作業系統間無縫切換
- 內建Android+可插拔PC模組
- 隱藏式Wi-Fi模組支援Wi-Fi 6
額外資訊

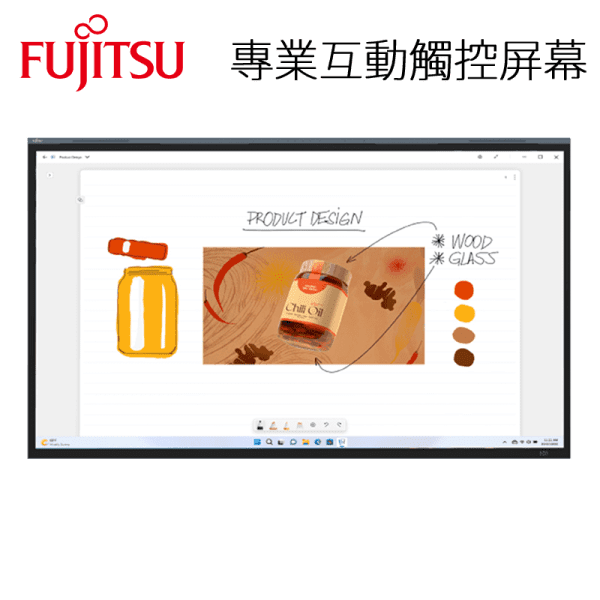

規格: FUJITSU IW862 Ultra 互動觸控屏幕
| Projectors | ||
|---|---|---|
|
||
| Monitors | ||
|
||
Technical Details
| Product Name | Fujtisu Interactive Panel IW862 Ultra |
|---|---|
| Picture performance | |
| Panel backlit | DLED |
| Screen surface treatment | AG tempered glass Mohs hardness level 9 |
| Contrast – typical | 4,000:1 |
| Viewing angle (h/v) – typical | 178° |
| Color performance | 1.07 billion colors (10bit) |
| Brightness – typical | 400 cd/m² (Typ) |
| Flicker-free technology | Yes |
| Low blue light | Yes |
| Anti-Glare filter | Yes |
| Picture in Picture (PIP) mode | Yes |
| Picture by Picture (PBP) mode | Yes |
| Size and resolution | |
| Aspect ratio | 16:09 |
| Resolution (native) | 3,840 (H) x 2,160 (V) |
| Picture size (H x V) | 1,895.04 x 1065.96 mm |
| Pixel pitch | 0.4935 mm |
| Response time | 8 ms (Typ) |
| Refreshing frequency | 60 Hz |
| Connectivity | |
| HDMI | 1 HDMI-Out (4K 60Hz), 3 HDMI-In (HDMI 2.1) |
| USB | 3 USB 2.0 2 USB 3.0 |
| USB Type-C® | 1 USB Type-C® 65W |
| Audio output | 1 |
| RS232 control | 1 |
| LAN In | 1 GIGABIT LAN (RJ45) |
| LAN Out | 1 GIGABIT LAN (RJ45) |
| Touch Out | 2 USB 2.0 |
| SPDIF | 1 SPDIF |
| Wi-Fi | Yes, Wi-Fi 6, Dual Band |
| Touch system | |
| Sensing type | Capacitance touch recognition |
| Touch point | 40 points touches |
| Minimum object size | 3 mm (Active pen), 8 mm (Passive Pen) |
| Touch tool | Passive Capacitive Pen / Active Capacitive pen /Finger touch |
| Response time | ≤10 ms |
| Accuracy | ±1 mm (Active Pen), ±2 mm (Passive Pen) |
| Hand & Pen Separation | Support |
| Palm Rejection | Support |
| Pressure | 4096 level |
| Audio | |
| Sound channel | 2.2 channel |
| Speaker | 2×8W + 2×18W (Total 52W) |
| Sound pressure level | 86dB |
| Peak power | 108W |
| Microphone | |
| Built-in microphone array | 8 |
| Audio pickup range | 0-8 meters |
| Built-in sensors / readers | |
| NFC reader | Yes |
| Ambient light sensor | Yes |
| CO2 sensor | Yes |
| Temperature sensor | Yes |
| Humidity sensor | Yes |
| Wireless Screen Mirroring | |
| Wireless Screen Mirroring | Support |
| PIN code connection mode | Support both static and dynamic pin codes |
| Maximum split screens | 9 |
| Maximum devices projection | 9 Simultaneous (Android mode) |
| Self-hotspot Screen Mirroring | Support |
| Native AirPlay protocol for Screen Mirroring | Support |
| Native Chromecast protocol for Screen Mirroring | Support |
| Native Miracast protocol for Screen Mirroring | Support |
| Mirroring of Panel display to client devices | Support |
| Reversely control Windows / MacOS during Screen Mirroring | Support, client software required |
| Multi-Panels synchronization | Support |
| Built-in moderator console | Yes |
| Power consumption (typical) | |
| Standby Power | ≤0.5 W |
| Typical power* [1] | 330 W |
| Electrical values | |
| Rated voltage range | 100 V – 240 V |
| Rated frequency range | 5A |
| Quality and reliability | |
| MTBF | 50,000 h |
| System | |
| CPU (Central Processing Unit) | Quad core A73 x 4 + Quad core A53 x 4 |
| GPU (Graphics Processing Unit) | Quad core Mali G52MP8 |
| System memory | 8 GB |
| Storage | 64 GB |
| OS | Android 11 |
| Dimensions / Weight | |
| Power key location & number | 1 Side physical key |
| Dimension L x H x D | 1,958 x 1161 x 79 mm |
| Dimension (package) L x W x H | 2,123 x 280 x 1308 mm |
| Net weight | 62.35kg |
| Gross weight | 83.85kg |
| Thickness of machine and wall mount | 109 mm (9,060 G) |
| Wall-hanging screw spec | M8 x 25 mm |
| VESA | 800 x 600 mm |
| Miscellaneous | |
| Color | Black |
| Password lock | Support |
| USB key Panel lock | Support |
| Smart shared USB | Support |
| Switch sources | Support |
| Scheduled power up / shutdown | Support |
| Multiple-windows | Support |
| Order information | |
| Order code | HLIWB0039A-01 |
| EAN code | 8888551551743 |
| Warranty | |
| Standard warranty | 1 year (depending on country) |
| Service level | On-site |
