Temperature Screening Solution: Efficiently Screening Crowds
描述
As the world gets used to coexisting with COVID-19, people are hoping that recent inconveniences are gradually removed so that life can go back to normal. This disease has been a reminder to people of the need to protect themselves. The BenQ Temperature Screening Solution is the ideal choice for corporate and retail bringing back normalcy. This contactless temperature screening system ensures that offices, shopping malls, and businesses can function while still protecting the health of employees and customers.
A temperature screening solution is an effective way of screening the potentially ill, safeguarding indoor locations for employees and customers alike. It is a more comprehensive solution than competing options, as it highlights efficiency, safety, and tracing capability.
A reliable temperature screening solution can process crowds quickly, making it ideal for rapid screening at doorways. This eliminates the expense of having personnel take temperatures manually and the customer inconvenience of long lines.
Customers line up for a temperature check
Scanning at a distance reduces the health risks to monitoring personnel, and doing so at speed reduces risk of transmission between passersby, which makes it a superior solution to competing options like handheld thermographic cameras.

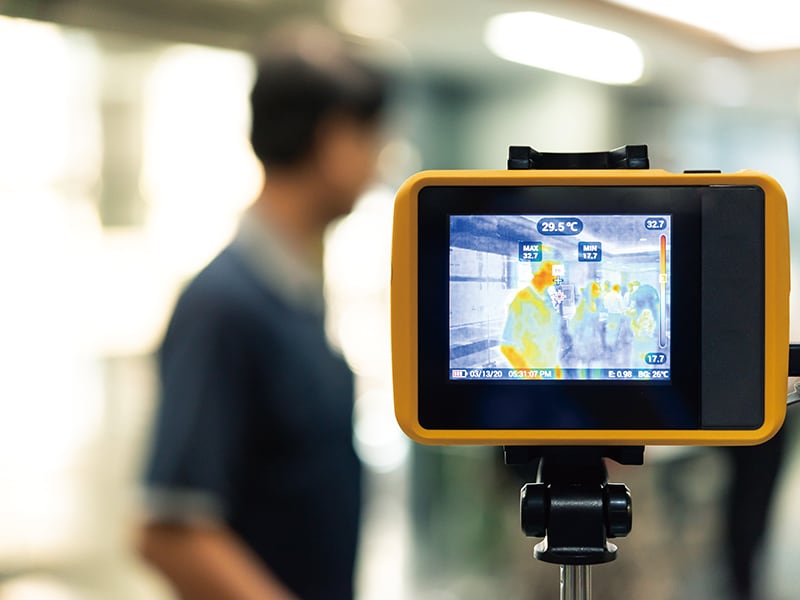

Taking temperatures by hand increases the risk of infection.
Data collected by the system can be stored and used to cross-check possible infected persons. This ensures that cases are not misdiagnosed or missed. An automated email is sent to supervising personnel if an anomaly like a high temperature is noted.
When tracing is impossible, an opportunity to halt the spread of disease is lost.
BenQ is a leader in product design for visual displays and network convergence technologies with the hope to delight the world. The firm is well-placed to provide state-of-the-art screening solutions.

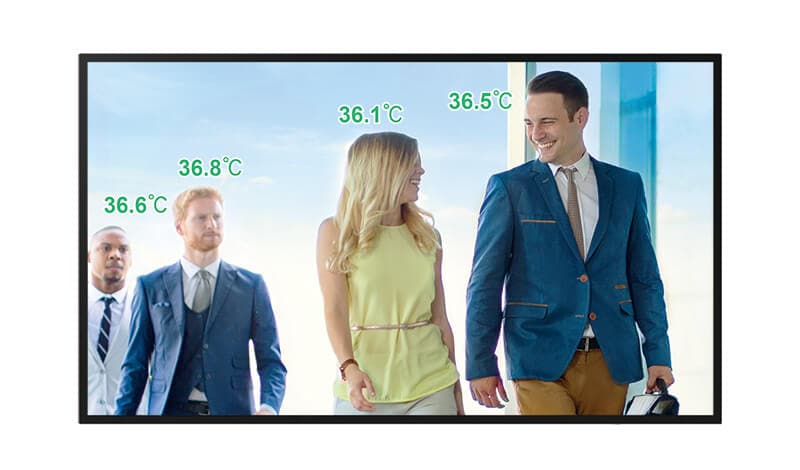

Images are instantly transferred to the user’s display for remote monitoring, while multiple test points allow for highly efficient rapid scans. Customizable temperature settings based on conditions on the ground limit errors, while privacy can be protected through the inclusion of both thermal and optical cameras. Where a high temperature is noted, an alarm will go off and related data can be saved and emailed to allow for tracing.

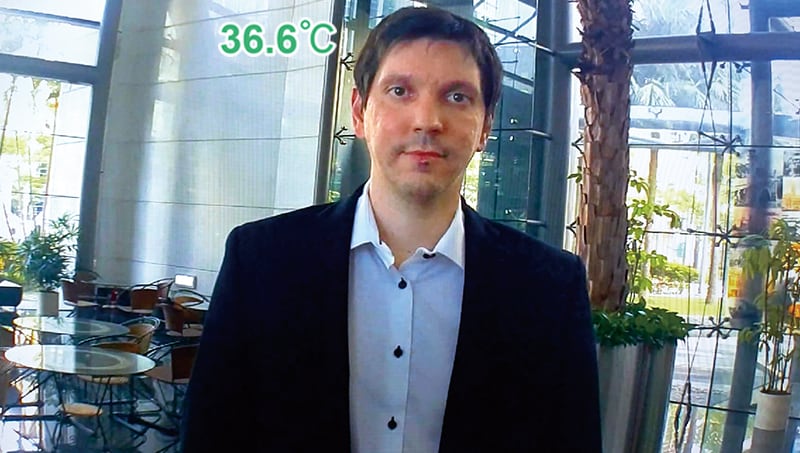

The optical camera preserves privacy.

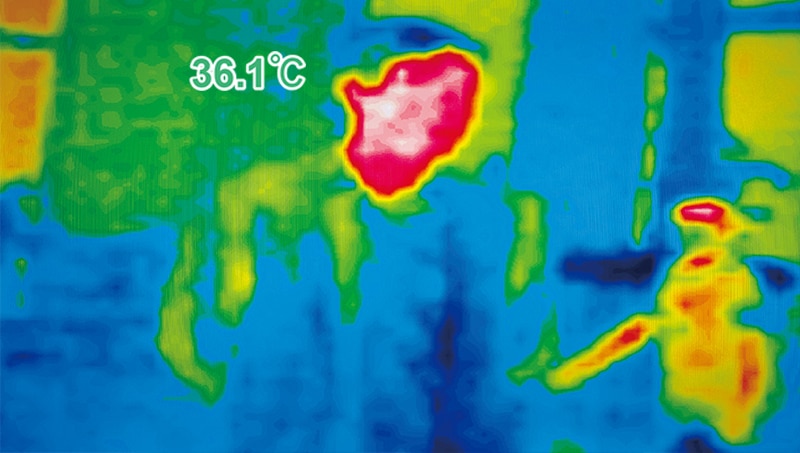

The thermal camera shows points of higher temperature.

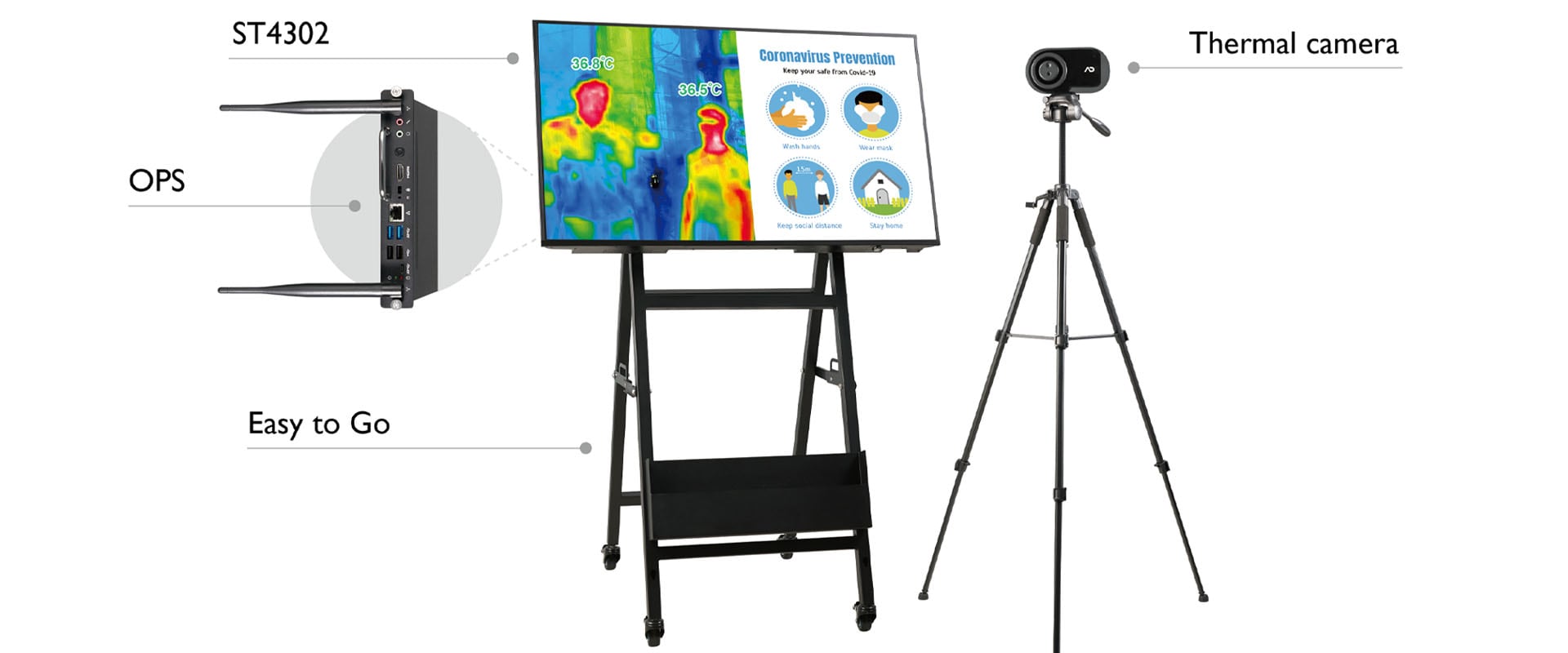

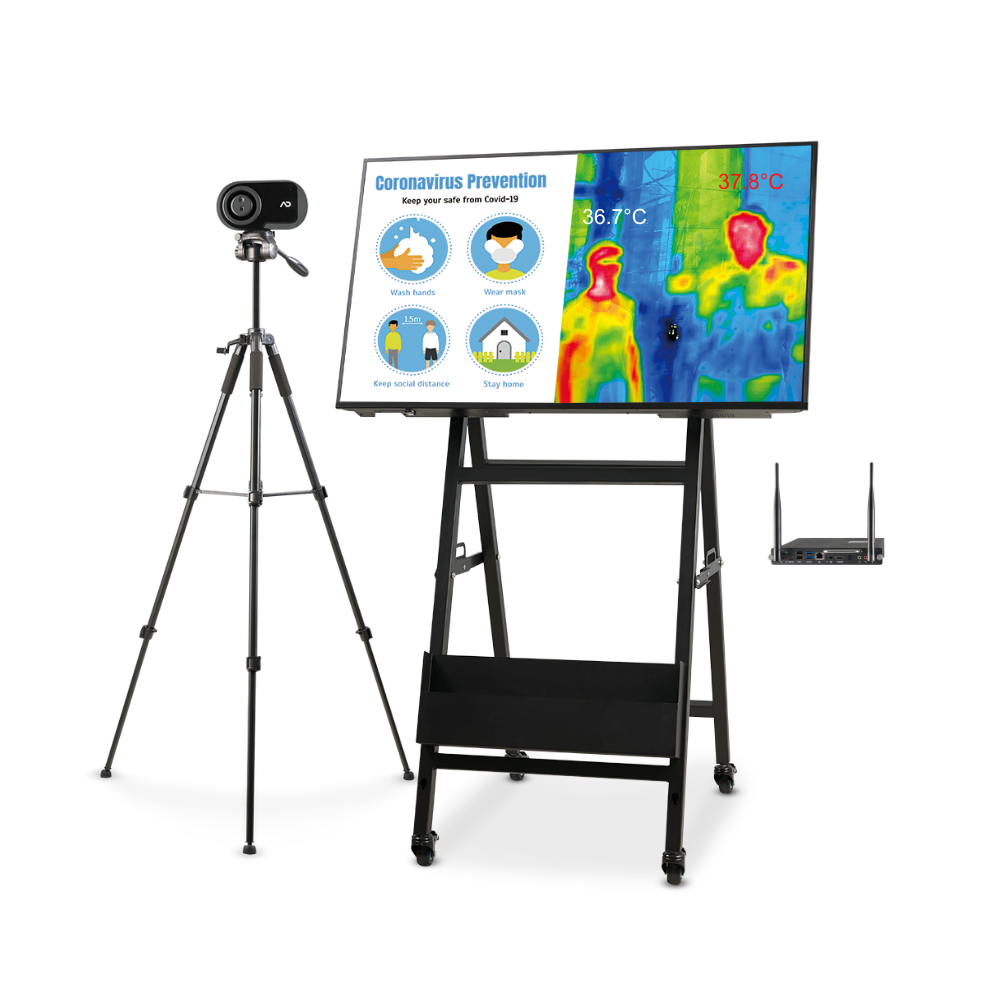

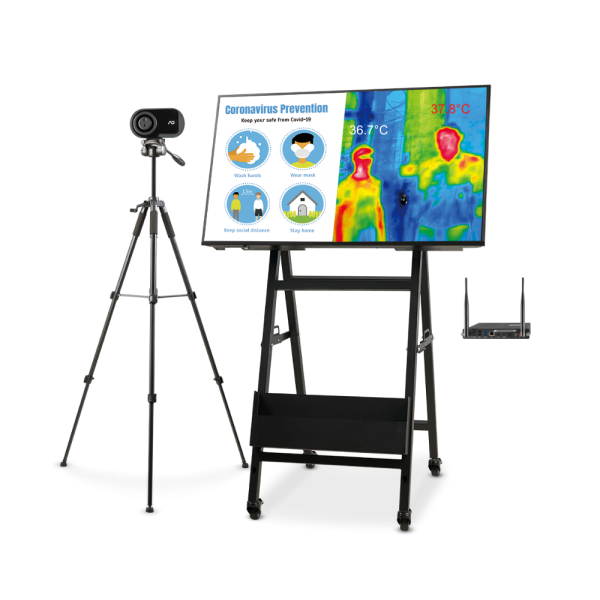

BenQ is known across the industry for providing on-point technical solutions to modern-day problems. The ST02 4K Smart Signage series, an all-in-one Android solution, is packed with the latest technology, including 4K resolution at 450 nits brightness. Built to run 18 hours a day, seven days a week, this workhorse can be set to view in landscape or portrait style (available in either 43/55”), allowing for greater flexibility in installation, and can support up to nine cameras.

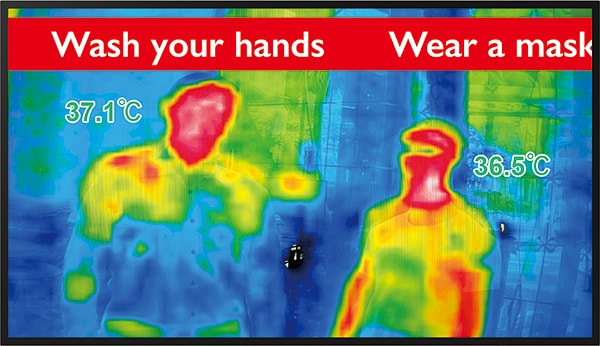

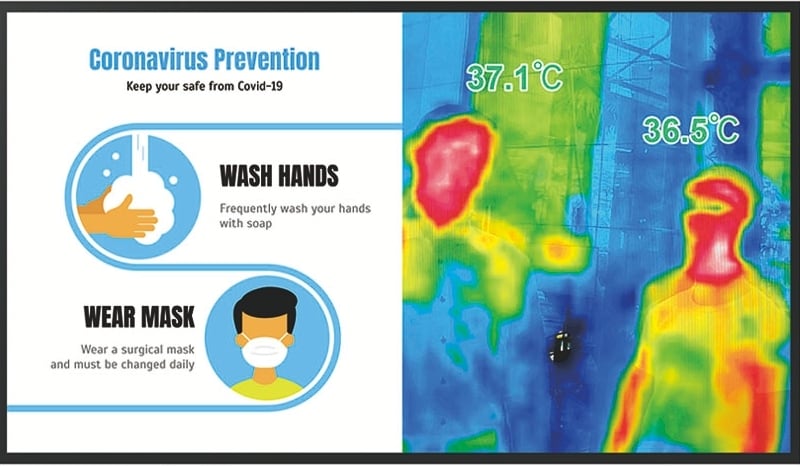

The X-Sign’s templates help admins design messages quickly. One half of the screen displays a message, the other half a live image from the thermal camera in either landscape or portrait view.
The system allows for customizable X-Sign Broadcast, such as alerts and evacuation calls, as both scheduled or interrupt text or image messages. These messages can be programmed via both devices and PCs.

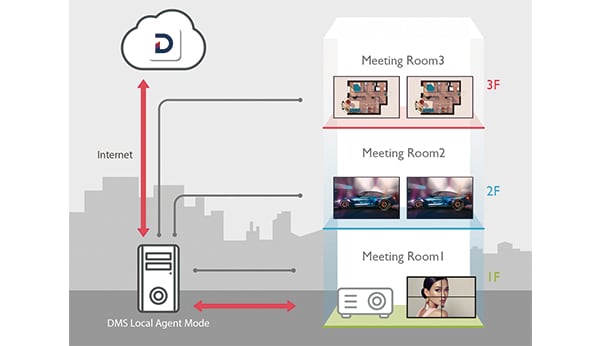

Displays can be remotely monitored and managed through the Device Management Solution (DMS). Accessing the DMS Cloud, users can install and execute Android apps on displays remotely. Such convenient solutions reduce energy and personnel costs by being intuitive and on-the-go!
|
DVY24 |
|
|---|---|
|
DVY24 Full color video camera |
|
|
DVY24 Resolution
|
2MP(1920×1080 pixels) 16:9
|
|
DVY24 Field of View
|
65°(hor.)x40°(ver.)
|
|
DVY24 Frame rate
|
Max.30fps
|
|
DVY24 Video Stream
|
|
|
DVY24 Format
|
H.264(video camera) / Proprietary(thermal imager)
|
|
DVY24 Bitrate
|
Max. 4Mbps |
|
DVY24 Users
|
Concurrent 4 clients |
|
DVY24 Thermal imager
|
|
|
DVY24 Resolution |
80 x 60 pixels |
|
DVY24 Field of view
|
51°(hor.)x38.25°(ver.)
|
|
DVY24 Frame rate
|
Max. 7fps
|
|
DVY24 Sensitivity
|
0.1°C / 100mk(NETD)
|
|
DVY24 Sensing range
|
20~100°C |
|
DVY24 Accuracy
|
± 0.5°C (Use black body in 1meter ) |
|
DVY24 System
|
|
|
DVY24 Network
|
Support RJ45 ethernet connection
|
|
DVY24 I/O
|
Reset button x1 (Return to factory default) LED indicator (blue) x1 (Normal operation) LED indicator (yellow) x1 (Network packet act) |
|
DVY24 Power input
|
5Vdc/2.5A (Micro-USB connector)
|
|
DVY24 Operating temp.
|
0~40°C ， ≦95%RH
|
|
DVY24 Storage temp.
|
–10~60°C ， ≦95%RH
|
|
DVY24 Dimensions
|
101.3mm(H)x65.5mm(W)x43.8mm(D)
|
| Model | ST4302 | ST5502 | ST6502 | ST7502 | ST8602 |
|---|---|---|---|---|---|
|
Model
Screen Size
|
ST4302
43″
|
ST5502
55″
|
ST6502
65″
|
ST7502
75″
|
ST8602
86″
|
|
Model
Resolution
|
ST4302
3840 × 2160 pixels
|
ST5502
3840 × 2160 pixels
|
ST6502
3840 × 2160 pixels
|
ST7502
3840 × 2160 pixels
|
ST8602
3840 × 2160 pixels
|
|
Model
Brightness (typ.)
|
ST4302
450 nits
|
ST5502
450 nits
|
ST6502
450 nits
|
ST7502
450 nits
|
ST8602
450 nits
|
|
Model
Light life (typ.)
|
ST4302
30000 hrs
|
ST5502
30000 hrs
|
ST6502
30000 hrs
|
ST7502
30000 hrs
|
ST8602
30000 hrs
|
|
Model
OS
|
ST4302
Android 8.0
|
ST5502
Android 8.0
|
ST6502
Android 8.0
|
ST7502
Android 8.0
|
ST8602
Android 8.0
|
|
Model
Video input
|
ST4302
• 2 × HDMI (2.0) • DisplayPort (1.2) • VGA |
ST5502
• 2 × HDMI (2.0) • DisplayPort (1.2) • VGA |
ST6502
• 2 × HDMI (2.0) • DisplayPort (1.2) • VGA |
ST7502
• 2 × HDMI (2.0) • DisplayPort (1.2) • VGA |
ST8602
• 2 × HDMI (2.0) • DisplayPort (1.2) • VGA |
|
Model
USB
|
ST4302
2 × Type-A (2.0) OPS |
ST5502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS |
ST6502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS |
ST7502
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS |
ST8602
2 × Type-A (2.0)
1 x Type-A (3.0) for OPS |
|
Model
RJ45
|
ST4302
1
|
ST5502
1
|
ST6502
1
|
ST7502
1
|
ST8602
1
|
|
Model
OPS Slot
|
ST4302
1
|
ST5502
1
|
ST6502
1
|
ST7502
1
|
ST8602
1
|
| System |
|
|---|---|
|
System
CPU
|
Intel® Kaby lake- U i5 7200U , TDP 15W
|
|
System
RAM
|
DDR4 8G (4GB x2) |
|
System
HDD/SSD
|
1TB HDD
|
|
Physical |
|
|---|---|
|
Physical Dimensions (WxHxD) (mm)
|
548 x 1203 x 679 mm (compatible with 43/55″ signage) |
