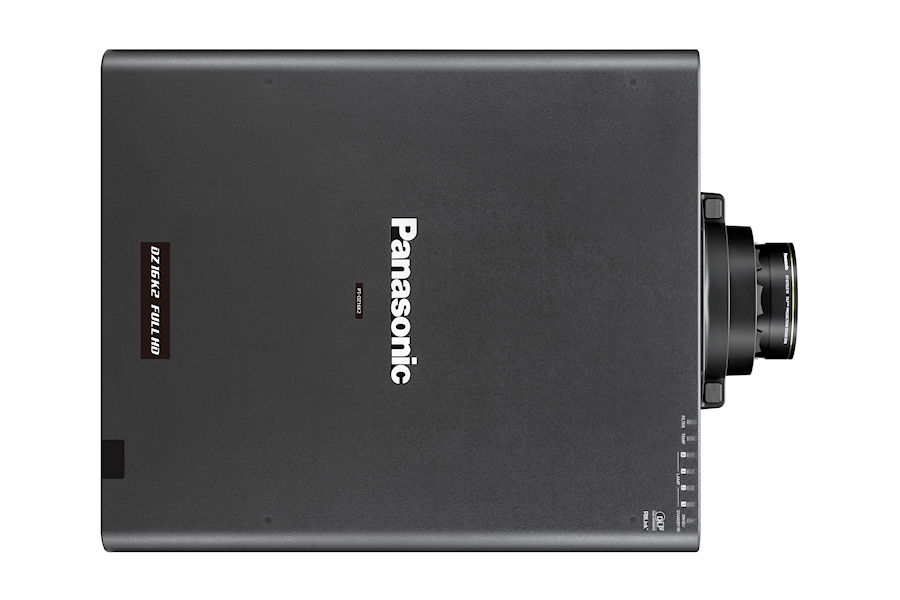

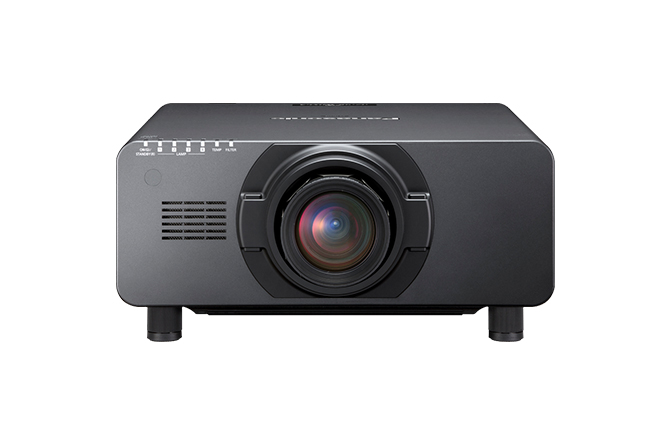

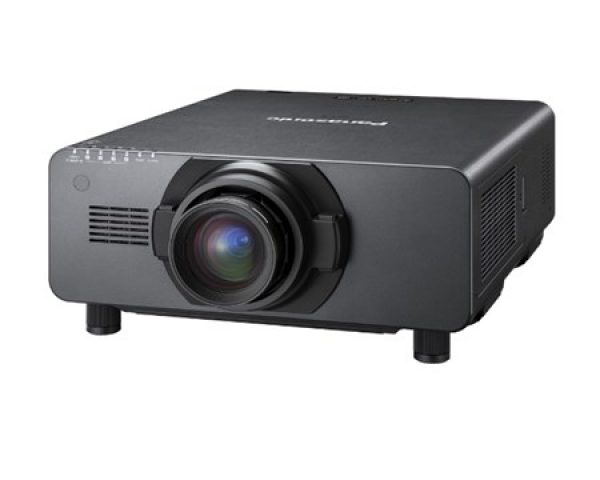

Panasonic PT-DW17K2
光度輸出: 17,000 流明;對比度 : 10000:1
解像度 : 1366 x 768 點 ( WXGA)
可接駁 LAN 網絡,方便監控;並附自動電郵警報
邊緣融合(edge blending)及多單元的亮度控制(multi-unit brightness control)
採用四個432W UHM燈泡,燈泡的更換週期更長達3000小時,並可設置為24/7運行的中繼模式
採用Eco過濾器,過濾器可使用高達12,000小時
全新液冷系統散熱,可作長時間使用
描述
Compact 20000 lumens-class Projector – PT-DZ17K2
Flagship model delivering spellbinding picture quality for events and staging
Compact 17.000lm*1Projector Delivers Stunning Picture Quality with High Frame-Rate*2
- 17.000lm*1 of Brightness with a contrast ratio of 10.000:1 from an extraordinarily compact body
- Real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction*2
- Providing a variety of advanced features, such as DIGITAL LINK connectivity and multi-screen projection
*1 17,000 lm for the PT-DW17K2, and 16,000 lm for the PT-DZ16K2, *2 Featured on the PT-DZ21K2/DS20K2/DZ16K2 only,
Benefits of PT-DZ17K2:
1. Ultra High and Detailed Images
- 17,000 lm of brightness (PT-DW17K2: 17,000 lm, PT-DZ16K2: 16,000 lm) for large venues.
- Real Motion Processor combines Frame-Creation and 120 Hz processing for fluid motion reproduction (PT-DZ21K2/DS20K2/DZ16K2).
- Next-generation Detail Clarity Processor delivers crisp and detailed image quality.
- High 10,000:1*1 contrast ratio with Dynamic Iris.
- System Daylight View 3 for enhanced color performance in bright rooms and mapping applications.
- Waveform Monitor function for easy adjustment of black/white level.
- DICOM Simulation mode for medical presentations and training*2.
2. High Reliability and Low TCO
- Extended lamp replacement cycle of 3,000 hours*3.
- Liquid cooling with highly efficient quad-lamp system reduces operational noise.
- Stable operation in ambient temperatures of up to 45 ° C*4.
- Quad-lamp system allows 24/7 operation in Lamp Relay mode.

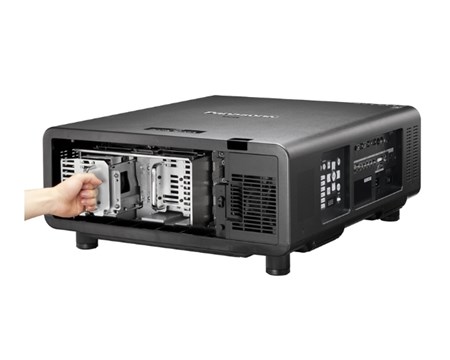

- Easy lamp replacement from rear side.

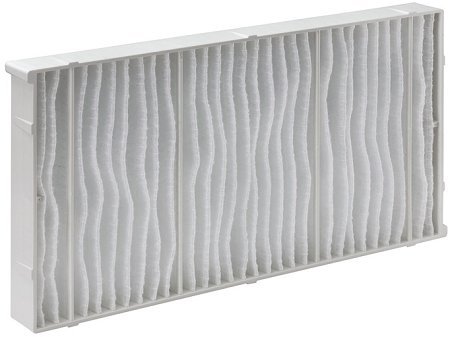

- Eco filter requires no maintenance for 12,000 hours*5.
- Durable, precision-tuned optical engine.
- High efficiency lamps reduce power consumption.
3. Versatile Installation Flexibility
|
*1 Full on/off, with Dynamic Iris set to “3”,
*2 This product is not a medical instrument. Do not use for actual medical diagnosis,
*3 Usage environment affects lamp replacement cycle,
*4 Operating temperature range is 0-40 °C (32-104 °F) when projector is used in Portrait mode or High Altitude mode for altitudes 1,400-2,700 m (4,593-8,858 ft).
Operating temperature range is 0-35 °C (32-95 °F) when projector used in Portrait mode in High Altitude mode,
*5 Usage environment affects filter replacement cycle,
*6 Installation is possible only with the terminal side facing downward. Horizontal rotation and vertical rotation are both limited to 15 °, Additionally, lamp life is reduced to 700 hours depending on usage environment.
額外資訊
Specification: Panasonic PT-DW17K2
|
一般規格 |
||
面板 |
0.85" DLPTM 底板 x 3 |
|
燈泡 |
432W UHM x4 |
|
亮度 |
17,000流明 |
|
鏡頭 |
選配 |
|
對比度 |
10,000:1 |
|
解像度 |
WXGA(1366 x 768) |
|
H-Sync/V-Sync 範圍 |
15-100 kHz / 24-120 Hz |
|
兼容視頻訊號 |
— |
|
影像大小(對角) |
70" – 600" (70"- 300" with ET-D75LE5) |
|
鏡頭移動功能 |
垂直 ±70%, 橫向 ±30%(採用ET-D75LE6時:垂直60% 和 橫向20%) |
|
梯型矯正範圍 |
垂直 ±40° (採用ET-D75LE5時:±22°, 採用ET-D75LE6時: ±28°); 橫向±15° |
|
重量 |
大約 41 kg |
|
大小(闊x高x深) |
620 x 255 x 730 mm |
|
功率 |
2060W |
|

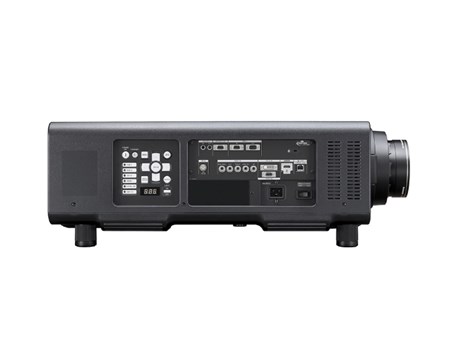

接駁終端 |
HDMI (19-pin x 1) |
|
燈泡型號 |
ET-LAD520F (4 只) |
|
可選購配件 |
ET-UK20 (Geometry Manager Pro 升級軟件) |
|
可選購鏡頭 |
變焦鏡頭 |
ET-D75LE6 (1.0-1.2:1) |
固定焦距鏡頭 |
ET-D75LE90 (0.40:1) |
|
原裝配件 |

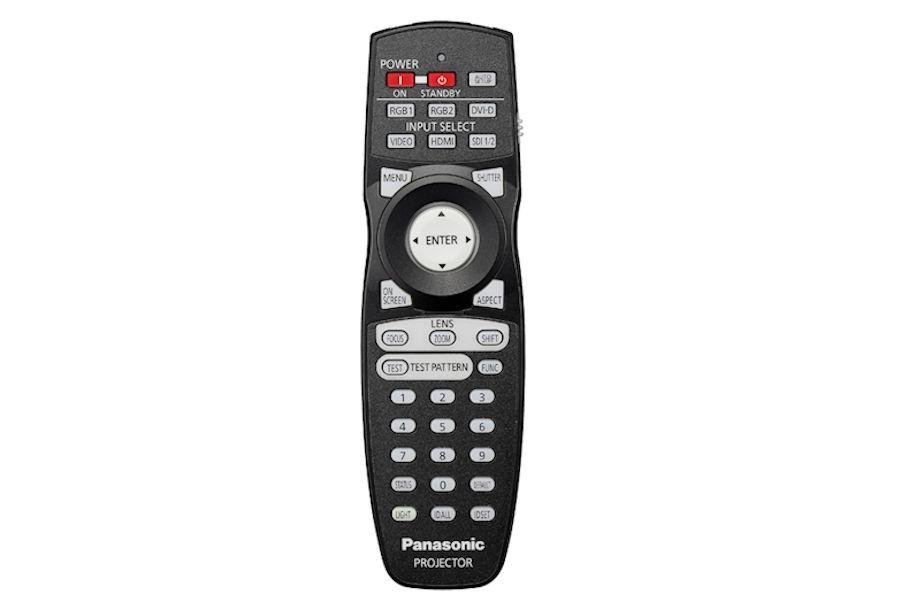

遙控器電池 |
