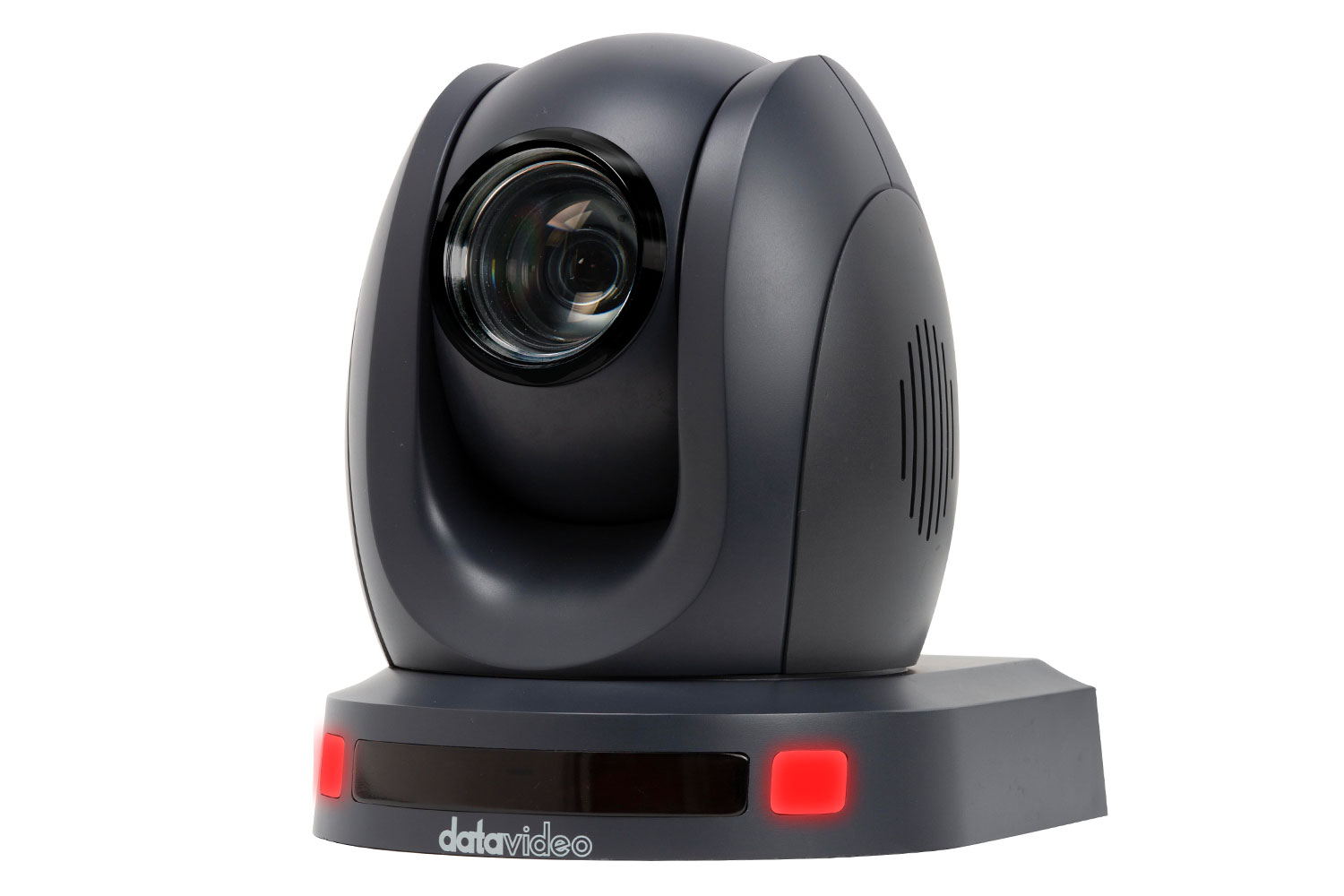

datavideo PTC-140T
描述
HDBaseT PTZ 攝影機
令人驚艷的Full HD解析度
PTC-140T支援1/2.8 吋 CMOS感光元件，1920x1080px Full HD解析度，幀率 60fps。

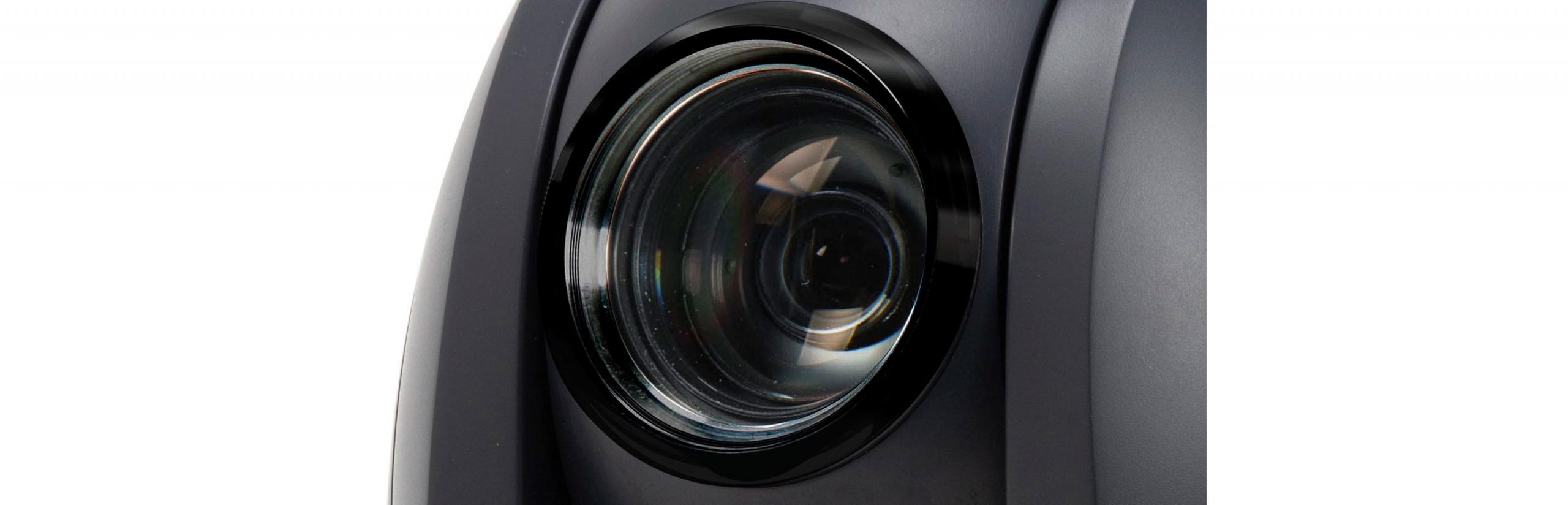

20倍光學變焦，10倍數碼變焦
PTC-140T的20倍光學變焦及10倍數碼變焦可將其安裝在近處或遠處，都能獲得絕佳的清晰畫面。
HDBaseT技術單線傳輸
搭載HDBaseT技術，僅用一條CAT6傳輸線就可以將未壓縮的影像訊號、攝影機控制訊號、電源和Tally訊號傳送到一百米之外。
先進的 2D/3D降噪技術
支援2D/3D降噪功能，即使在不太完美的照明條件下也能拍攝出清晰流暢的圖像。
H.264/H.265影像壓縮串流直播
內建直播編碼器可以於任何直播平台串流，甚至可分別2個碼流編碼並同時發送。
單指就能控制雲台影機
使用極度簡單的RMC-180, 其符合人體工程學的操縱桿和按鈕佈局，RMC-180可輕鬆設置和控制多達四個Datavideo PTC-140T攝影機，適用於任何現場影像製作。
規格
| PTC-140T HDBaseT PTZ Camera | |
|---|---|
| Video format | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset | 255 Position |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDBaseT (PoE) x1 RJ-45 x1 |
| Audio Input | Line In (IP Stream Output) |
| Tally LED | Dual color (Red, Green) |
| Filter | M52.0 x 0.75 Thread with UV Protection |
| Protocol | VISCA, DVIP |
| Remote Control Interface and Transmit Distance | RS-232
Lan (RJ-45) HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/PCM Audio compression |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
| Network Protocol | RTSP, RTMP |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | HS-1500T/HS-1600T/RMC-180/RMC-300C |
| Tripod Mount | 1/4-20 UNC |
| Options | WM-1 |
| Color | Black/White |
| Dimension (LxWxH) | 156 x 182 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
| What’s in the Box | 1 x PTC-140T Unit 1 x IR remote controller 1 x PTC-140T Thank You Card 1 x Ceiling mount bracket-A 1 x Ceiling mount bracket-B 6 x Ceiling mount bracket screw M3*4mm 1 x UV Filter 1 x DC 12V Power Adaptor 1 x Power Cord 1 x A tightrope 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable |

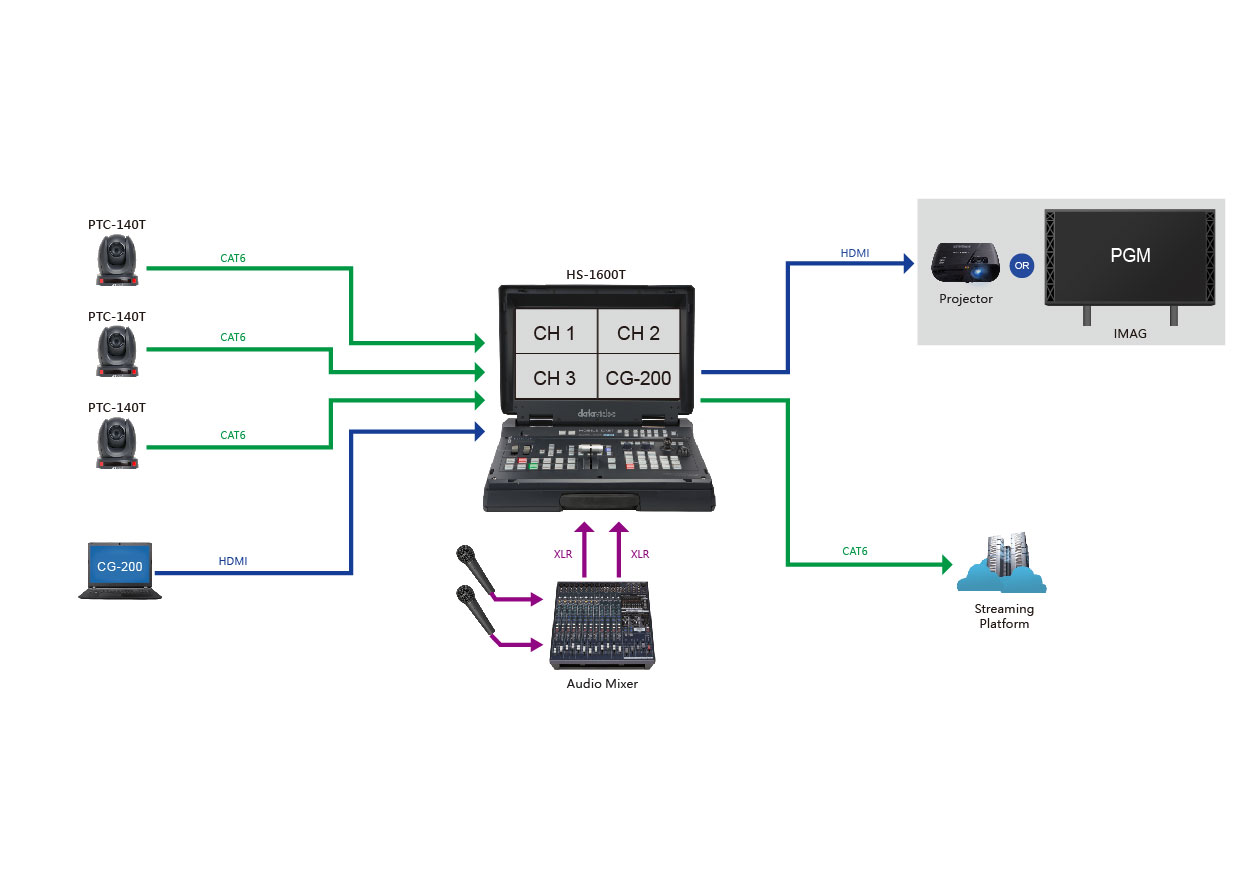

系統圖
