datavideo HS-1600T
描述

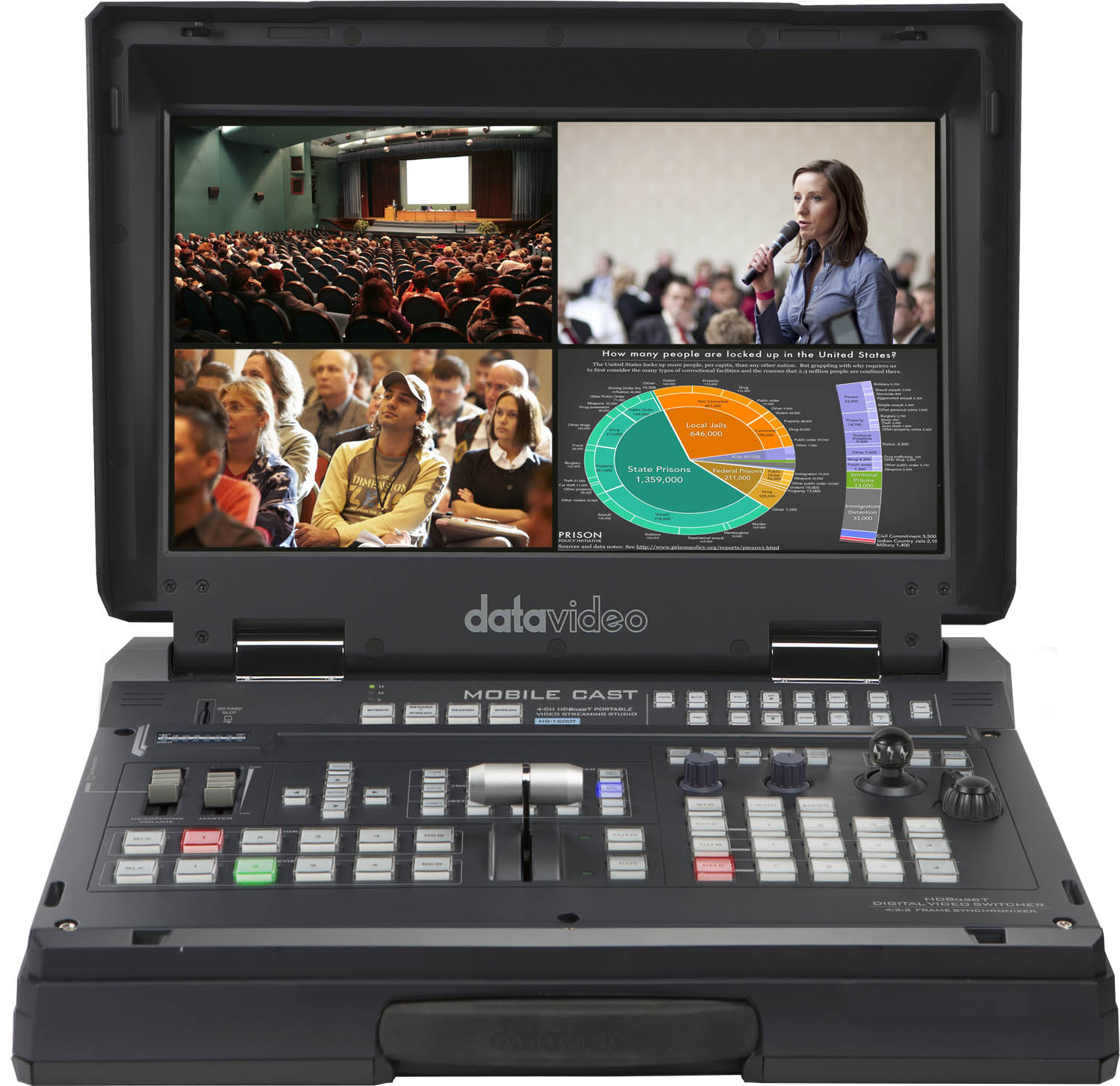

HD/SD 4通道HDBaseT手提式移動錄播導播室
專為移動導播及網路傳輸而設計
HS-1600T提供嶄新簡便的影像製作模式。 憑藉方便攜帶的外型設計和HDBaseT技術，可以更快速輕鬆的架設。內建的H.264網路直播編碼器，可以立即將立即將節目內容傳輸到多數CDN，如YouTube和Facebook。

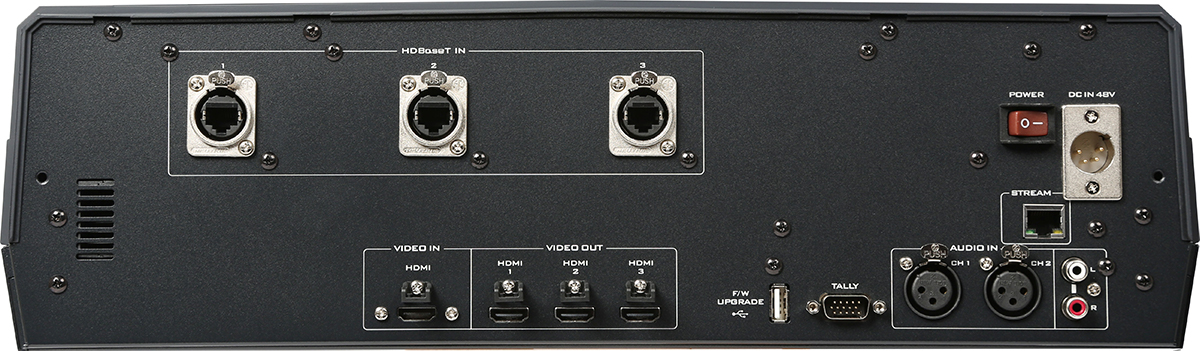

多種影像和聲音輸入/輸出選擇
4路影像輸入（RJ-45 x 3 + HDMI x 1）和3路影像輸出（HDMI x 3）。
聲音輸入：XLR模擬聲音 x 2 + RCA模擬聲音（L / R）x 2。
HDBaseT技術
單線傳輸影像、攝影機控制和供電等多種訊號，單條網路線即可供應整個錄播系統的需求，大大簡化導播系統的架設作業。

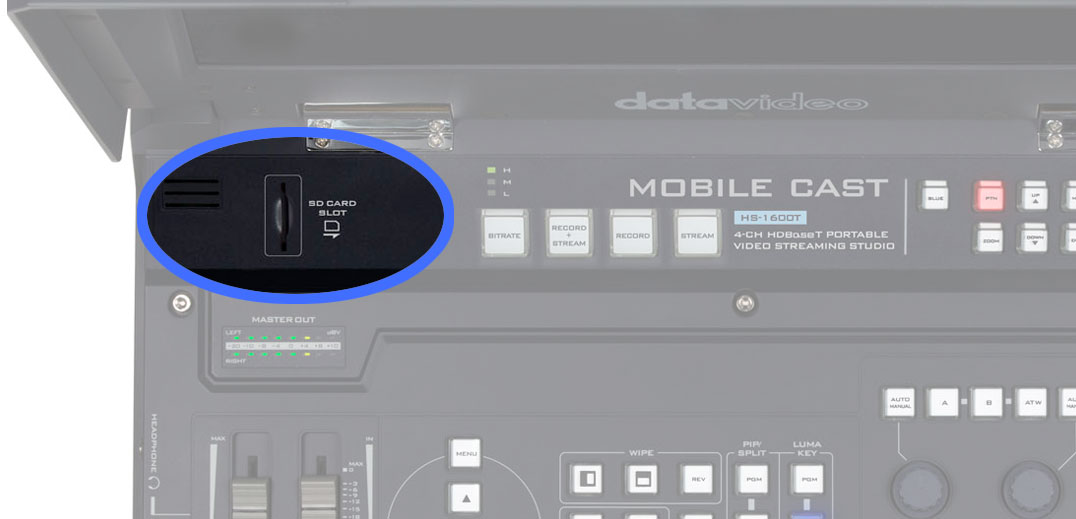

H.264影像錄製到SD卡儲存
HS-1600T內建網路錄影機， 只需插入SD卡，就可以立即將影像檔案上傳到選擇的直播平台或網站上，同時錄製高品質影像。

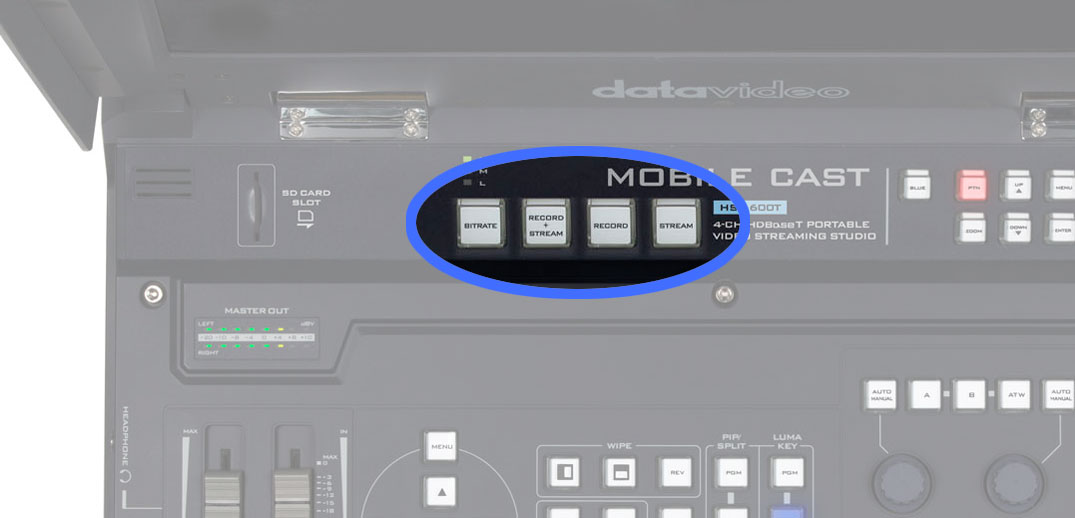

直接串流到Facebook Live、YouTube、Twitch等直播平台
內建H.264網路直播編碼器，可以立即將節目內容傳輸到Facebook、YouTube、Twitch等眾多CDN，也可以搭配Datavideo DVS-200網路直播系統將影像同時傳輸到多個平台。
內建攝影機控制
HS-1600T內建的攝影機控制，可同時操作多達3台Datavideo PTZ攝影機，有效節省時間、金錢和桌面空間。

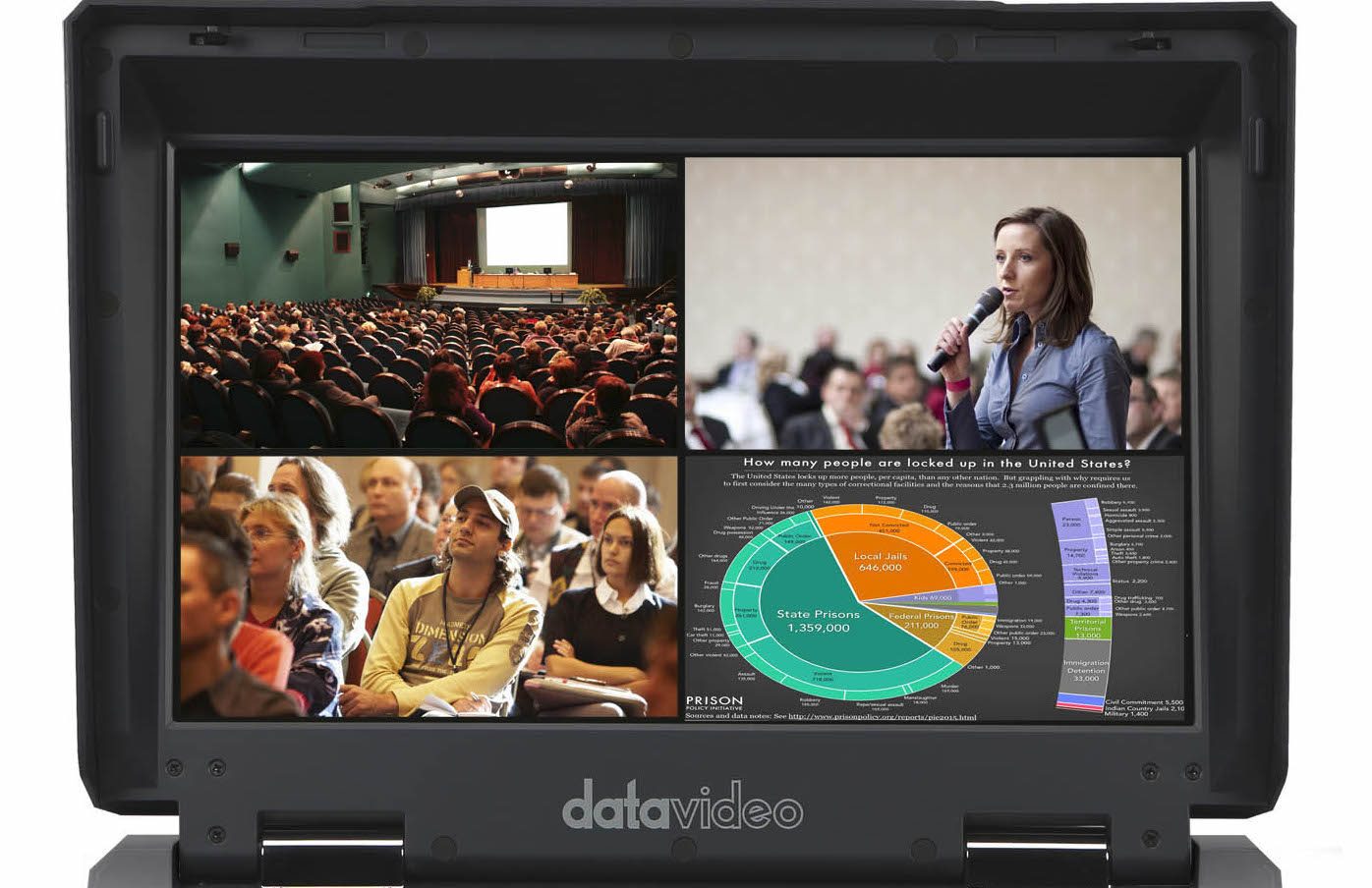

17.3” LED 液晶螢幕
內建 17.3” Full HD TFT 液晶螢幕，解析度高達1600×900像素。
規格
| HS-1600T 4-Channel HD/SD HDBaseT Portable Video Streaming Studio | |
|---|---|
| Video Standard | HD & SD |
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz |
| Video Input | 3 x HDBaseT 1 x HDMI |
| Computer Graphic Interface | 1 via HDMI |
| Down-converted Output | Yes |
| Video Output | 3 x HDMI PGM 1 x STREAM (RJ-45) |
| Audio Input | 2x Balanced XLR 1x Stereo RCA (L/R) De-embedded Digital Audio |
| Audio Output | 1x Stereo headphone |
| Embedded Audio Support | Input 2 channels, Output 2 channels |
| Audio Delay Calibration | N/A |
| A+V Switching | N/A |
| USK | 1x USK Lumakey |
| DSK | N/A |
| Picture in Picture | 1 |
| Logo Insertion | N/A |
| Built-in Audio Mixer | Yes, 4 channels |
| Built-in Monitor Display | 17.3” HD TFT LED backlit, 1920×1080 pix |
| Built-in Intercom & Tally | N/A |
| Streaming Video Encode | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encode | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
| Streaming Protocol | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish) |
| Streaming Control | Web browser UI for configuration and control Socket commands |
| Recording File System | FAT, exFAT, NTFS |
| Recording File Format | MP4 |
| Recording Setting Control | Web UI for system configuration and control |
| Special Features | Built-in camera controller |
| Dimension (LxWxH) | 455 x 355 x 134 mm |
| Weight | 17.2 Lbs (7.8 kg), Reinforce Plastic Case |
| Power | DC 48V, 4.16A |
| Operating Temp. Range | 0~40 °C |
| Options | CB-60/61/62 |
| What’s in the Box | |
| Content | 1 x HS-1600T Product 1 x AD Switch DC 48V with AC Cord 1 x Thank You Card 3 x Ethernet Cables (55in. / 140cm) [for testing only] |
| Drive Compatibility | For a list of verified compatible drives, visit the Drive Compatibility Page |

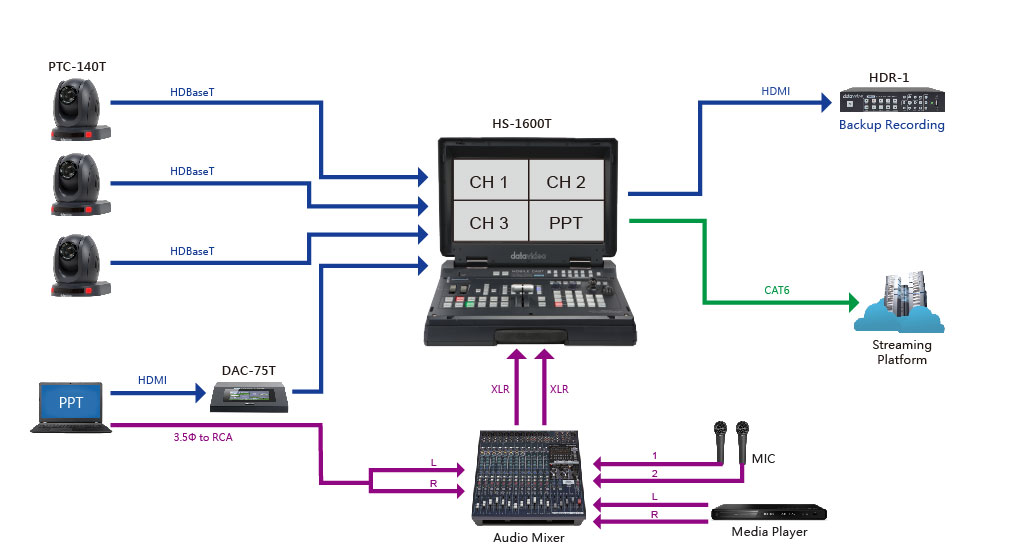

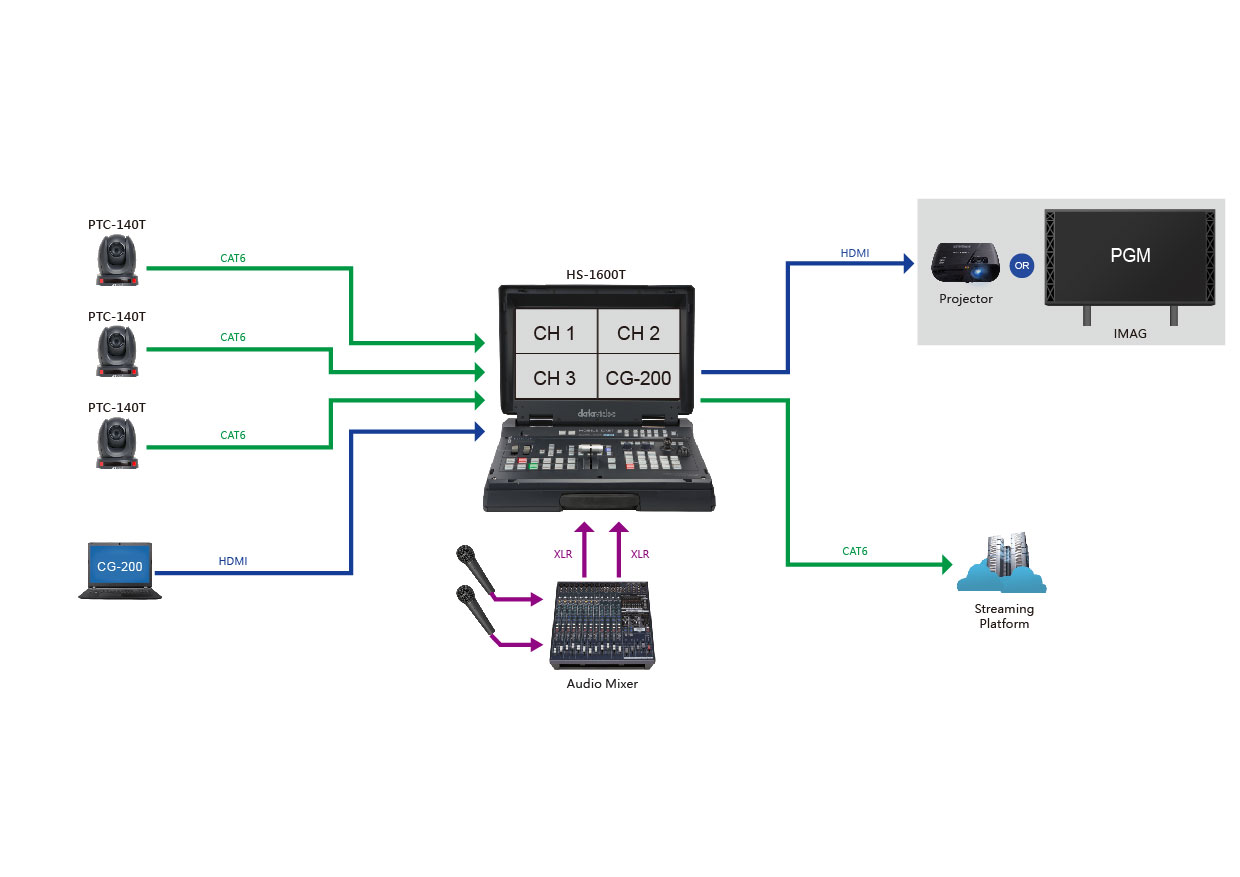

系統圖
