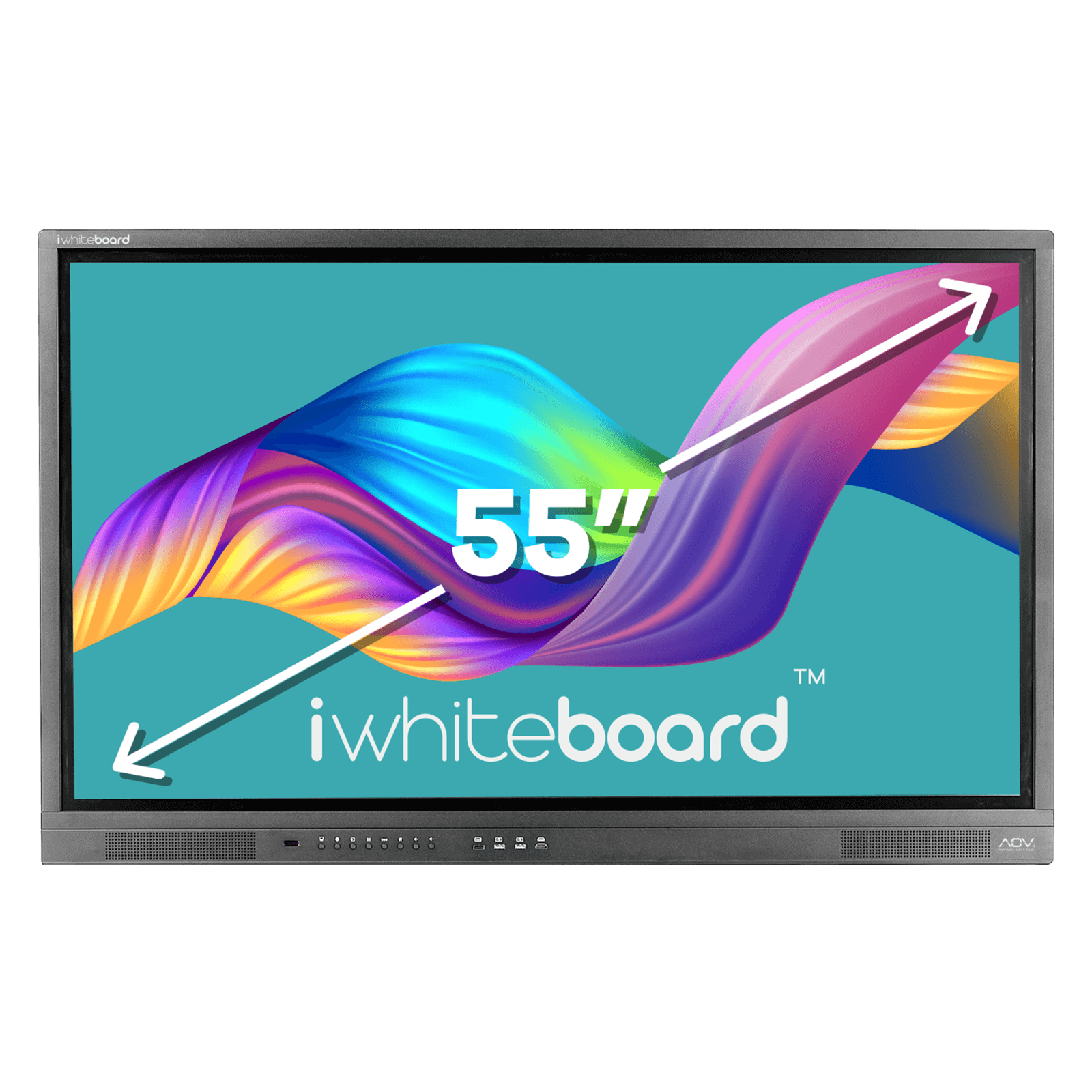

AOV IWB-AT55F 55吋
您有政府消費券？
您如果需要使用政府消費券購買本商品，請點擊圖片了解使用方法。
Interactive Touch Display 互動觸控電子白板
♡首創採用韓國LG 4K UHD Panel，性能遠超越市場上同類產品；
♡Android Windows 雙系統；
♡無線多屏分享；
♡178° 超寬視角；1600:1 超高對比度；1.07億真彩顏色；
♡超硬防眩光護目玻璃外屏.
♡預載WPS Office商業程式，強大功能盡情發揮。
♡用途廣範適合教育、商業、廣告、醫療…….
名稱：IWB_Guide_EN.pdf
IWB_Guide_EN.pdf
描述
互動觸控電子白板
使用智能技術簡化工作和生活，為您的企業增添成功的全部潛力
•40個觸控點
•4K UHD（3840 * 2160）分辨率
•LG 4K LED面板
•10.7億種顏色
•1600：1對比度
•178°可視角度
•4毫米厚的Mohs-7級防眩玻璃
•支持Windows；蘋果電腦; Linux; Chrome OS
靈活，流暢和準確的互動
支持40點多點觸摸，為演示和教學活動創造了一個互動的環境。
超高清
交互式平板顯示器在所有型號上均支持HDR。3840 x 2160分辨率增強了圖片的動態範圍。
規格表:
| 名稱 | IWB-AT55F |
| 顯示規格 | |
| 對角線顯示尺寸 | 55″ LED Backlight |
| 面板 | LG4K LED Panel |
| 有效面積（mm） | 1209(H)x680(V) |
| 解析度 | 3840*2160 |
| 像素間距 | 0.372mm x 0.372mm |
| LED背光 | Direct Type LED |
| 長寬比 | 16:09 |
| 比率 | 1600:01:00 |
| 色彩 | 1.07 Billion Colors |
| 明亮度 | 350cd/m2 |
| 可視角度 | 178° |
| 屏幕表面 | 4mm Thickness Mohs-7 level Anti-Glare Glass |
| 觸控系統 | |
| 技術 | IR Touch |
| HID支持 | Yes |
| 支持觸控 | 40個接觸點 |
| 書寫工具 | 筆或手指 |
| 響應時間 | 7ms |
| 光標速度 | 125Points/s |
| 精確 | 3mm |
| 連接性 | |
| 前面 | HDMI IN 1-Line, USB 2-Line, USB For Touch 1-Line |
RS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT1- Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT 1-Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT1- Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-Lline | |
| Outputs (Speakers) | 15W*2 |
| 操作系統 | |
| Android 系統 | 6 |
| CPU | Cortex A53*4 1.5GHz |
| GPU | T720MP2 |
| RAM | 2G |
| ROM | 32G |
| 兼容 | Windows； Mac； Linux; Chrome OS |
| 集成Windows Standard OPS 電腦可選） | |
| OPS電腦插槽 | Yes |
| 電源 | |
| 輸入電壓 | 100-240V AC |
| 電力需求 | Yes |
| 耗電量（待機） | <0.5W |
| 能量消耗 | Maximun< 180W Eco<75W |
| 物理規格 | |
| 凈重 (kg±2) | 35 |
| 毛重(kg±2) | 44 |
| 尺寸(W*D*H) mm | 1291*102*808 |
| VESA(mm) | 400*400 |
| 配件 | |
| Software And Manuel CD, IWB Pen Without Ink 2pcs, Remote Control, 1.5m Power Cable, 1.5m HDMI Cable, 3m USB Extension Coble, 1.5m HDMI Cable, Wall Bracket | |
額外資訊
Specification: AOV IWB-AT55F 55吋
| Projectors | ||
|---|---|---|
|
||
| Monitors | ||
|
||
| Model | IWB-AT55F | IWB-AT65F | IWB-AT75F | IWB-AT86F |
|---|---|---|---|---|
 |
 |
 |
 |
|
| Display Specification | ||||
| Diagonal Display Size | 55″ LED Backlight | 65″ LED Backlight | 75″LED Backlight | 86″LED Backlight |
| Panel | LG4K LED Panel | LG 4K LED Panel | LG4K LED Panel | LG 4K LED Panel |
| Active Area (mm) | 1209(H)x680(V) | 1428.48 (H) x 803.52 (V) | 1650.24(H)x928.26(V) | 1913.0(H) x 1084.0 (V) |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 |
| Pixel Pitch | 0.372mm x 0.372mm | 0.372mm x 0.372mm | 0.429 mm x 0.429 mm | 0.429 mm x 0.429 mm |
| Bock Light | Direct Type LED | Direct Type LED | Direct Type LED | Direct Type LED |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Controst Ratio | 1600:1 | 1600:1 | 1600:1 | 1600:1 |
| Colors | 1.07 Billion Colors | 1.07 Billion Colors | 1.07 Billion Colors | 1.07 Billion Colors |
| Brigh tness | 350cd/m2 | 350cd/m2 | 350cd/m | 350cd/m2 |
| Viewing Angle | 178° | 178° | 178° | 178° |
| Screen Surface | 4mm Thickness Mohs-7 level Anti-Glare Glass | |||
| Touch System | ||||
| Technology | IR Touch | IR Touch | IR Touch | IR Touch |
| HID Support | Yes | Yes | Yes | Yes |
| Touch Supported | 40 Touch Points | 40 Touch Points | 40 Touch Points | 40 Touch Points |
| Writing Tools | Pen Or Finger | Pen Or Finger | Pen Or Finger | Pen Or Finger |
| Response Time | 7ms | 7ms | 7ms | 7ms |
| Cursor Speed | 125Points/s | 125Points/s | 125Points/s | 125Points/s |
| Precision | 3mm | 3mm | 3mm | 3mm |
| Connectivity | ||||
| Front Side | HDMI IN 1-Line, USB 2-Line, USB For Touch 1-Line | |||
| RS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT1- Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT 1-Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-LineRS232 1-Line, MIC IN 1-Line, TF IN 1-Line, USB 2.0 Media 2-Line, HDMI IN – 3 Lines(1 Line For OPS PC), SPDIF OUT 1-Line, AV IN 1-Line, AV OUT1- Line, EARPHONE 1-Line, VGA IN 1-Line, AUDIO IN 1-Line, RJ45 LAN 1 Line, YPBPR 1-Lline | ||||
| Outputs (Speakers) | 15W*2 | |||
| Operating System | ||||
| Android Version | 6.0 | |||
| CPU | Cortex A53*4 1.5GHz | |||
| GPU | T720MP2 | |||
| RAM | 2G | |||
| ROM | 32G | |||
| Compliant With | Windows； Mac； Linux; Chrome OS | |||
| Integrated Windows Standard OPS PCCOptional) | ||||
| Windows OPS PC Slot | Yes | |||
| Electrical | ||||
| Input Voltage | 100-240V AC | 100-240V AC | 100-240V AC | 100-240V AC |
| Power Requirement | Yes | Yes | Yes | Yes |
| Power Consumption (Standby) | <0.5W | <0.5W | <0.5W | <0.5W |
| Power Consumption | Maximun< 180W Eco<75W | Maximun< 220W Eco<75W | Maximun< 300W Eco<75W | Maximun< 360W Eco<75W |
| Physical Specifications | ||||
| Net Weight (kg±2) | 35 | 45 | 60 | 75 |
| Gross Weight (kg±2) | 44 | 58 | 80 | 105 |
| Dimension(W*D*H) mm | 1291*102*808 | 1522*107*944 | 1744*107*1069 | 1989*107*1207 |
| VESA(mm) | 400*400 | 600*400 | 600*400 | 800*600 |
| Accessories | ||||
| Software And Manuel CD, IWB Pen Without Ink 2pcs, Remote Control, 1.5m Power Cable, 1.5m HDMI Cable, 3m USB Extension Coble, 1.5m HDMI Cable, Wall Bracket | ||||
