H27 PRO Series

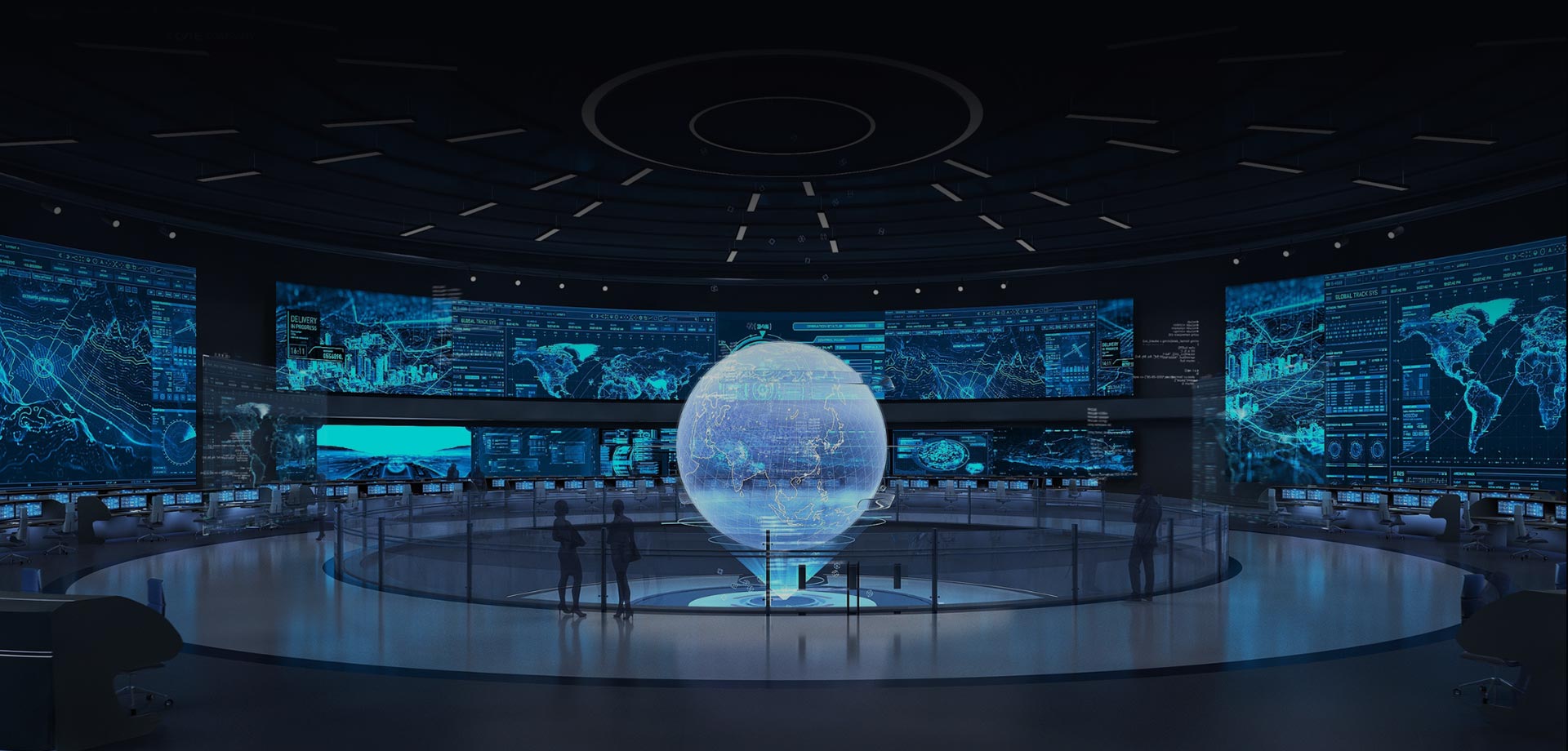

Born for Indoor Large-sized Display Application
HD Display Effect, Perfect Watching Experience
• 16:9 Standard Ratio
• High Gray Scale Level under Low Brightness
• High Gray Scale Level under Low Brightness
Cabinet applies 16:9 standard ratio design, and can provide HD and uniform display effect both under static image mode and high-speed dynamic image mode.
HD Display Effect, Perfect Watching Experience
• 16:9 Standard Ratio
• High Gray Scale Level under Low Brightness
• High Gray Scale Level under Low Brightness
Cabinet applies 16:9 standard ratio design, and can provide HD and uniform display effect both under static image mode and high-speed dynamic image mode.

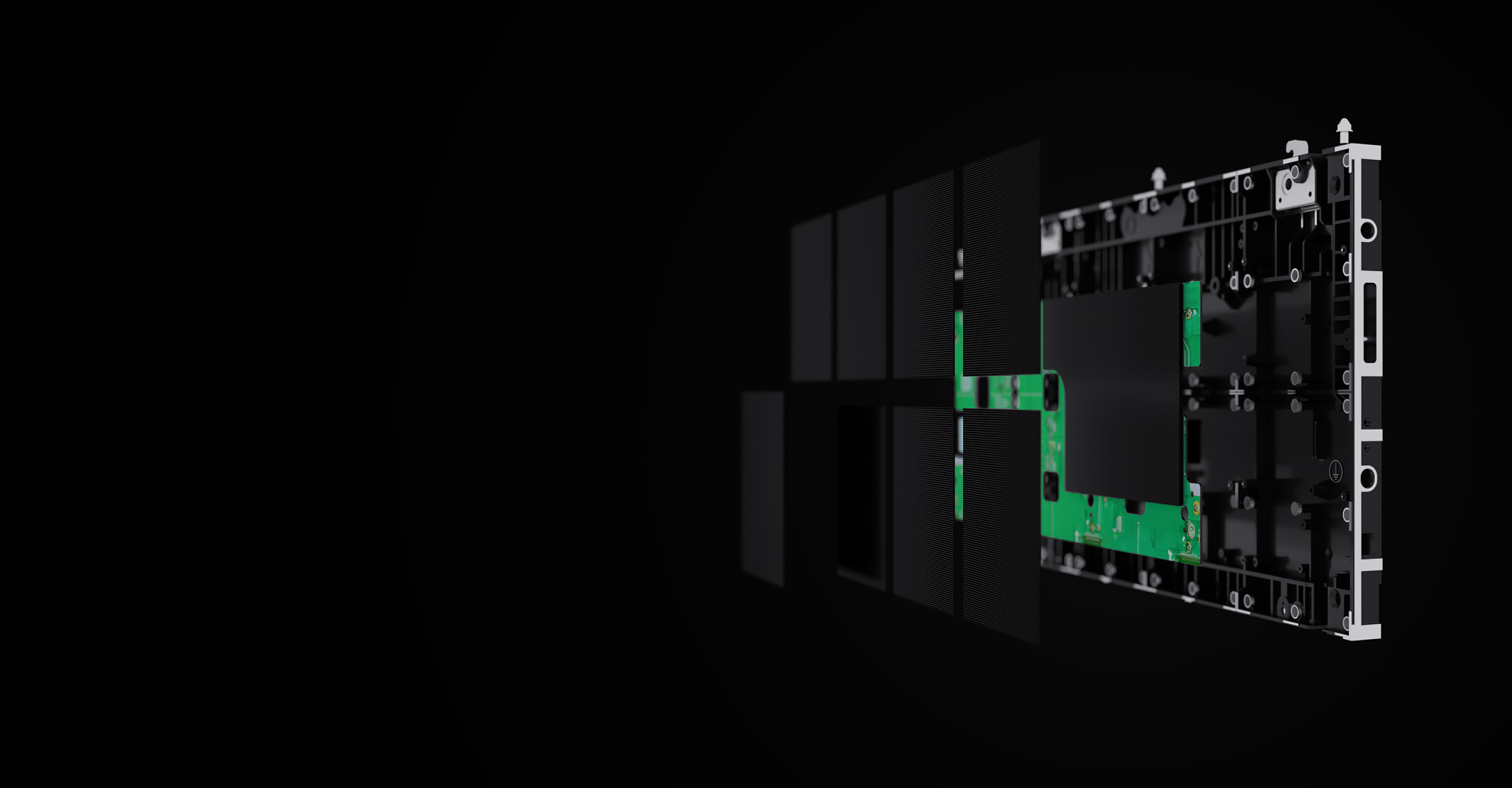

Integrated Design, Stable & Reliable Product Quality
• 3-in-1 & 5-in-1 Design
• RoHS
• EMC
• RoHS
• EMC
Power supply, receiving card and hub board are integrated on one board without wiring, ensuring stable performance. The series meets the RoHS environmental protection requirements of both China and EU, and also has passed EMC test. 5-in-1 board with power and data redundancy is optiona
Integrated Design, Stable & Reliable Product Quality
• 3-in-1 & 5-in-1 Design
• RoHS
• EMC
• RoHS
• EMC
Power supply, receiving card and hub board are integrated on one board without wiring, ensuring stable performance. The series meets the RoHS environmental protection requirements of both China and EU, and also has passed EMC test. 5-in-1 board with power and data redundancy is optiona

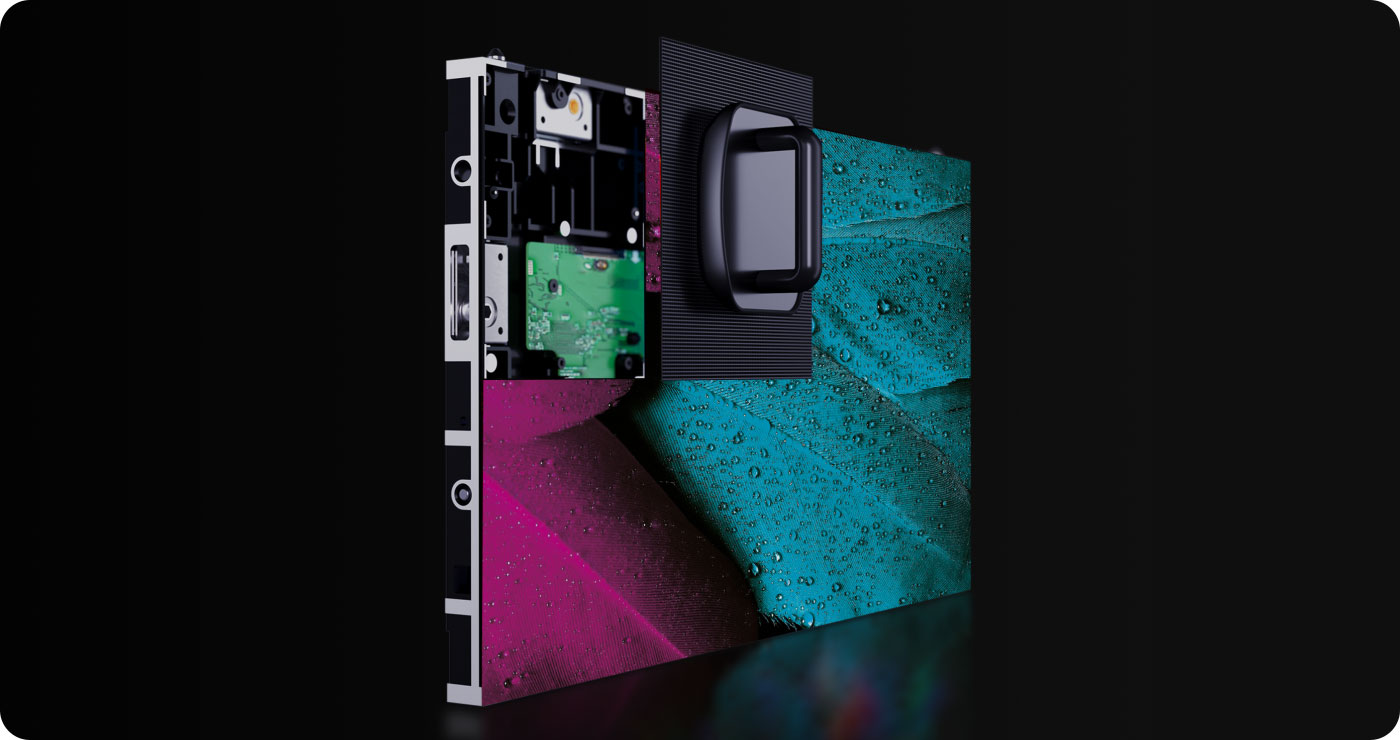

Slim & Light-weight Structure, Space-saving Installation
• Slim Screen • Noiseless Design • Fully Front Access Cabinet adopts noiseless design without fan built inside, and features high-precision processing and good heat dissipation; fully front-access installation and maintenance can save space for onsite application.
High Efficiency Energy Saving & Real Time Monitoring
• Lower Power Consumption
• Lower Screen temperature
• Real-time Monitoring
• Lower Screen temperature
• Real-time Monitoring
Branch-circuit design and dynamic energy-saving tech enables eco-friendly and power-saving operation.Open circuit detection and protection function can conduct real-time monitoring and eliminate the“ Cross line ” phenomenon caused by open circuit point, ensuring dual-protection for screen operation.
High Efficiency Energy Saving & Real Time Monitoring
• Lower Power Consumption
• Lower Screen temperature
• Real-time Monitoring
• Lower Screen temperature
• Real-time Monitoring
Branch-circuit design and dynamic energy-saving tech enables eco-friendly and power-saving operation.Open circuit detection and protection function can conduct real-time monitoring and eliminate the“ Cross line ” phenomenon caused by open circuit point, ensuring dual-protection for screen operation.
Legally compliant, safe and eco-friendly
• V-0 Flame retardant
• RoHS compliant
• RoHS compliant
Lead-free souldering，eco-friendly，whole device complies with ROHS 100% CCC、CE、FCC、ETL、CB certified

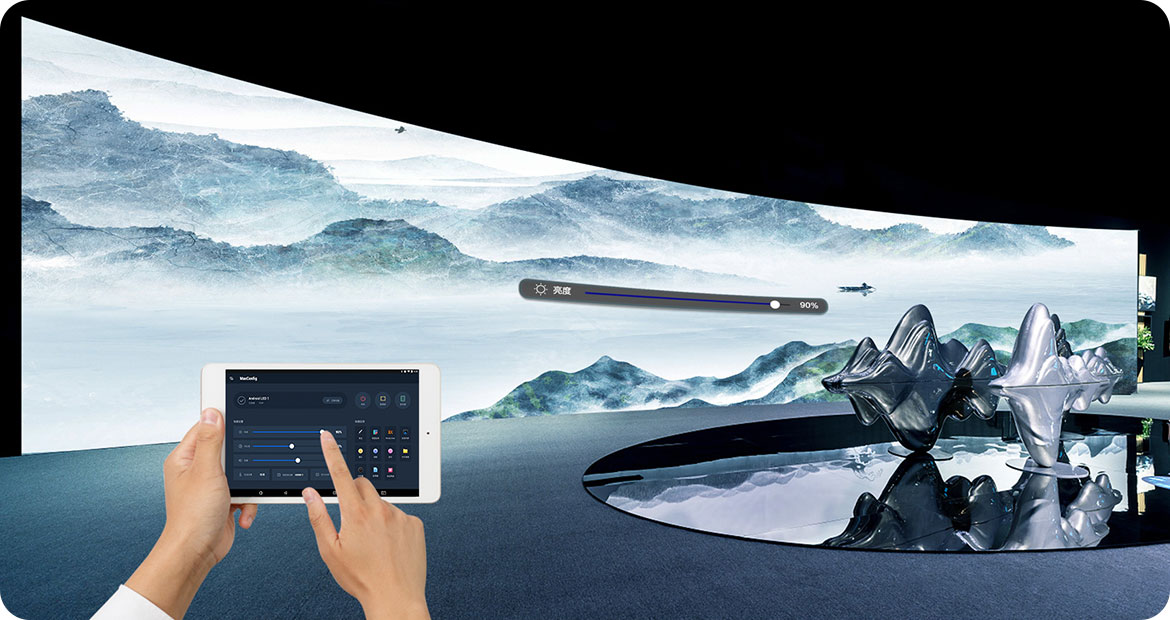

Application Scenarios.
Product Parameters
| Mode | FP-I 1270 | FP-I 1588 | FP-I 1910 | FP-I 2542 |
| Pixel Pitch (mm) | 1.2 | 1.5 | 1.9 | 2.5 |
| Resolution(dots) | 480*270 | 384*216 | 320*180 | 240*135 |
