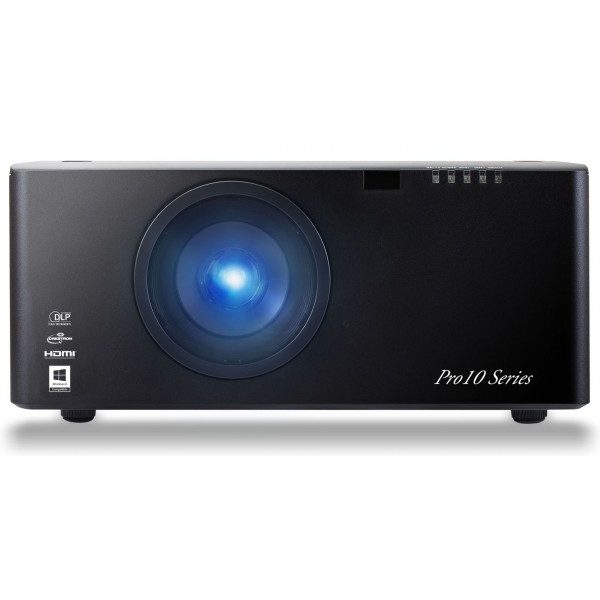

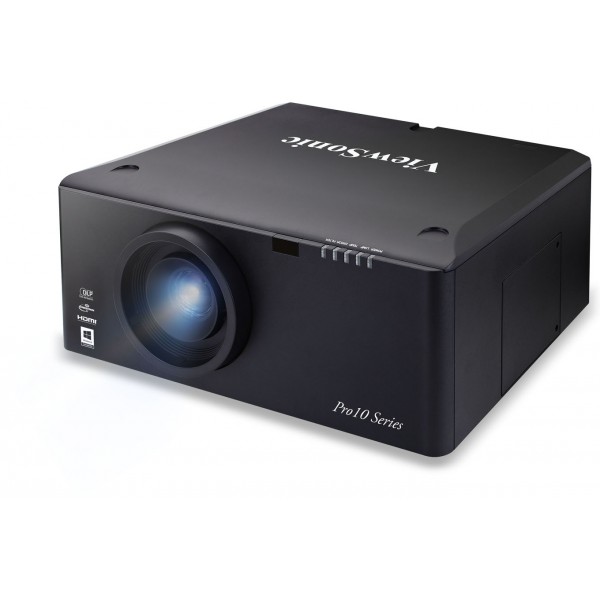

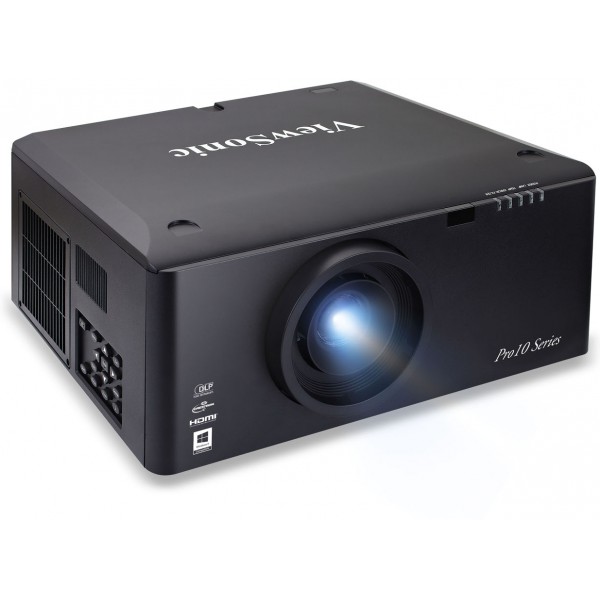

ViewSonic Pro10100

High-brightness 6,000lm Installation Projector for Large Indoor Venues

Designed to meet the needs of a large range of venues, the ViewSonic Pro10100 installation projector provides an ultra-high 6,000 lumens of brightness to easily accommodate theaters, museums, auditoriums, lecture halls, houses of worship and other large commercial venues. The Pro10100 ensures that your projected images will stay stunningly crystal-clear from greater distances without quality decay.

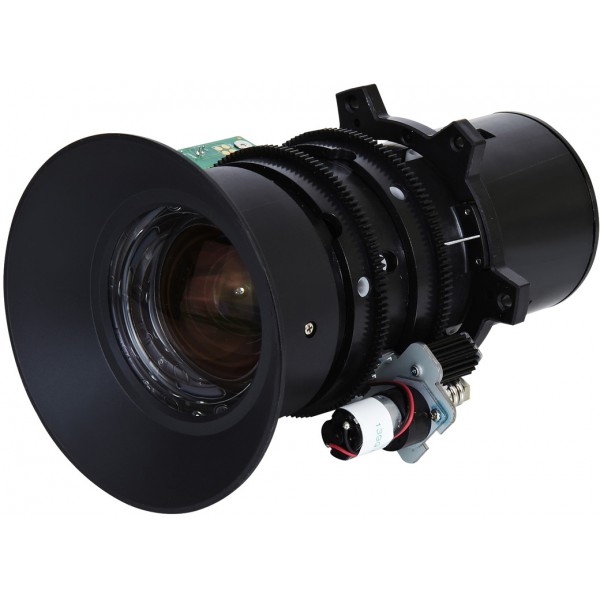

Interchangeable lenses offer greater flexibility

Available with optional interchangeable lenses, ViewSonic’s high-brightness professional projector allows users to choose the most suitable lens for their large-venue applications. Multiple lens options are useful for a variety of venue sizes, screen sizes, and screen distances. Plus, this feature provides for more flexible installation, allowing existing projector mounts to be used to reduce installation costs.

Higher Lumen by Stacking Projectors Easily

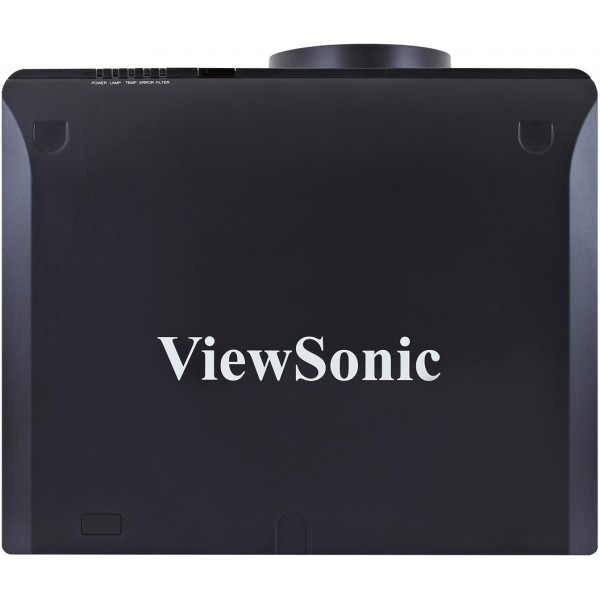

For large venue projection, the stacking feature allows users to project brighter images by gathering all of your Pro10100 projectors with accumulated lumens. The top stacking positioning holes enable an effortless and simple setup that only put one machine onto another without any accessory or knowledge.

SuperColor™ Technology

ViewSonic^® SuperColor™ technology, equipped with an exclusive colour wheel design and dynamic lamp control capabilities, delivers the best in superior colour reproduction and detail, right to your very eyes. Embrace the difference, share life’s true colours, and leave a greater impact on your audience with an unforgettable experience with ViewSonic^® SuperColor™ technology.

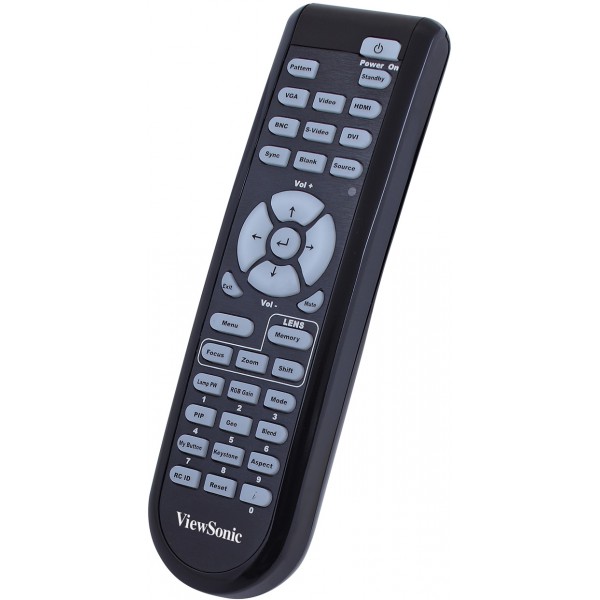

Convenient remote-controlled power lens

Convenient and precise lens adjustment is guaranteed with this high-brightness professional projector’s remote-controlled power lens. By using the remote control, it’s easy to quickly focus on images, and zoom in and zoom out, with pinpoint accuracy. This feature means very clear imaging can be easily achieved in very large venues.

Powered lens shift adjustment for impeccable images

Equipped with a power lens-shift adjustment feature, ViewSonic’s high-brightness professional projector adjusts images to match their original aspect ratio and centers them perfectly. It also allows vertical and horizontal adjustment to correct tilted or distorted images caused by uneven surfaces or mountings. Your images will be perfectly aligned within the desired viewing area every time.

Precise DICOM SIM technology

ViewSonic’s high-brightness professional projector uses the latest DICOM SIM technology to precisely display multiple high-resolution DICOM-format medical images, including X-rays, sonograms and nuclear magnetic resonance (NMR) images. Whether it is used in hospitals and medical centers, or for academic conferences, the projector always delivers the most precise DICOM images.

5-BNC Connector Support for a higher-quality image

With a 5-BNC connector design, ViewSonic’s high-brightness professional projector is capable of projecting pixel-perfect images to audiences in large venues such as auditoriums, shopping malls, museums and more. The 5-BNC connector is designed for analog and Serial Digital Interface video signals (R, G, B, vertical sync and horizontal sync signals), and effectively increases signal accuracy and image quality by decreasing signal latency during data transmission.

Perfect edge-blending of images on large screens

Perfect for high-end applications and large screens, ViewSonic’s high-brightness professional projector boasts edge-blending and brightness-adjustment features. By matching colours and adjusting brightnesses, the edges of different images are seamlessly combined and can no longer be seen – no matter how large the projection screen surface.

5-mode warping and geometric adjustment

ViewSonic’s high-brightness professional projectors come equipped with a 5-mode warping and geometric adjustment feature. This feature corrects distorted images caused by 4-corner, curve, pincushion, barrel and rotation projection surfaces. Plus, bi-directional (vertical /horizontal) auto keystone correction allows the projector to project images perfectly, making it adaptable to any situation.

Motorized Projection Screen /12V Trigger Output

ViewSonic’s high-brightness professional projector includes an integrated 12V trigger output feature that allows it to be connected via 12V cable to a motorized projection screen. Efficient and convenient, the projection screen lowers when the projector is turned on, and rises when the projector is powered off. Best of all, you won’t need a second remote control – it’s automatic!

Efficient network management

ViewSonic’s high-brightness professional projector features network connectivity and comes with Crestron RoomView® resource management software installed. This software lets users control their networked projectors from a computer via wired or wireless local area network, providing complete control over an organization’s combined audio-visual resources.

PIP/POP Functionality Projects more than One Video Source

With Picture in Picture (PIP) and Picture over Picture (POP) viewing modes you can share two videos or images from different sources. Multi-source projecting makes images and videos in presentations more impressive and effective.

Dual-Layer, Dust-Free Filter and Special Heat-Dissipation Technology Supports 24/7 Operation

A dual-layer dust-free filter system effectively prevents dust from entering and affecting the system, and lowers the heat generated by the device. This advanced technology prolongs the projector’s durability and lifespan, ultimately cutting down on the cost of maintaining 24/7 operations.

Designed for 360-degree Installation

The Pro10100 is designed to accommodate a wide range of operating environments and installation applications. 360-degree installation means it can be installed both vertically and horizontally. Combined with powered lens-shift, edge-blending and PIP/POP features, this device decreases spatial limitations and provides improved projection flexibility for more stunning and creative audio-visual presentations.

Convenient and useful setting memory function

Equipped with setting memory function, ViewSonic’s high-brightness professional installation projector save your time perfectly. By using this function, it’s easy to quickly set your projector to fit your usage scenario like boardroom and classroom, especially when you play content with edge-blending function. Both for educational and commercial usage, this feature make easier setting possible.

App- ProjectorDistance App for Quick Projector Position Preview

No matter small meeting room, middle classroom, or big hall, ProjectorDistance tells you how far the projector should be placed according to the room ceiling height, projector’s screen size, aspect ratio, etc. Just input several figures, the result will be displayed in the simulation scenarios with measurement. You can use finger to adjust the distance instantly.

App- The world’s pioneer ProjectorExpert APP
Cover all completed projector applications at once!

ProjectorExpert APP contains all ViewSonic projector product information, projection distance measurement, ViewSync wireless introduction, industrial application case study, news messages, etc.. It integrates all projector related information，and can be as general users’ perfect assistant when choosing or installing projectors, providing users’ a platform with convenient and sufficient information，as well as to become dealers, distributors, system integrators’ portable tool which can check instantly.

Perfect image brightness adjustment by multi-level lamp voltage setting feature

ViewSonic’s high-brightness professional installation projector boasts multi-level lamp voltage setting feature. Setting brightness correctly through level-up or level-down of lamp voltage, the overlapping image area become seamlessly when edge-blending function enabled – no matter how large the projection screen surface.

技術規格

• DISPLAYType : TI DMD 0.7″ XGA 2xLVDS Type A DMD, Dark chip 3
  Resolution : 1024×768
  Lens : Optical focus 1.25x / Digital zoom 1.28x /Lens shift 1.9x
  Size : 50 – 300 inch
  Throw Distance : 1.3m – 9.6m
  Lamp : 370 Watt
  Brightness : 6000 ANSI Lumens
  Contrast Ratio : 4,400:1 (DCR)
  Keystone Correction : Manual: +/-20°
  Aspect Ratio : 4:3
  Lens Shift : Horizontal : +/-15% (min) Vertical: +/-50% (min) (Dim corner larger than 50%)
  Color Depth : 30 bits, 1.07B Color (10+10+10)
• AUDIOSpeakers : 10-watt (x1)
• INPUT SIGNALVideo : NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N,60) SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p 720p (50/60Hz) , 1080i (50/60Hz), 1080p(24/25/30/50/60Hz)
  Frequency : Fh: 15-100KHz; Fv: 48-100Hz

• COMPATIBILITYPC : VGA to WSXGA+ (1680×1050)
  Mac : Up to 1152×870 (may require MAC adaptor)

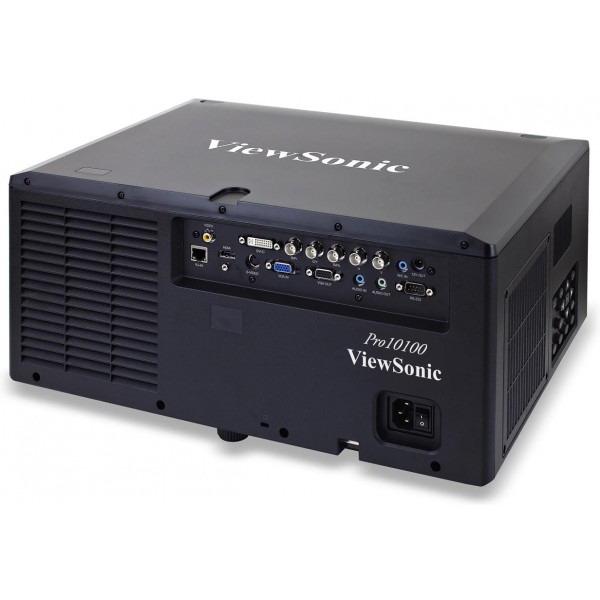

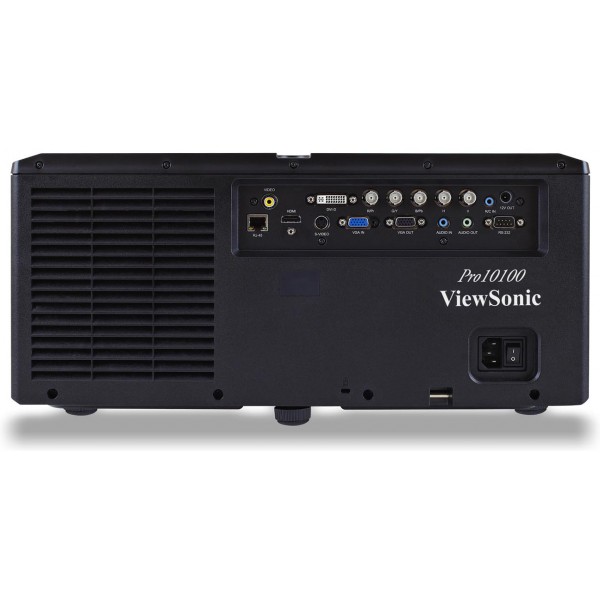

• CONNECTORRGB Input : 15-pin mini D-sub x 1
  RGB Output : 15-pin mini D-sub x 1
  Composite Video : BNC(RGBHV, Y/Pb/Pr, Y/Cb/Cr) x 1
  S Video : 4-pin mini-DIN
  Component Video : RCA Type x 1
  Digital : HDMI x 1
  Audio : Input: 3.5mm Mini-stereo Jack x 1; Output: 3.5mm Mini-stereo Jack x 1
  Control : RS232(DB-9) x 1
  Network : RJ45x1
  Trigger Out : 12 V Triggerx1
• POWERVoltage : 100~240Vac 50/60Hz (Auto Switching)
  Consumption : < 515W +/- 10%.@AC110V
• CONTROLSBasic : Power, arrow keys, menu, exit, sync, enter, source, shift, focus, zoom, info
  OSD :Picture, Screen, Setting, Options (See user guide for full OSD functionality)
• OPERATING CONDITIONSTemperature : 41°~104°F (5°~40°C)
  Humidity : 10%~90% Non-Condensation
• DIMENSIONSPhysical : 398.9mm (width) x 212mm (height) x 452.9mm (depth)
• WEIGHTNet : 13.9 kg
• REGULATIONSUL/ cUL/ FDA(CDRH report)/CB/FCC/TUV/GS + PAH / TUV (IEC60825-1)/CE EMC Report / CCC / PSB (Singapore)/ NOM (Mexico)/Energy (Mexico)/GOST R (Russia)/C-tick (Aus/NZ)
• PACKAGE CONTENTSPro10100 projector (without lens), power cable, VGA cable, remote control with batteries,
  Quick Start Guide, ViewSonic Wizard CD (with User Guide)
