The pixel pitch specification of LED displays is usually denoted by “P” followed by a number, such as P1.2, P2, P4, etc. The “P” stands for Pixel Pitch, and the number indicates the distance between two adjacent pixels in millimeters (mm).

Here’s a detailed explanation:

• P1.2: Indicates a pixel pitch of 1.2 millimeters.
• P2: Indicates a pixel pitch of 2 millimeters.
• P4: Indicates a pixel pitch of 4 millimeters.

The smaller the pixel pitch, the more pixels per unit area, resulting in a higher resolution display suitable for close-up viewing. Conversely, a larger pixel pitch means the display is better suited for long-distance viewing. Choosing the appropriate pixel pitch requires considering the application scenario, viewing distance, and display needs.

Differences:

1. Brightness:

• Indoor LED Displays:
  • Lower brightness levels since they are designed for controlled lighting environments. Typical brightness ranges from 800 to 1500 nits.
• Outdoor LED Displays:
  • Higher brightness levels to ensure visibility in direct sunlight and varying weather conditions. Typical brightness ranges from 4500 to 7000 nits or higher.

2. Weather Resistance:

• Indoor LED Displays:
  • Not designed to withstand harsh weather conditions. They lack waterproofing and other protective features.
• Outdoor LED Displays:
  • Built to be weather-resistant with waterproof and dustproof enclosures (usually rated IP65 or higher) to endure rain, wind, and dust.

3. Pixel Pitch:

• Indoor LED Displays:
  • Smaller pixel pitch for higher resolution and closer viewing distances. Pixel pitch can range from 0.9mm to 4mm.
• Outdoor LED Displays:
  • Larger pixel pitch suitable for longer viewing distances. Pixel pitch typically ranges from 4mm to 20mm.

4. Viewing Distance:

• Indoor LED Displays:
  • Designed for closer viewing distances, typically a few meters away.
• Outdoor LED Displays:
  • Designed for longer viewing distances, often tens of meters away.

5. Installation:

• Indoor LED Displays:
  • Typically installed in controlled environments like conference rooms, theaters, shopping malls, and classrooms.
• Outdoor LED Displays:
  • Installed in more exposed environments such as building facades, stadiums, billboards, and public squares.

6. Structural Design:

• Indoor LED Displays:
  • Generally lighter and sleeker as they don’t require heavy-duty protection.
• Outdoor LED Displays:
  • Heavier and more robust to withstand environmental stresses and ensure longevity.

7. Maintenance:

• Indoor LED Displays:
  • Easier to access and maintain due to their location in more controlled environments.
• Outdoor LED Displays:
  • Maintenance can be more challenging and often requires additional safety measures due to their installation in exposed and higher locations.

Understanding these differences helps in selecting the appropriate type of LED display based on the intended application environment and requirements.

Differences:

1. Technology:

• LED Display:
  • Uses Light Emitting Diodes (LEDs) to create the image directly. Each LED acts as an individual pixel.
• LED TV:
  • Essentially an LCD TV with LED backlighting instead of traditional CCFL (cold cathode fluorescent lamps) backlighting.
• LCD Screen:
  • Uses liquid crystal display technology, where a backlight (either CCFL or LED) illuminates liquid crystals to produce images.

2. Brightness and Contrast:

• LED Display:
  • Can achieve very high brightness levels and excellent contrast ratios. Suitable for both indoor and outdoor use.
• LED TV:
  • Offers good brightness and contrast but generally lower than that of dedicated LED displays. Best for indoor use.
• LCD Screen:
  • Brightness and contrast levels depend on the backlight technology. LED-backlit LCDs offer better performance than CCFL-backlit LCDs.

3. Pixel Pitch and Resolution:

• LED Display:
  • Pixel pitch can vary widely (from very small for close-up viewing to large for outdoor billboards). Resolution depends on the pixel pitch and display size.
• LED TV:
  • Typically has fixed resolutions like 1080p (Full HD), 4K, or even 8K. Designed for close-up indoor viewing.
• LCD Screen:
  • Similar to LED TVs, with fixed resolutions. Can be used in various devices such as monitors, laptops, and smartphones.

4. Size and Application:

• LED Display:
  • Available in a wide range of sizes, from small panels to large-scale outdoor billboards and video walls. Used for advertising, stadiums, concerts, and public displays.
• LED TV:
  • Generally ranges from 20 inches to over 100 inches. Used for home entertainment, commercial displays, and conference rooms.
• LCD Screen:
  • Comes in various sizes, often used in computer monitors, televisions, smartphones, and tablets.

5. Viewing Angle:

• LED Display:
  • Generally offers wide viewing angles, especially in high-end models.
• LED TV:
  • Provides wide viewing angles but can suffer from color and brightness shifts when viewed from extreme angles.
• LCD Screen:
  • Viewing angles can vary, with IPS (In-Plane Switching) panels offering better angles compared to TN (Twisted Nematic) panels.

6. Power Consumption:

• LED Display:
  • Power consumption depends on the brightness and size of the display but can be energy-efficient with modern LED technology.
• LED TV:
  • Typically more energy-efficient than older CCFL-backlit LCD TVs due to the use of LED backlighting.
• LCD Screen:
  • Power consumption varies based on the backlight type. LED-backlit models are more efficient than CCFL-backlit models.

7. Cost:

• LED Display:
  • Generally more expensive due to the technology and size options, especially for high-resolution and large-scale displays.
• LED TV:
  • Prices vary widely based on size, resolution, and features but are generally more affordable than custom LED displays.
• LCD Screen:
  • Often the most cost-effective, particularly in smaller sizes and older models. Prices can increase with higher resolution and better technology (like IPS).

Understanding these differences can help in choosing the right display technology based on specific needs and applications.

Size of LED Displays:

LED displays can be manufactured in a wide range of sizes, from small panels to massive installations. The size of an LED display is typically determined by its application and the environment in which it will be used. Here are some examples:

1. Small LED Displays:

• Typical Size Range: A few inches to a couple of feet.
• Applications: Digital signage, information boards, menu displays in restaurants, and small advertising panels.

2. Medium LED Displays:

• Typical Size Range: Several feet to tens of feet.
• Applications: Indoor advertising, retail displays, conference room screens, and digital billboards.

3. Large LED Displays:

• Typical Size Range: Tens of feet to hundreds of feet.
• Applications: Outdoor billboards, stadium screens, large event displays, and public information boards.

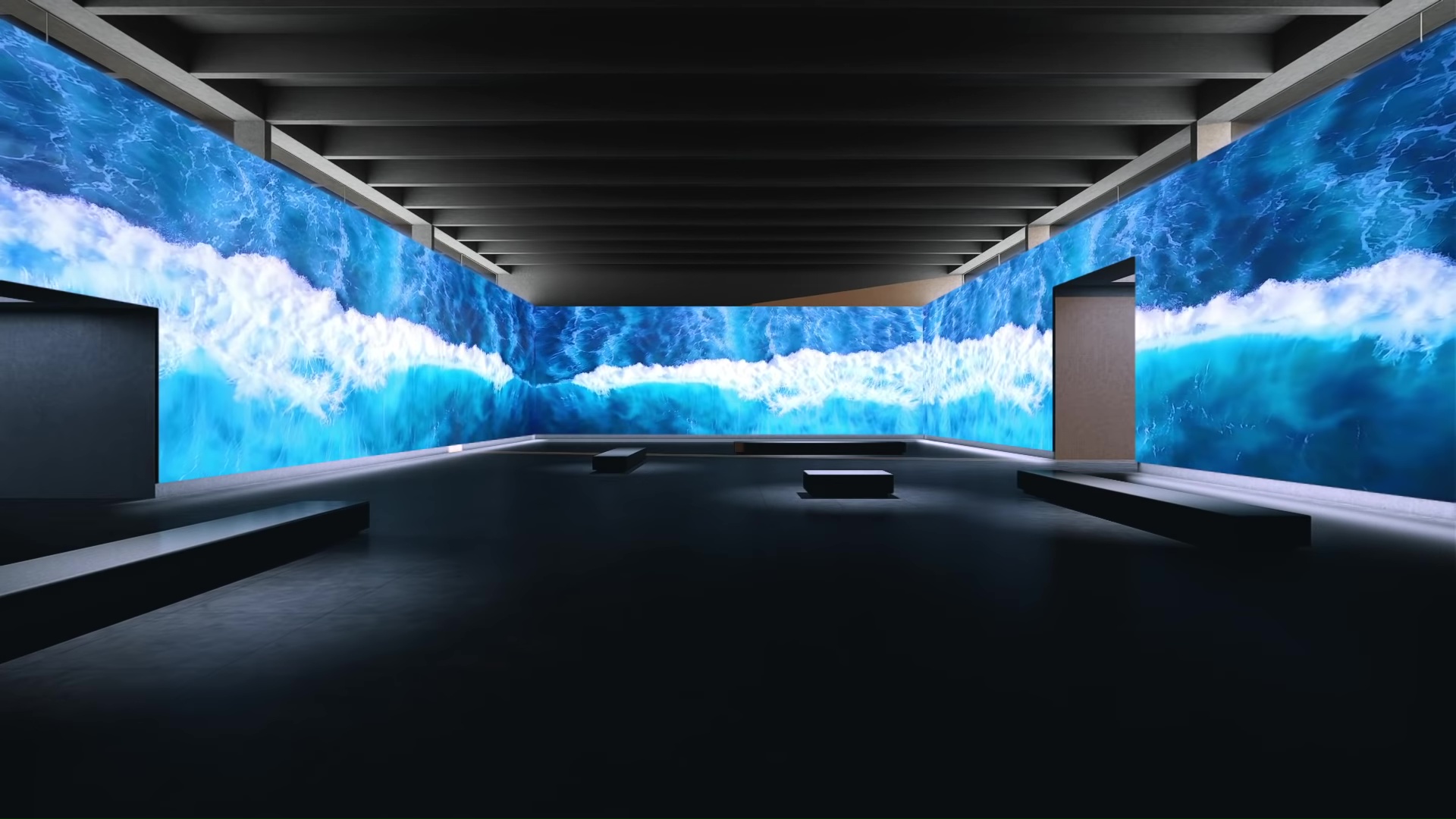

4. Video Walls:

• Typical Size Range: Can be as large as required by combining multiple LED modules.
• Applications: Control rooms, large advertising spaces, concert stages, and exhibitions.

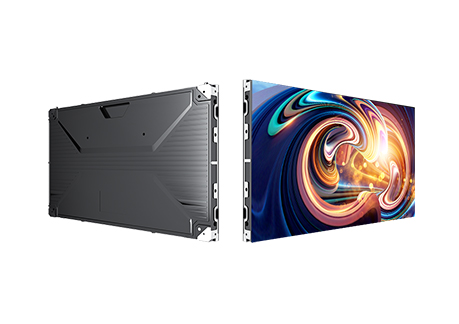

Modular Design:

The modular design of LED displays allows for virtually unlimited scalability. By connecting multiple LED modules, manufacturers can create displays of any size and shape. This flexibility makes LED displays suitable for a variety of large-scale applications, including:

• Stadiums and Arenas: For displaying live action, scores, and advertisements.
• Building Facades: Large screens for advertising and public information.
• Concerts and Events: Massive screens for enhanced viewer experience and stage backgrounds.
• Exhibitions and Trade Shows: Dynamic displays for showcasing products and services.

Custom Sizes:

For specific applications, custom-sized LED displays can be designed and built to meet the exact requirements of the project. This customization includes not only the size but also the shape and curvature of the display, allowing for creative and unique installations.

Conclusion:

There is practically no upper limit to the size of an LED display, as they can be expanded modularly to meet the needs of any application, from small indoor signs to enormous outdoor billboards and video walls. The flexibility in design and installation makes LED displays a versatile solution for a wide range of visual communication needs.

Choosing the Right LED Display:

Selecting the appropriate LED display for your needs involves considering several factors to ensure it meets your specific requirements. Here are some key points to help you make an informed decision:

1. Determine the Purpose and Location:

• Indoor vs. Outdoor: Decide whether the display will be used indoors or outdoors, as this affects brightness, weather resistance, and durability.
• Application: Identify the primary use, such as advertising, information display, events, conferences, etc.

2. Consider Viewing Distance:

• Pixel Pitch: Smaller pixel pitch (e.g., P1.2, P2) provides higher resolution suitable for close viewing distances. Larger pixel pitch (e.g., P4, P10) is suitable for farther viewing distances.
• Resolution: Ensure the resolution matches the content quality required for your application.

3. Brightness and Environment:

• Brightness Levels: Outdoor displays need higher brightness (4500-7000 nits or more) to be visible in direct sunlight. Indoor displays can have lower brightness (800-1500 nits).
• Ambient Light: Consider the ambient lighting conditions where the display will be installed.

4. Size and Space:

• Display Size: Choose the size based on the available space and the impact you want to create. Modular designs allow for flexibility in size and shape.
• Installation Space: Ensure there is enough space for installation and maintenance.

5. Durability and Maintenance:

• Weather Resistance: For outdoor displays, ensure they are weather-resistant (IP65 rating or higher).
• Maintenance Access: Consider how easy it will be to access and maintain the display. Front or rear access may be important depending on the installation environment.

6. Connectivity and Control:

• Input Options: Ensure the display supports the necessary input types (HDMI, USB, wireless, etc.) for your content sources.
• Control System: Choose a display with a user-friendly control system that suits your operational needs.

7. Budget:

• Cost: Determine your budget and find a balance between cost and the features you need. Higher resolution and larger displays generally cost more.
• Total Cost of Ownership: Consider the long-term costs, including maintenance and energy consumption.

8. Brand and Support:

• Reputation: Choose reputable brands known for quality and reliability.
• Support: Ensure the manufacturer or supplier offers good customer support and warranty services.

9. Customization:

• Custom Requirements: If you have specific needs (e.g., unique shapes or sizes), look for providers who offer customization options.

Steps to Choose the Right LED Display:

1. Define Your Needs: Clearly outline the purpose, location, and primary use of the display.
2. Research Options: Investigate different types of LED displays (indoor vs. outdoor, pixel pitch, etc.).
3. Consult Experts: Speak with industry experts or consultants to get recommendations based on your needs.
4. Compare Products: Evaluate different products based on the criteria above (brightness, size, durability, etc.).
5. Visit Showrooms or Demos: If possible, see the displays in action to judge their performance and quality.
6. Check Reviews and References: Look for reviews or ask for references from the manufacturer or supplier.
7. Make an Informed Decision: Choose the display that best fits your requirements and budget.

By considering these factors and following these steps, you can select an LED display that effectively meets your needs and provides the best value for your investment.
