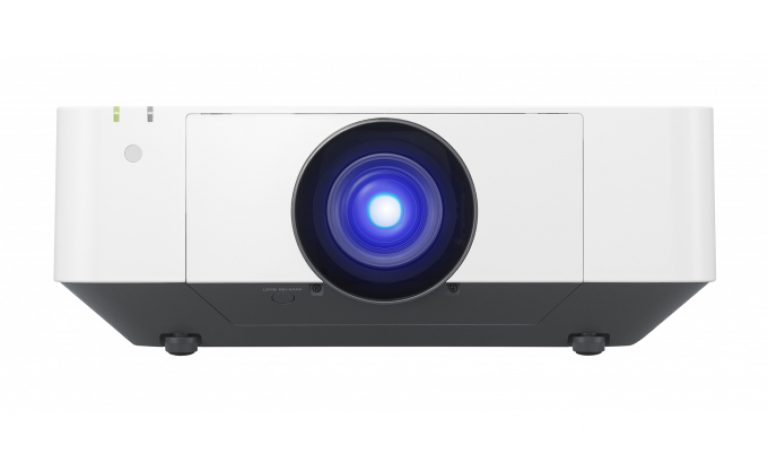

Sony VPL-FHZ57 (Laser)

Add to wishlistAdded to wishlistRemoved from wishlist 6
Add to compare
- 15% Sony VPL-FHZ57 (Laser)
Add your review

$39,800.00

Laser Light Source Projector
5000 lumens
WUXGA (1920 x 1200)
HDMI / VGA / RCA / RJ45
16kg
W 460 x H 169 x D 515 mm ( 寬 x 高 x 深 )

Inquire about this product now

Click on the icon to contact us via Whatsapp with the name of this product.

Sony VPL-FHZ57 (Laser)

$39,800.00

Description

About Sony VPL-FHZ57

The VPL-FHZ57 is Sony's next generation of the very successful Z-Phosphor projector illumination technology. With a brightness of 4100 lumens and 10,000 to 1 contrast ratio the VPL-Z57 offers high performance in demanding applications. The VPL-FHZ57 employs Sony's latest in image processing technology ensuring outstanding image quality. With Z-phosphor technology and a self- cleaning filter the VPL-FHZ57 offers peace of mind, need no maintenance for 20,000 hours.

The VPl-FHZ57 comes with a powered zoom lens and with 4 other option lenses to cover a wide range of installation needs. The VPL-FHZ57 also has a large lens shift range ensuring installations go smoothly. The VPL-FHZ57 has a full set of input connections including HDMI, DVI and analog RGB with both an analog and digital monitor out. The VPl-FHZ57 also has a standard HDBaseT input for simple one cable connection.

Sony VPL-FHZ57 Features

  • Outstanding picture quality
  • 4100 lumens 3LCD
  • Native WUXGA (1920 x 1200)
  • 10000:1 Contrast Ratio
  • Ground-breaking laser light source
  • Up to 20,000h maintenance free design
  • Versatile inputs including HDMI and DVI-D
  • RJ45 for network control and
  • Up to V: +60% -0%, H: +/-32% Optical Lens Shift
  • Tilt angle free
  • Built-in Edge blending
  • Advanced Geometric Correction
  • Vertical and Horizontal Keystone correction: Max +/-30%
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma
  • Near instantaneous power on
  • Auto light dimming for intelligently saving energy consumption
  • Designed to blend in visually
  • Picture by Picture Image Projection
  • DICOM GSDF Simulation Gamma Mode
  • Crestron RoomView ConnectedTM
  • HG (Mercury) free
  • Full range of Option Lens

Additional information

Specification: Sony VPL-FHZ57 (Laser)

Brightness

Resolution

Sony VPL-FHZ57 Specifications

Light Output / Color Light Output
4100 lumens (high mode)
3000 lumens (Std. mode)
LCD Panels
0.76" x 3 BrightEra
Panel Display Resolution
WUXGA (1920 x 1200 dots)
Contrast Ratio
10,000:1 (Full white/full black)
Light source
Laser diode
Projection Lens
Zoom / Focus: Approx. 1.6x Powered / Powered
Lens Shift: Powered, Vertical: -5%, +60%, Horizontal: +/- 32%
Throw Ratio: 1:39:1 to 2.23:1
Screen Size
40 to 600" (depends on the lens)
Computer and Video Input/Output
INPUT A: Mini D-sub 15-pin (RGB/Y Pb Pr), Audio: Stereo mini jack
INPUT B: DVI-D (HDCP support)
INPUT C: HDMI
INPUT D: RJ45 (HDBaseT)
VIDEO IN: BNC
OUTPUT A: Mini D-sub 15-pin
OUTPUT B: DVI-D (HDCP support)
Control Signal Input/Output
RS-232C: D-sub 9 pin
LAN: RJ45, 10BASE-T/100BASE-TX
Control S IN: Stereo mini jack (DC5V)
Scanning Frequency
H: 15 to 92kHz, V: 48 to 92Hz
Display Resolution: Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p
Color System
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PALN, PAL60
Power Requirements
AC 100V to 240V, 4.5A to 1.9A, 50Hz/60Hz
Power Consumption
370W (AC 100V-120V)
355W (AC 220V-240V)
Standby Mode Power Consumption
15.0W (Std)/ 0.5W (Low) (AC 100V-120V)
13.3W (Std) / 0.5W (Low) (AC 220V-240V)
Accoustic Noise (Light Mode)
32dB (High), 28dB (Standard), 33dB(Extended)
Dimensions (W x H x D)
460 x 169 x 515mm / 18.11 x 6.65 x 20.28"
Weight
16kg / 35.27lbs
