Panasonic PT-DW11K
0.85″ 16:9 DMDTM (x 3) 底板
光度輸出 : 11,000 流明;對比度 : 10000:1
解像度 : 1366 x 768 點 (WXGA)
多個端子: Video、RGB1(可作色差輸入)、RGB2、DVI-D、HDMI、串連、遙控1&2、3D SYNC
可接駁 LAN 網絡,方便監控;並附自動電郵警報
雙燈膽系統,可選擇只用單燈膽來投影,以延長燈膽的使用時間
電動鏡頭移動功能 ( 垂直 : ±70% (使用ET-D75LE6 時±60%);水平 : ±30% (使用ET-D75LE6 時±20%))
垂直投影摸式 (Portrait Mode)
Original price was: $168,000.00.$158,000.00Current price is: $158,000.00.
Description

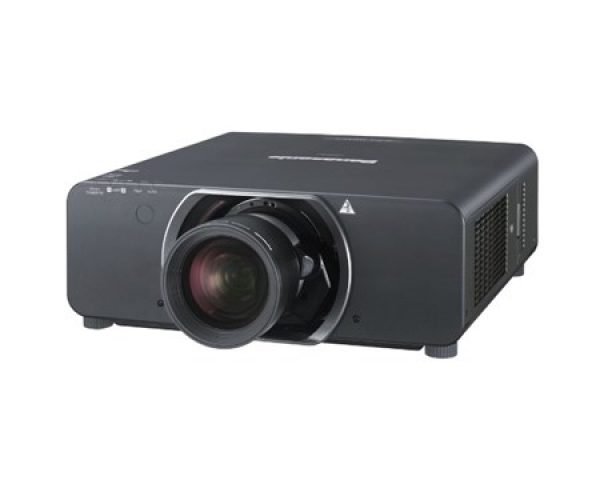

PT-DW11K 3 Chip DLP Projector
High brightness, picture quality and reliability – in a compact body
- High brightness and High contrast ratio of 10,000:1 makes bright, crisp and sharp image
- Dual Lamp System with Lamp Relay mode enables 24/7 operation
- Eco Filter enables up to 12,000 hours of Air filter replacement cycle.
- 11,000 lumens brightness
- WXGA (1,366 x 768) resolution
- 10,000:1 contrast ratio
- Edge Blending Function
- Color Matching
- Portrait mode compatibility
- HD-SDI Input
- Wired LAN / 3D ready
Our innovative dual-lamp system, with its new lamp, helps to make this body compact while providing a full 10,600lm of brightness, with 220-240V AC operation. When in ‘Lamp Relay’ mode, the system also eliminates any interruptions if a lamp should fail and enables 24/7 projection.
The projector’s Dynamic Iris feature uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.

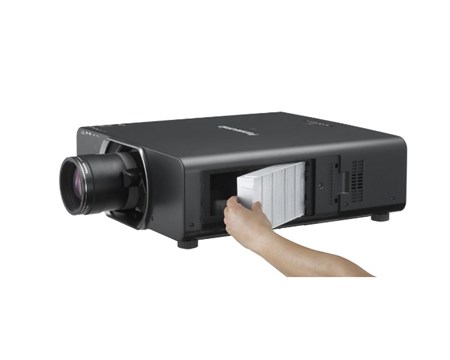

An integrated Eco Filter combines with the dust-resistant cabinet to allow long-term use in harsh conditions, while a maintenance cycle of up to 12,000 hours reduces the time and cost of repair.
The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centred design contributes to easy installation.
Additional information
Specification: Panasonic PT-DW11K
|
一般規格 | |||
面板 | 0.85" DLP 底板 x 3 | ||
燈泡 | 380W UHMTM x2 | ||
亮度 | 11,000流明 | ||
鏡頭 | 選配 | ||
對比度 | 10,000:1 | ||
解像度 | WXGA (1366 x 768) | ||
H-Sync/V-Sync 範圍 | 15-100 kHz / 24-120 Hz | ||
兼容視頻訊號 | — | ||
影像大小(對角) | 70" – 1000" (70" -600" with ET-D75LE8) | ||
鏡頭移動功能 | 垂直 ±70% (使用ET-D75LE6時: ±60%), 橫向 ±30% (使用ET-D75LE6時: ±20%) | ||
梯型矯正範圍 | — | ||
重量 | Approx 24 kg | ||
大小(闊x高x深) | 530 x 200 x 548.5 mm | ||
功率 | 950W | ||
接駁終端 | 3D SYNC IN/OUT (BNCx 1);3D SYNC OUT (BNC x 1) DVI-D (24-pin x 1, HDCP-compliant) HDMI (19 pin x 1) RGB1 (BNC x 5) RGB2 (D-sub HD 15-pin x 1) 視頻輸入 (BNC x 1 (入) 串連 (D-sub 9-pin x 1 (入), D-sub 9-pin x 1 (出)) 遙控 LAN |
||
燈泡型號 | ET-LAD310A ET-LAD310AW (2 units) ET-LAD320P(垂直投影) ET-LAD320PW (垂直投影, 2 units) |
||
可選購配件 | ET-PKD310H (高天花安裝架) ET-PKD310S (低天花安裝架) ET-PFD310 (安裝架) ET-PAD310 (安裝板) ET-SFD320 (濾煙網格) ET-SFR320 (濾煙網) ET-EMF320(隔塵網) ET-D75MC1 (鏡頭馬達蓋) |
||

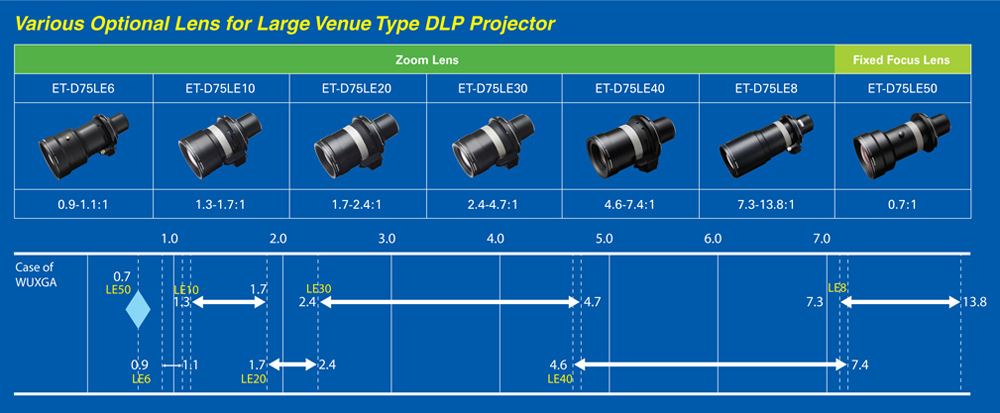

可選購鏡頭 | 變焦鏡頭 | ET-D75LE8 (Zoom lens, 8.2-15.4:1) ET-D75LE40 (Zoom lens, 5.1-8.2:1) ET-D75LE30 (Zoom lens, 2.7-5.2:1) ET-D75LE20(Zoom lens, 1.8-2.7:1) ET-D75LE10(Zoom lens, 1.4-1.9:1) ET-D75LE6 (Zoom lens, 1.0-1.2:1) |
|
固定焦距鏡頭 | ET-D75LE90 (0.40:1) ET-D75LE50 (0.8:1) |
||
原裝配件 | 電源線 遙控器 遙控器電池 |
