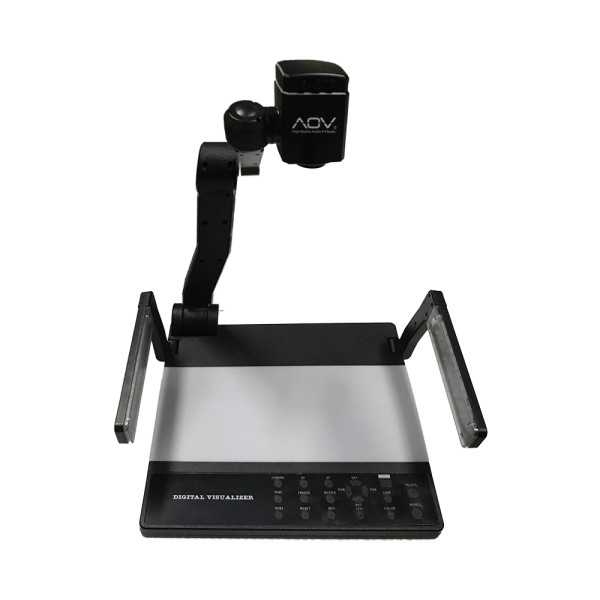

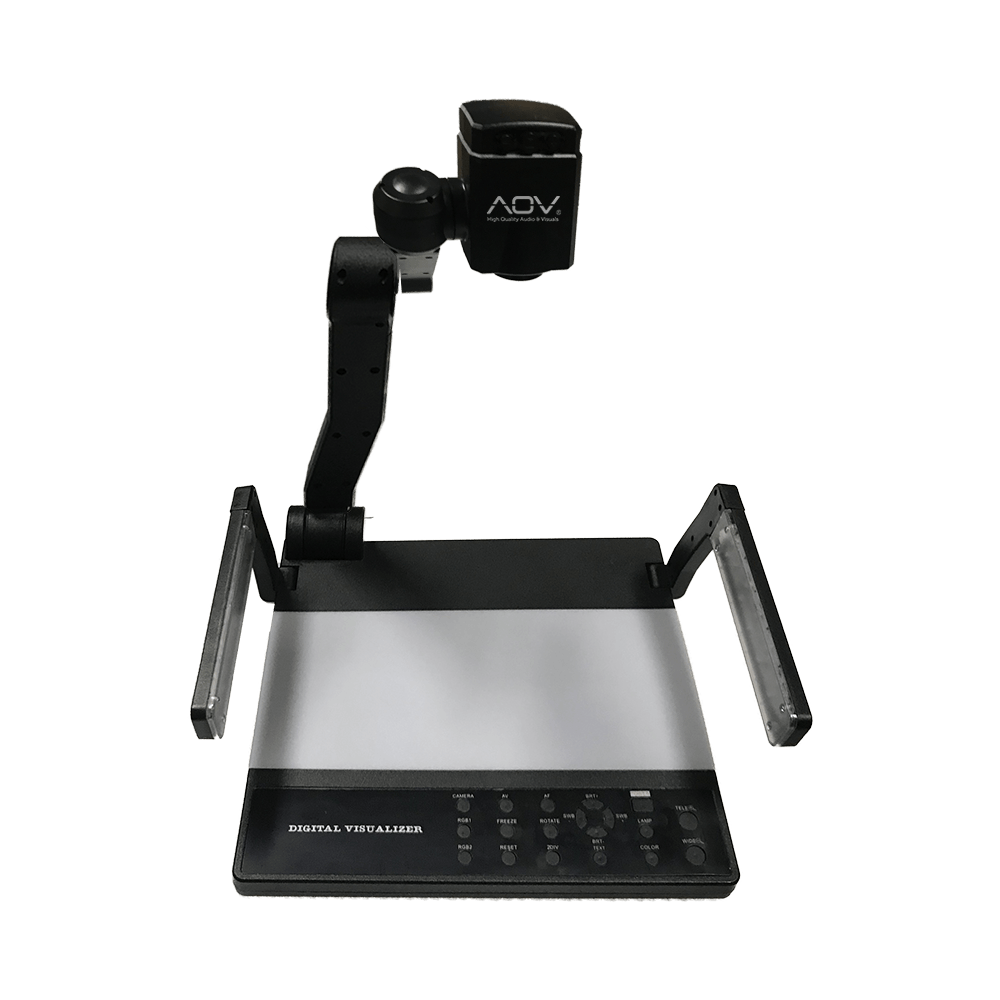

AOV OP-680H
500W pixels，LED x2, VGA OUT x2, VGA in x 2, HDMI out x1, RS232 x2
Special Note:
Due to the impact of the epidemic on the global supply chain and logistics, some models are out of stock or delayed delivery. In order to avoid disappointment and reduce the work of both parties, please consult the quantity and delivery date before placing an order.
Inquire about this product now
Click on the icon to contact us via Whatsapp with the name of this product.
Description
軟件下載： 下載
What is Portable Visualizer ?
Professional visual presenter is a demonstration device that makes actual specimens, real 3D objects,authentic documents and pages more diverse, realistic and vivid. Deliver real-time, true-to-life presentations
that catch and keep the attention of everyone in the room, integrate your resources into data files for easy transfer to a PC for storage. Ifs commonly use in teaching and training, video conference, seminar and other
occasions.
Features and Advantages
- Adopting green environmental protection materials, which completely accord with RoHS regulations.
- Unique, humanized appearance design.
- High-resolution lens, wide range of interfaces, rich functions for vivid and colorful demonstration.
- Equipped with and adapter for easily connecting with microscope.
- Built-in serial control port for freely controlling projector on/off.
- Specially tailored according to customers’ requirements.
| ITEM | OP-680H |
| Definition | 5000000 |
| Horizontal | ≥1000TV lines |
| Zoom | Max 500x(Optical zoom 32x,digital zoom 16X) |
| FRAME RATE | 30FPS |
| Focus | Auto/Manual(single touch for manual) |
| Capture Area | 280X380MM |
| Aperture | Auto |
| White balance | Auto/Manual |
| Split screen | 2,4,9,16 |
| Image processing | Color& B/W , Negative , Mirror , Text/Image , Brightness , Freeze , OSD menu |
| System control | Can control the screen, power,Rotate |
| Storage image | 20 images |
| Mode save/recall | Yes |
| Matrix | Yes |
| Image Rotation | 360 degree |
| digital scroll | supported |
| Flesh correction | Yes |
| 16:9 Display | Yes |
| VGA output definition |
1024*768, 1280*1024, 1360*768 |
| Driver-free USB | Yes |
| Control mode | Front Panel RS-232,Remote control, USB |
| VGA input | x2 |
| VGA output | x2 |
| Video output | x1 |
| Audio input | x2 |
| Audio output | x1 |
| RS232 | 2 |
| HDMI OUT | 1 |
| HDMI IN | NO |
| USB (B type) | 1 |
| Microphone port | x1 |
| Upperlight | LEDx2 |
| Baselight | LED |
| Camera head rotate | Horizonal:350 / Vertical：350 |
| W*D*H | Folded:335x365x110mm |
| Set up:335x365x520mm | |
| Carton size | 430x160x450MM |
| Operation temp/humidity | 5-35C/20-80% |
| Weight | 4.0kg |
| Power | DC12V/1.5A |
| AC | 100-240/50-60hz |
