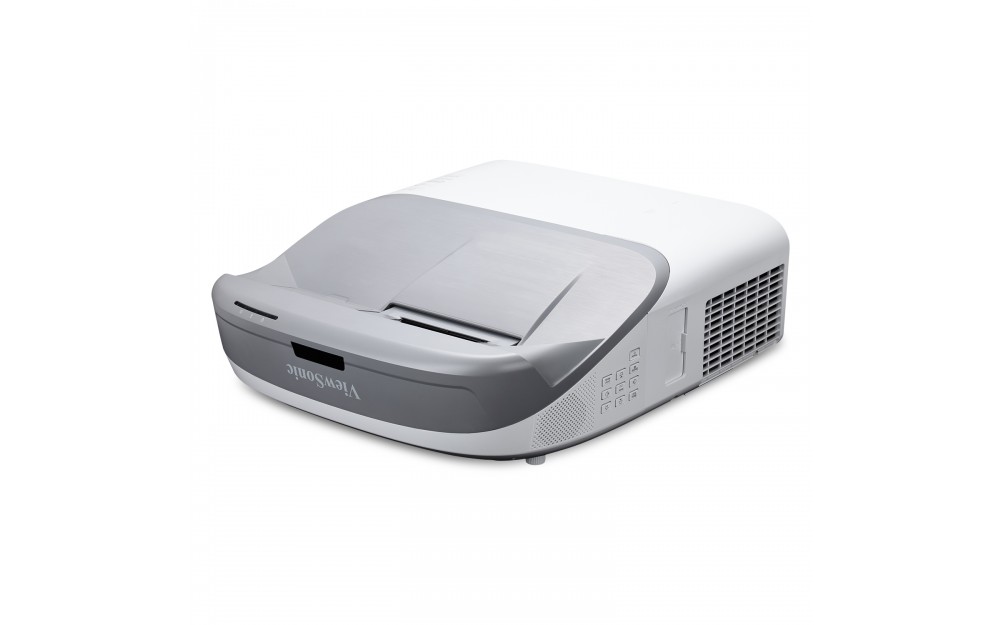

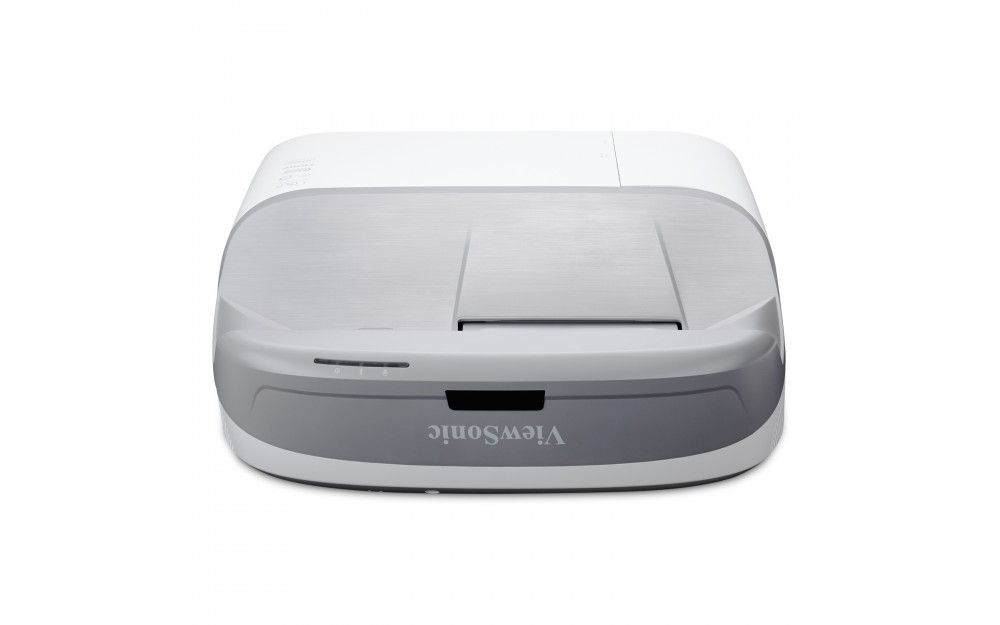

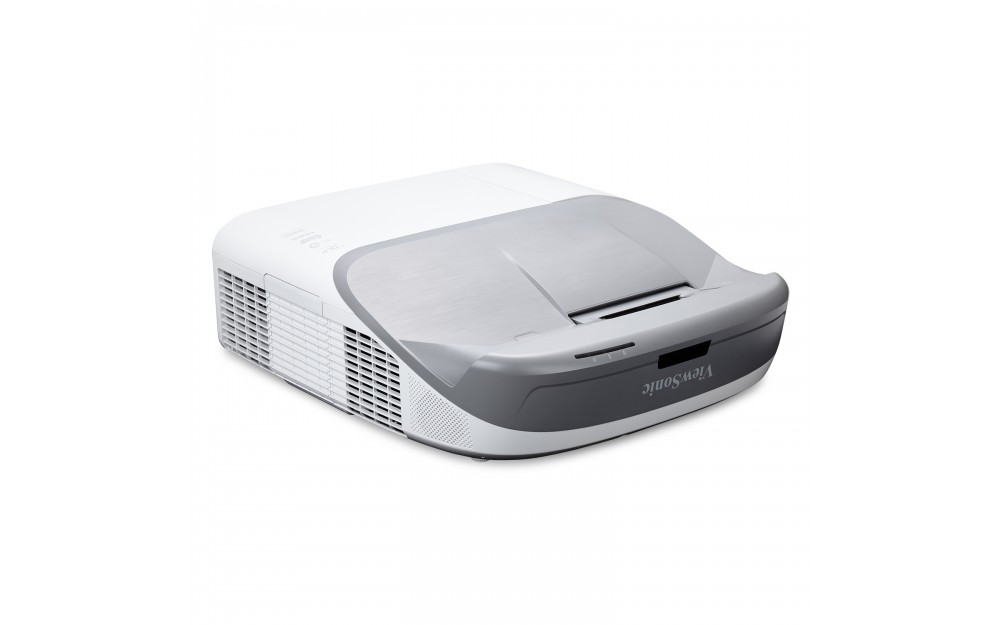

ViewSonic PX800HD

Features

• Large Images in Small Spaces
• SuperColor TruCinema Rec. 709
• Breathtaking Brightness in any Environment
• ISF Certified Color Calibration Tools
• A Fully Immersive Experience

Description

Offering incredible color accuracy and stunning, razor-sharp images, the ViewSonic PX800HD is the ideal ultra-short throw projector for home theater entertainment. Featuring ViewSonic’s SuperColor™ TruCinema RGBRGB technology, this projector delivers Rec. 709 color accuracy for brilliant, true-to-life images. Designed with ISF-certified day and night modes, the PX800HD delivers customized calibration for a true cinema experience any time of day. With a 0.23 ultra-short throw lens, this projector can be placed just inches away from a wall or screen to give you a huge image up to 150”. In addition to the simplicity and convenience of ultra-short throw projection, the PortAll™ compartment is specially designed for wireless streaming devices and PC sticks. Perfectly paired with a ViewSonic BCP100 or BCP120 ambient light diffusing screen (sold separately), the PX800HD delivers a brilliant and supersized cinema experience that LED TVs can’t match.

SuperColor
TruCinema Rec. 709

An exclusive RGBRGB color wheel delivers 100% Rec. 709 color accuracy for jaw-dropping, lifelike color you expect to only get at the movie theater. Rec. 709 is a highly exacting international HDTV standard; only projectors that meet 100% Rec. 709 can claim to accurately produce the precise colors of the original content.

*The image contained herein is simulated to reflect an image under different resolution (or scheme) for demonstration purposes only, and may not be the actual image displayed from the product.

Rec. 709

Color Accuracy

Breathtaking Brightness
in any Environment

Packed with 2,000 lumens of brightness, this projector produces bright images in any environment – with excellent performance in rooms with high ambient light.

2,000

Lumens

ISF Certified Color
Calibration Tools

ISF (Imaging Science Foundation) Certified Day and Night modes deliver optimized color in both bright and dark environments. If needed, ISF-certified technicians can provide on-site tuning of these settings for customized image calibration.

Day & Night Modes

Optimized Color

A Fully Immersive
Experience

An optional BrilliantColorPanel™ achieves a contrast ratio 4-times higher than that of an average projector screen. This enhances the most delicate shades of color and produces immersive images that put you right in the middle of the action.

Product Specifications

Most Viewed Specs

Resolution

1920 x 1080

Throw Ratio

0.23

Throw Distance

1.21 – 2.62 ft. / 0.37 – 0.8 m

Brightness (ANSI Lumens)

2000

Full Specifications

Display

Throw Distance

1.21 – 2.62 ft. / 0.37 – 0.8 m

Throw Ratio

0.23

Type

Ultra Short Throw DLP

Lens

Digital optical focus

Keystone

Vertical (± 30º) / Horizontal (± 30º)

Light Source (watt)

240

Light Source Life, Normal (hours)

3000

Light Source Life, Dynamic Eco-Mode (hours)

6000

Brightness (ANSI Lumens)

2000

Color Depth

30 bits, 1.07B Color (10+10+10)

Resolution

1920 x 1080

Dynamic Contrast Ratio

100,000:1

Aspect Ratio

16:9

Resolution Type

Full HD 1080p

Display Size (in.)

70 – 150 in. / 1.78 – 3.81 m (diagonal)

Video Signal

Frequency Horizontal

15–100KHz

Frequency Vertical

24–120Hz

Compatibility

PC Resolution (max)

1920 x 1080

Mac® Resolution (max)

1920 x 1080 (may require MAC adapter)

Connector

USB Micro B (5V 2A)

1

Mini USB Type B

1

Audio Ouput (Mini Jack)

1

3.5mm Audio In

2

Control (RS232)

1

HDMI 1.4

2

HDMI 1.4/MHL 2.0

1

Composite RCA Video In

1

3D VESA

1

Audio

Internal Speakers

10W (x2)

Power

Voltage

AC 100-240V (universal), 50-60Hz

Consumption (max)

450W

Stand-by

<0.5W

Controls

Physical Controls

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

On Screen Display

Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Conditions

Temperature

32-104º F (0–40º C)

Humidity (non-condensing)

0-90%

Weight (imperial)

Net (lbs)

13.38

Gross (lbs)

18.71

Weight (metric)

Net (kg)

6.08

Gross (kg)

8.50

Dimensions (metric) (wxhxd)

Packaging (mm)

590 x 500 x 275

Physical (mm)

434 x 388 x 153

Dimensions (imperial) (wxhxd)

Packaging (in.)

23.23 x 16.69 x 10.83

Physical (in.)

17.09 x 15.28 x 6.02

General

Regulations

Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP

PACKAGE CONTENTS

PX800HD projector, power cable, VGA cable, remote control / laser pointer with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

Warranty

3-year limited warranty on parts and labor, 1st year free Express Exchange® service**

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

Dimensions: 17.09 x 15.28 x 6.02 in / 434 x 388 x 153 mm

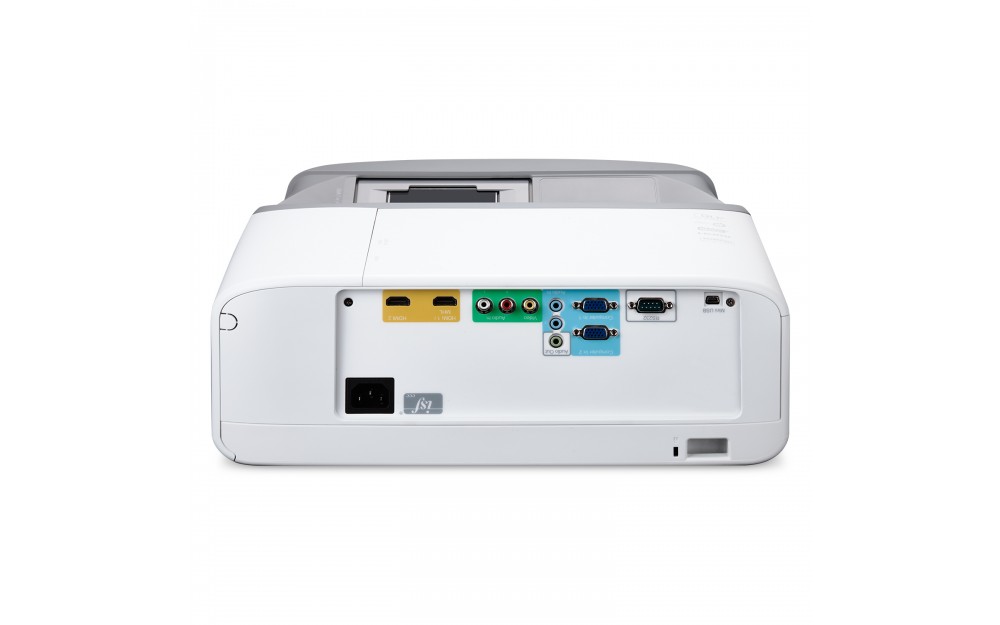

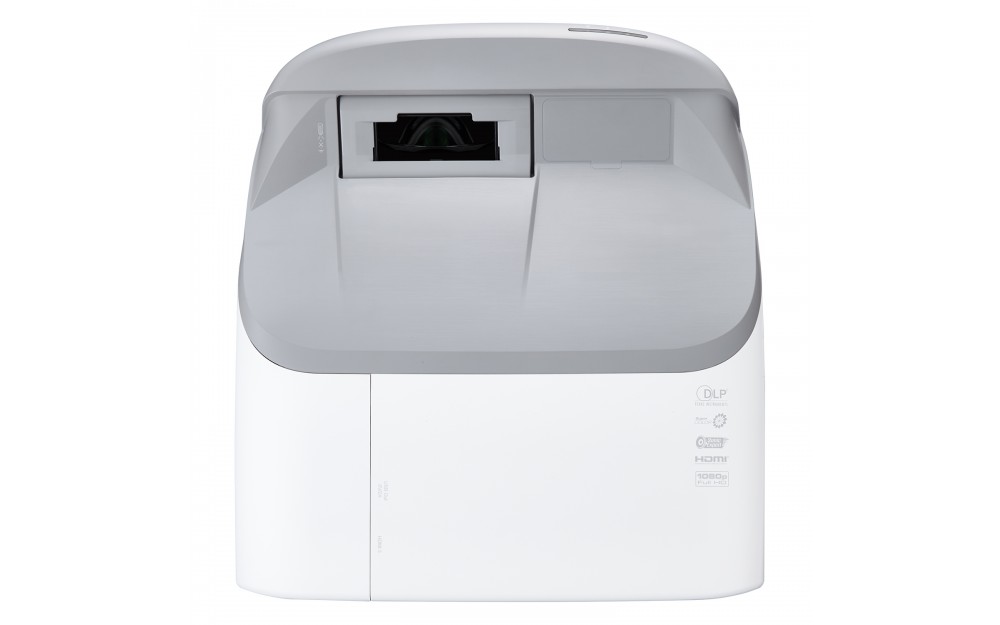

1. Projection Lens
2. IR Remote Sensor

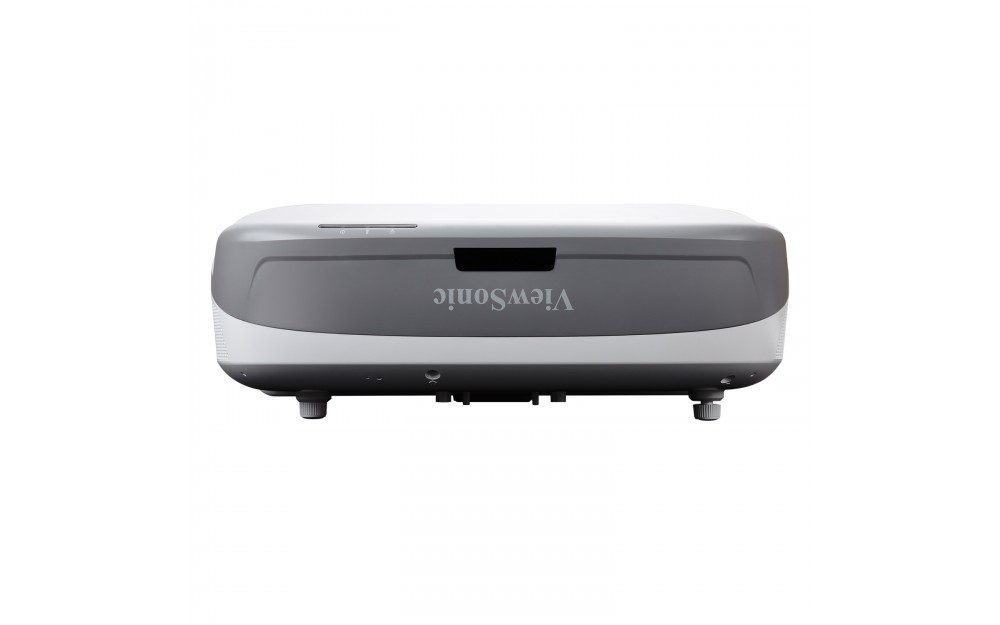

3. Elevation Feet

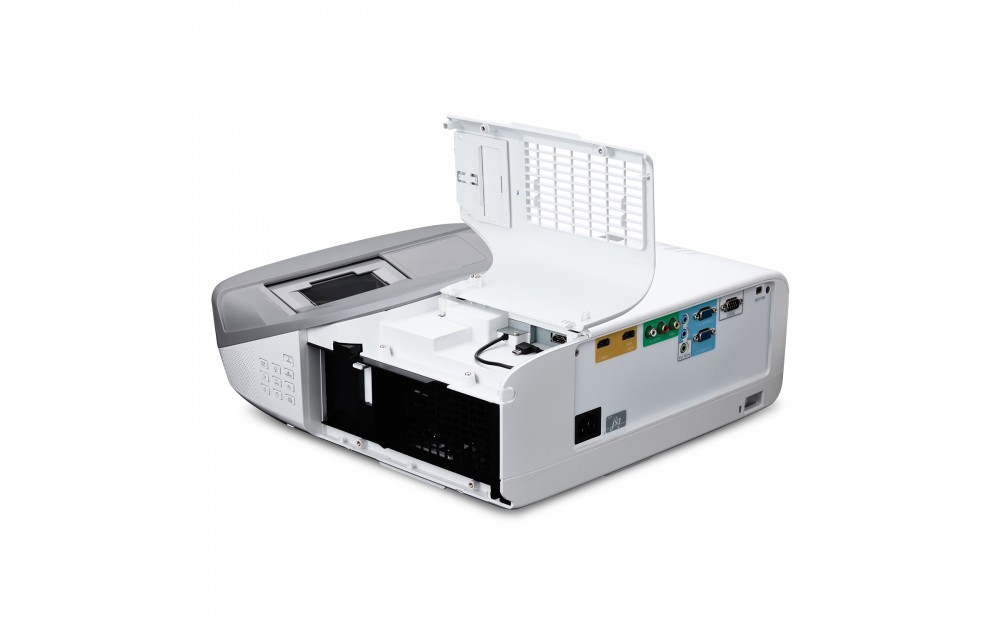

4. HDMI/MHL (inside PortAll chamber)
5. USB mini B (power only, inside PortAll chamber)
6. Focus Lever

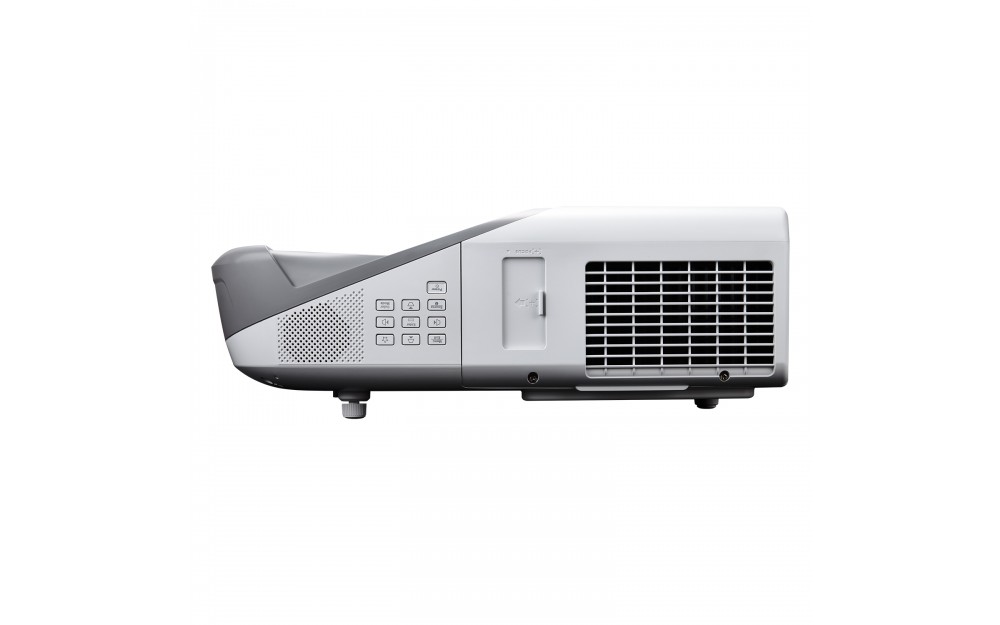

7. Menu Controls
8. External Speaker

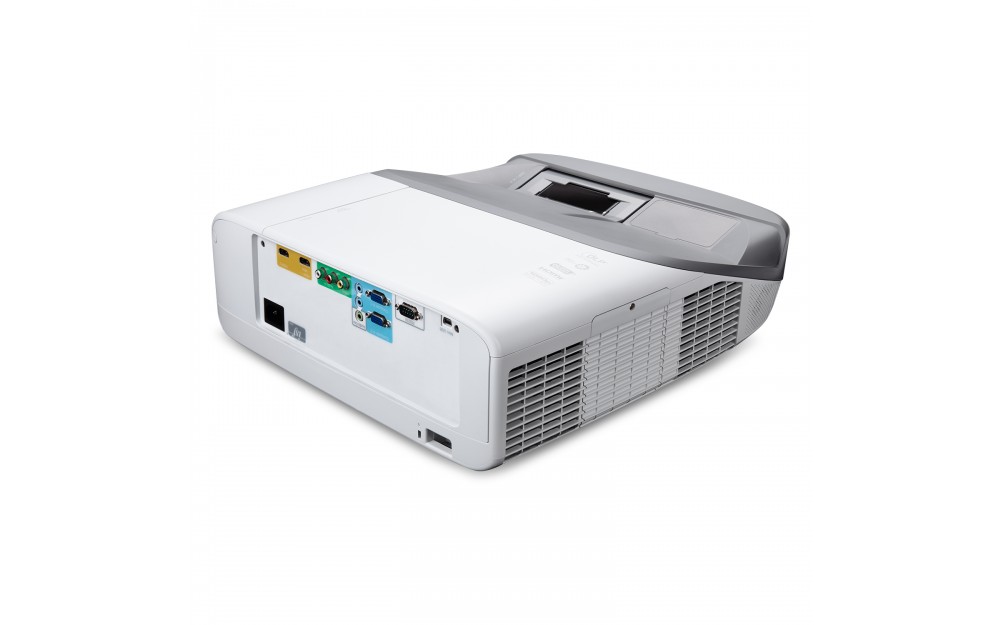

9. Audio In/Out
10. Component In
11. HDMI/MHL
12. HDMI
13. AC In
14. VGA In (x2)
15. RS232
16. USB Mini B
17. Kensington Lock Slot
18. Security Bar
19. Projection Mirror
20. External Speaker

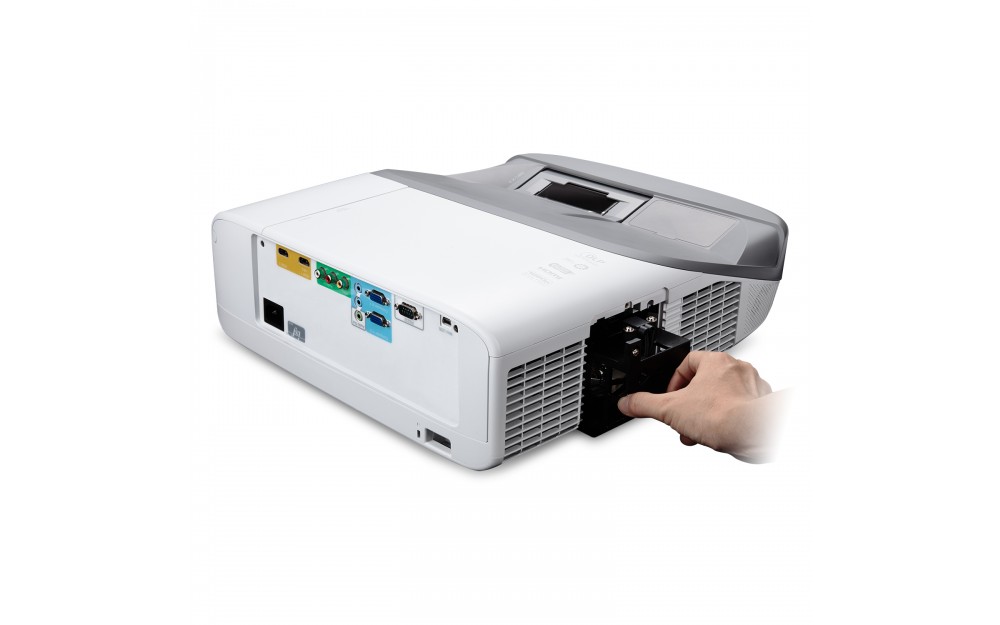

21. Lamp Access
