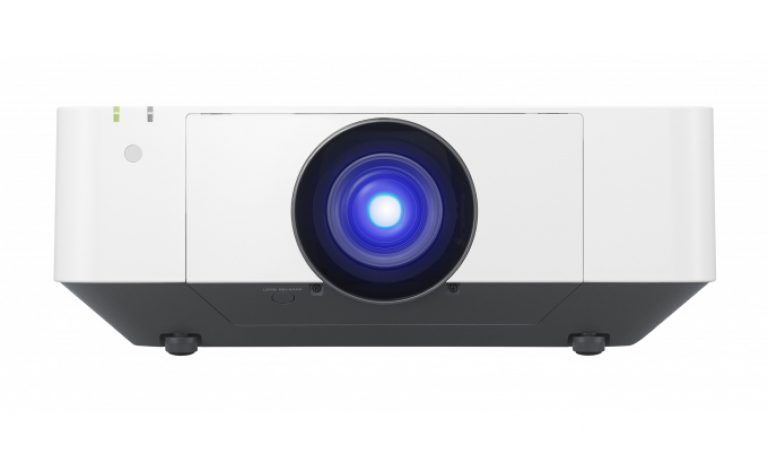

Sony VPL-FHZ60 (Laser)

About Sony VPL-FHZ60

The VPL-FHZ60 is Sony's next generation of the very successful Z-Phosphor projector illumination technology. With a brightness of 5000 lumens and 10,000 to 1 contrast ratio the VPL-Z60 offers high performance in demanding applications. The VPL-Z60 employs Sony's latest in image processing technology ensuring outstanding image quality . With Z-phosphor technology and a self cleaning filter the VPL-Z60 offers peace of mind , need no maintenance for 20,000 hours. The VPl-FHZ60 comes with a powered zoom lens and with 4 other option lenses to cover a wide range of installation needs. The VPL-Z60 also has a large lens shift range ensuring installations go smoothly. The VPL-Z60 has a full set of input connections including HDMI, DVI and analog RGB with both an analog and digital monitor out. The VPl-Z650 also has a standard HDBaseT input for simple one cable connection.

Sony VPL-FHZ60 Specifications

Light Output / Color Light Output

5000 lumens (high mode)
3500 lumens (Std. mode)

LCD Panels

0.76" x 3 BrightEra LCD Panel

Panel Display Resolution

WUXGA (1920 x 1200 dots)

Contrast Ratio

10,000:1 (Full white/full black)

Light source

Laser diode

Projection Lens

Zoom / Focus: Approx. 1.6x Powered / Powered

Lens Shift

Powered, Vertical : -5%, +60%
Horizontal : +/- 32%

Throw Ratio

1:39:1 to 2.23:1

Screen Size

40" to 600" (depends on the lens)

Computer and Video: INPUT A

Mini D-sub 15-pin (RGB/Y Pb Pr) Audio: Stereo mini jack

Computer and Video: INPUT B

DVI-D (HDCP support)

Computer and Video: INPUT C

HDMI

Computer and Video: INPUT D

RJ45 (HDBaseT)

Computer and Video: VIDEO IN

BNC

Computer and Video: OUTPUT A

Mini D-sub 15-pin

Computer and Video I/O: OUTPUT B

DVI-D (HDCP not supported)

Control Signal Input/Output: RS-232C

D-sub 9 pin

Control Signal Input/Output: LAN

RJ45, 10BASE-T/100BASE-TX

Control Signal I/O: Control S IN

Stereo mini jack (DC5V)

Scanning Frequency

H: 15 to 92kHz, V: 48 to 92Hz

Computer Signal Input

Maximum display resolution: 1920×1200 dots

Video Signal Input

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p,576/50p, 720/60p, 720/50p, 1080/60i, The following items are available for digital signal only: 1080/50i, 1080/60p, 1080/50p, 1080/24p

Color System

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PALN, PAL60

Power Requirements

AC 100V to 240V, 4.5A to 1.9A, 50Hz/60Hz

Power Consumption

420W (AC 100V-120V)
408W (AC 220V-240V)

Standby Mode Power Consumption

15.0W (Std)/ 0.5W (Low) (AC 100V-120V)
13.3W (Std) / 0.5W (Low) (AC 220V-240V)

Acoustic Noise (Light Mode)

34dB (High), 28dB (Standard), 34dB(Extended

Dimensions (W x H x D)

460 x 169 x 515mm / 18.11 x 6.65 x 20.28"

Weight

16kg / 35.27lbs
