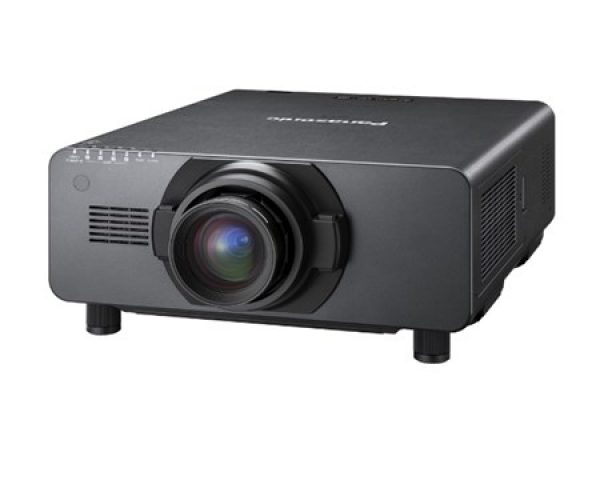

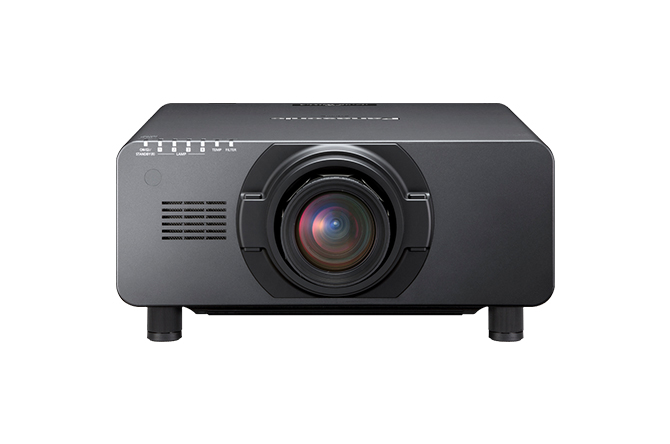

Compact 20000 lumens-class Projector – PT-DS21K2

Flagship model delivering spellbinding picture quality for events and staging

Compact 20.000lm*1Projector Delivers Stunning Picture Quality with High Frame-Rate*2

• 20.000lm*1 of Brightness with a contrast ratio of 10.000:1 from an extraordinarily compact body
• Real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction*2
• Providing a variety of advanced features, such as DIGITAL LINK connectivity and multi-screen projection

*1  17,000 lm for the PT-DW17K2, and 16,000 lm for the PT-DZ16K2, *2 Featured on the PT-DZ21K2/DS20K2/DZ16K2 only,

Benefits of PT-DS21K2:

1. Ultra High and Detailed Images

• 20,000 lm of brightness  (PT-DW17K2: 17,000 lm, PT-DZ16K2: 16,000 lm) for large venues.
• Real Motion Processor combines Frame-Creation and 120 Hz processing for fluid motion reproduction (PT-DZ21K2/DS20K2/DZ16K2).
• Next-generation Detail Clarity Processor delivers crisp and detailed image quality.
• High 10,000:1*1 contrast ratio with Dynamic Iris.
• System Daylight View 3 for enhanced color performance in bright rooms and mapping applications.
• Waveform Monitor function for easy adjustment of black/white level.
• DICOM Simulation mode for medical presentations and training*2.

2. High Reliability and Low TCO

• Extended lamp replacement cycle of 3,000 hours*3.
• Liquid cooling with highly efficient quad-lamp system reduces operational noise.
• Stable operation in ambient temperatures of up to 45 ° C*4.
• Quad-lamp system allows 24/7 operation in Lamp Relay mode.

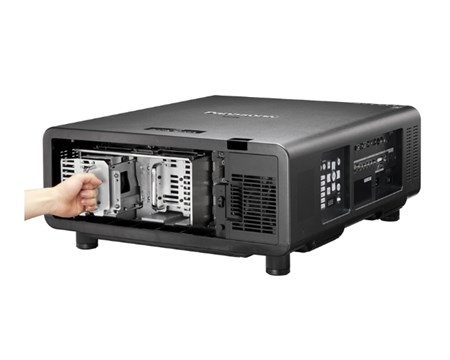

• Easy lamp replacement from rear side.

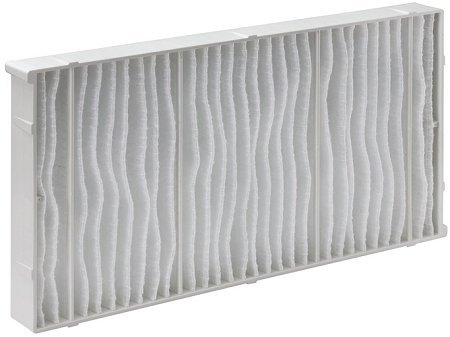

• Eco filter requires no maintenance for 12,000 hours*5.
• Durable, precision-tuned optical engine.
• High efficiency lamps reduce power consumption.

3. Versatile Installation Flexibility

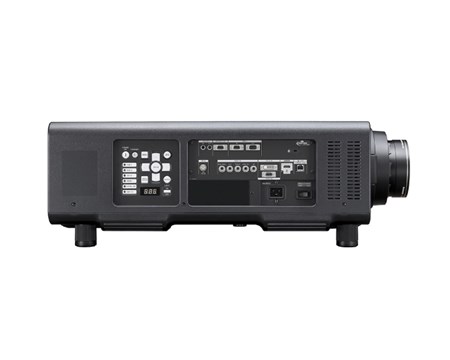

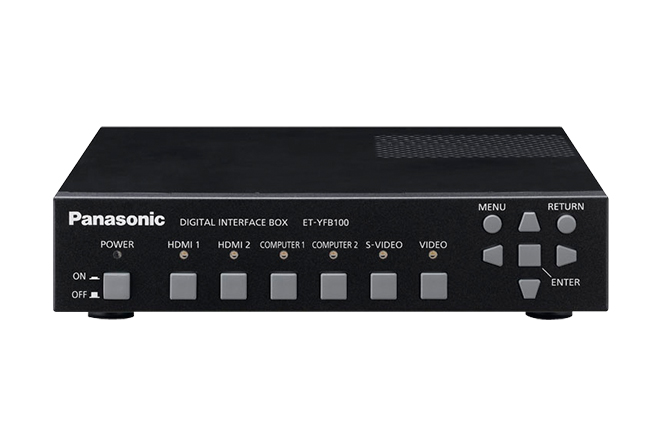

Flexible installation with 360 ° vertical cabinet rotation. Multi-Screen Support System seamlessly joins screens with Edge blending, Color matching, and Digital image enlarging. Multi-Unit Brightness Control. Compatible with Panasonic Multi Monitoring & Control Software and Early Warning Software. Single-cable DIGITAL LINK connection transmits video and control signals for up to 100 m (328 ft). Portrait mode capability (PT-DZ21K2/DS20K2/DW17K2. Mounting the optional lamp units for portrait mode is required)*6. Abundant terminals including 3G-SDI inputs (PT-DZ21K2/DS20K2 features inputs x 2 and PT-DZ16K2 has input x 1).

*1 Full on/off, with Dynamic Iris set to “3”,

*2 This product is not a medical instrument. Do not use for actual medical diagnosis,

*3 Usage environment affects lamp replacement cycle,

*4 Operating temperature range is 0-40 °C (32-104 °F) when projector is used in Portrait mode or High Altitude mode for altitudes 1,400-2,700 m (4,593-8,858 ft).

Operating temperature range is 0-35 °C (32-95 °F) when projector used in Portrait mode in High Altitude mode,

*5 Usage environment affects filter replacement cycle,

*6 Installation is possible only with the terminal side facing downward. Horizontal rotation and vertical rotation are both limited to 15 °, Additionally, lamp life is reduced to 700 hours depending on usage environment.
