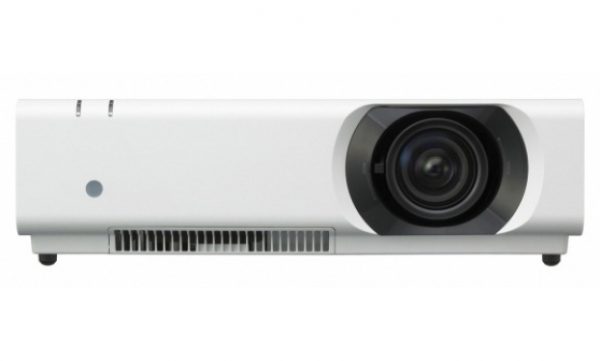

Sony VPL-CH350
LCD projector
4000 lumens
WUXGA (1920 x 1200)
1.5X Optical Zoom

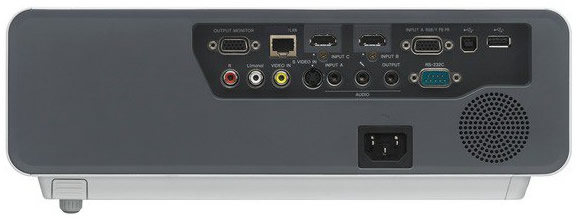

HDMI / VGA / RCA / RJ45
5.7kg
Dimensions:15.9″ x 13″ x 4.8″ (WxDxH)
Inquire about this product now
Click on the icon to contact us via Whatsapp with the name of this product.
名稱：Sony_VPL-CH350.pdf
Sony_VPL-CH350.pdf
Original price was: $13,800.00.$12,500.00Current price is: $12,500.00.
Description
The VPL-CH350 provides widescreen image with its significantly high brightnessof 4000lm with WUXGAresolution. It is equipped with technologies including Bright Era® 3LCD panels, Advanced Crisp Foucus Lens, and 12-bit Gamma Correciton circuit for a greater visual experience. Not only the picture is brilliant, users can expect to reduce their total operational cost due to long lamp life (up to 5000h) and the intelligent auto lamp dimming function. Versatile inputs includes 2 HDMI for digital image and audio input..Network connectivity for control and content dleivery, optional wireless dongle (IFU-WLM3) Additionally, features such as lens shift for fine adjustment, horizontal & vertical keystone correction, and advanced geometric correction helps installers to reduce total time of installation. With the good balance of high brightness, advanced energy saving features, intelligent installation features and affordable cost, the projector is a great fit for demanding large class rooms and meeting rooms where cost is critical.
Highlights:
- 4000 lumens 3LCD Projector
- 2500:1 Contrast Ratio
- WUXGA (1920 by 1200) Resolution
- Up to 3500h expected lamp life
- Versatile inputs including 2 HDMI
- RJ45 for network control and monitoring
- 1.5x Optical Zoom
- V : +/-5%, H : +/-4% Optical Lens Shift
- 12W High Wattage Speaker
- Equipped with Bright Era 3LCD Panels
- Advanced Crisp Focus len
- 12 bit 3D Digital Gamma Correction
- Auto Lamp Dimming
- FunctionEco Mode for savings on energy
- Synchronized Lamp and Filter maintenance timing
- Designed to blend in visually
- Vertical and Horizontal Keystone Correction
- Advanced Geometric Correction
- Closed Captioning
- Optional wireless connectivity
Additional information
Specification: Sony VPL-CH350
|
| Optical Specifications | Detail: |
|---|---|
| Projection System | 3 LCD |
| Color Light Output | 4000 lumens (high lamp mode) 3200 (standard mode) |
| Light Output | 4000 lumens (high lamp mode) 3200 (standard mode) |
| Contrast Ratio | 2500:1 |
| Lamp | High-pressure mercury lamp 250 W type |
| Lamp Life | 3000H(lamp mode : High) / 3500H(Standard) |
| Projection Lens | Approx. 1.45x manual zoom / Manual focus |
| Throw Ratio | 1.5 to 2.1:1 |
| Screen Coverage | 40" to 300" |
| Input/Output Specifications | Detail: |
|---|---|
| S-Video In | Mini DIN-4pin Audio : RCA x2 (shared with VIDEO IN) |
| Composite Video In | RCA, Audio : RCA x2 (shared with S VIDEO IN) |
| Analog RGB/Component In | Mini D-sub 15-pin (RGB) x1, Mini D-sub 15-pin (RGB/Y Pb Pr) x1 / Audio: Stereo mini jack |
| Digital In | 2 HDMI (Digital RGB/Y Pb Pr, Digital Audio), HDCP Support |
| Network | RJ-45: 10Base-T / 100Base-TX |
| Monitor Out | Mini D-sub 15-pin (from Analog RGB input) |
| Variable Audio Out | Stereo mini jack (variable out) |
| Remote Control | RS-232C: D-sub 9 pin (female) and RJ45 10/100baseT |
| USB | type A and B |
| Electrical Specifications | Detail: |
|---|---|
| Native Resolution | 1920 by 1200 pixels |
| Video Resolution | 750 lines |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Acceptable Computer Signals | Maximum display resolution 1920 by 1200 dots |
| Acceptable Video Signals | NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/, 1080/60p, 1080/50p |
| General Specifications | Detail: |
|---|---|
| Dimensions (W x H x D) | 15.9 inch by 4.8 inch by 13 inch |
| Weight | 12.5 lbs |
| Power Requirements | 100 to 240 v |
| Power Consumption | 353W |
| Speaker | 12 watt ( 1, monaural) |
| Fan Noise | 38 db |
| Vertical Keystone Correction Range | +/- 30 % |
| Horizontal Keystone Correction Range | +/- 20 % |
| Operating Temperature | 32 to 95 °F (0 to 35 °C) |
| Operating Humidity | 35% to 85% (non condensing) |
| Heat Dissipation | 1323 BYU max |
| Other Specifications | Detail: |
|---|---|
| Safety Regulations | UL60950 Listed cUL (CSA 60950) FCC Class B IC Class B DEMKO (EN60950) CE (LVD / EMC) C-Tick Dentori VCCI Class B |
| Environmental Notice | Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or see www.sony.com/mercury for additional information. |
