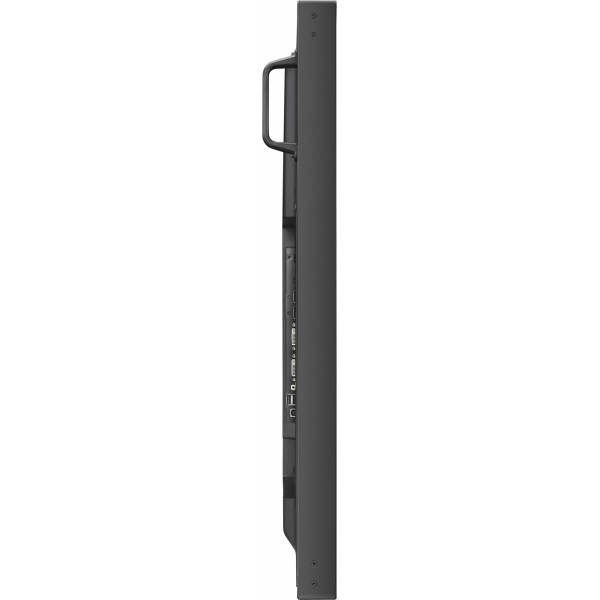

ViewSonic CDM5500T 55吋

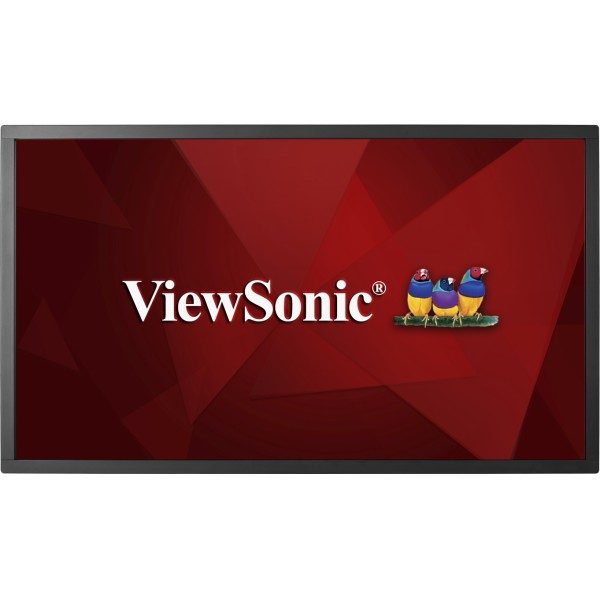

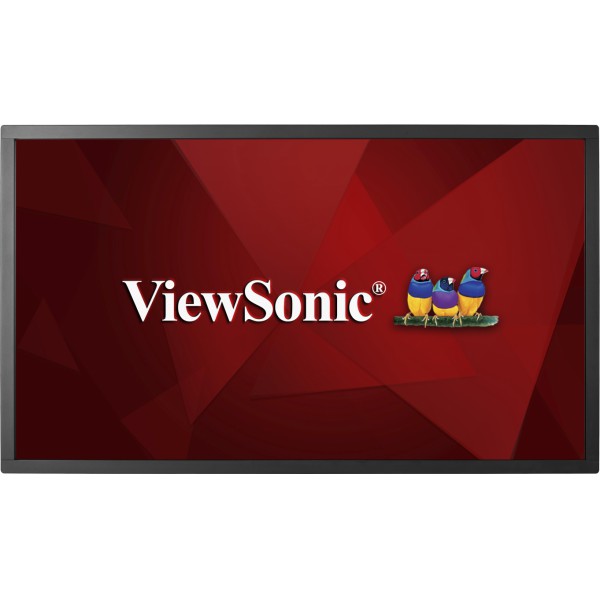

CDM5500T,55″ (54.6″ viewable) All-in-One Commercial Display.
Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this commercial display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.
Inquire about this product now
Click on the icon to contact us via Whatsapp with the name of this product.
Description
10-point Multi-touch
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
Built-in Quad Core Media Player with 16GB Storage
A powerful quad-core media player enables photo, signage, and video playback content, while 16GB of onboard memory provides ample storage for files and multimedia content. With the integration with Micro SD card slot, it supports up to 32GB external storage.
Embedded LAN, Wi-Fi, and Browser
An integrated RJ45 connection, as well as Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated browser provides simple content delivery via connection to the web.
Internal Scheduler
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.
Content Management Software
Great for all venues and scenarios, the bundled content management software lets users transfer multimedia content onto the display from PCs and laptops. This embedded content management tool also lets you format, schedule, and save playback settings.
Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.
Portrait or Landscape Mountable
This display is VESA-mountable in either portrait or landscape orientation for display flexibility in a variety of settings.
15 x 15 Tiling Support with DisplayPort or DVI
With integrated DisplayPort and DVI outputs, this display supports up to 15 x 15 tiling for stunning multi-display video wall installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.
Additional information
Specification: ViewSonic CDM5500T 55吋
|
技術規格
LCD PANEL
Panel Size : 55'' (54.64" diagonal)
Type/ Tech : IPS type
Display Area (mm) : 1209.6 (H) x 680.4 (V)
Aspect Ratio : 16:9
Resolution : 1920 x 1080
Colors : 16.7 M colors
Brightness : 450 nits (typ.)
Contrast Ratio : 1100:1 (typ.)
Response Time : 12 ms
Viewing Angles : H = 178, V = 178 (typ.)
Backlight : ELED
Backlight Life : 50,000 Hours (typ.)
Hardness : Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
TOUCH
Type/ Tech : Infrared
Touch Point : 10 Points

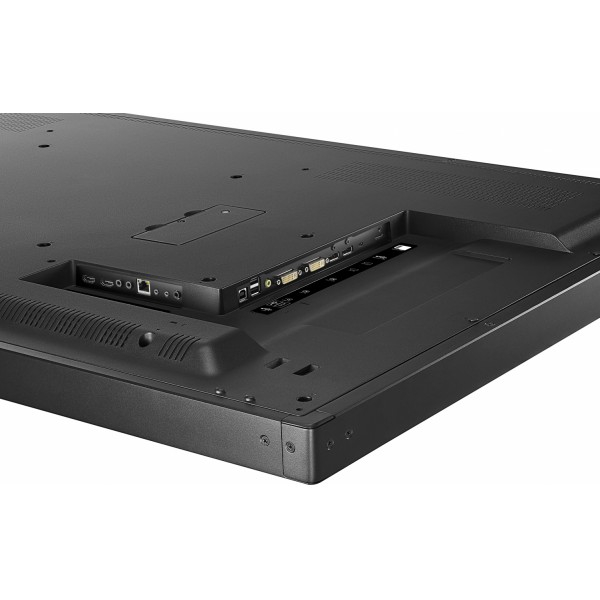

INPUT
HDMI : x 2 (HDMI1.4)
DisplayPort : x 1
DVI : x 1
Audio : x 1
RS232 : x 1
SD/SDHC : Micro SD card slot (Up to 32GB)
IR : x 1
OUTPUT
DisplayPort : x 1
DVI : x 1
RS232 : x 1
IR : x 1
LAN
RJ45 : x 1
USB
Type A : x 2 (Multi-media playback x 1, 5V/2A x 1)
Type B : x 1 (Touch out)
Micro USB : x 1 (Support USB OTG)
AUDIO
Speaker : 10W x 2
BUILT-IN PC
Processor : Quad core A9, 1.6G
Storage : eMMC 16G
COMPATIBILITY
VGA : 480i, 480p,720p,1080i,1080p
DVI : 480i, 480p,720p,1080i,1080p
DisplayPort : 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI : 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
POWER
Voltage : 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption : Normal 76W, Max 143W
ERGONOMICS
Wall Mount (VESA® ) : 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate)
OPERATING CONDITIONS
Temperature (º C) : 0 to 40°C (Landscape)/0 to 35°C (Portrait)
Humidity : 20% ~ 80% non-condensing
DIMENSIONS (W X H X D)
Physical (inch / Mm) : 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
Physical W/o Stand (inch / Mm) : 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
Packaging (inch / Mm) : 60.12 x 38.78 x 11.02 / 1527 x 985 x 280
WEIGHT
Net (lb / Kg) : 77.38 / 35.1
Net W/o Stand (lb / Kg) : 68.34 / 31
Gross (lb / Kg) : 87.3 / 39.6
REGULATIONS
Standard : FCC, cTUVus, Energy Star 7.0, Mexico Energy, CE, EAC, BSMI
WHAT'S IN THE BOX?
CDM5500T commercial display/Remote Control with batteries/User manual CD wizard/Quick Start Guide/Power Cables/DVI to VGA cable/RS232 cable/RS232 daisy chain cable (2.4mm – 2.4mm)./IR sensor cable/USB cable (Type A-B)
