Description

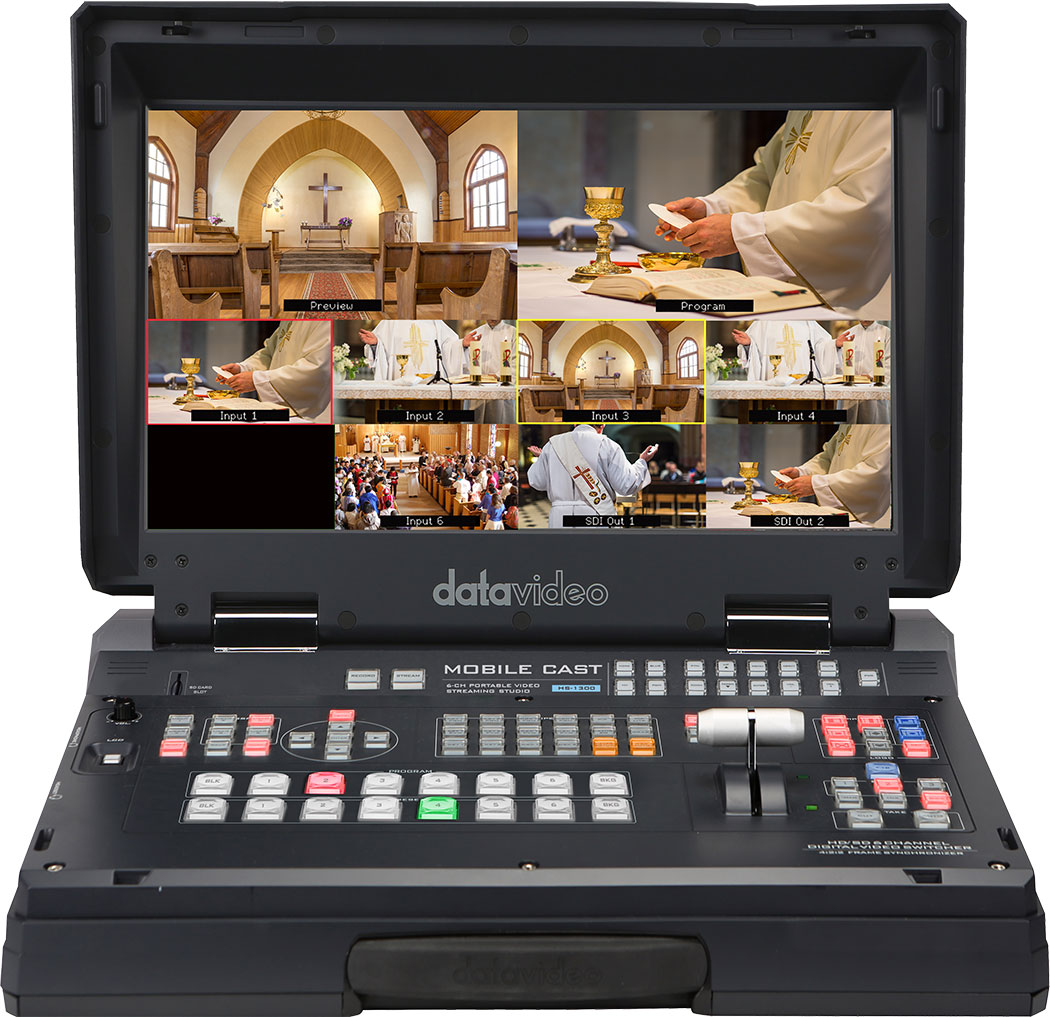

HD 6通道手提式移動錄播導播室

專為移動導播及網路傳輸而設計
HS-1300提供嶄新簡便的影像製作模式。 憑藉方便攜帶的外型設計,可以更快速輕鬆的架設。內建的H.264網路直播編碼器,可以立即將立即將節目內容傳輸到多數CDN,如YouTube和Facebook。

中型現場影像製作的整體解決方案
HS-1300體積輕巧並支援最高6路HDMI與SDI輸入,方便現場影像製作使用。

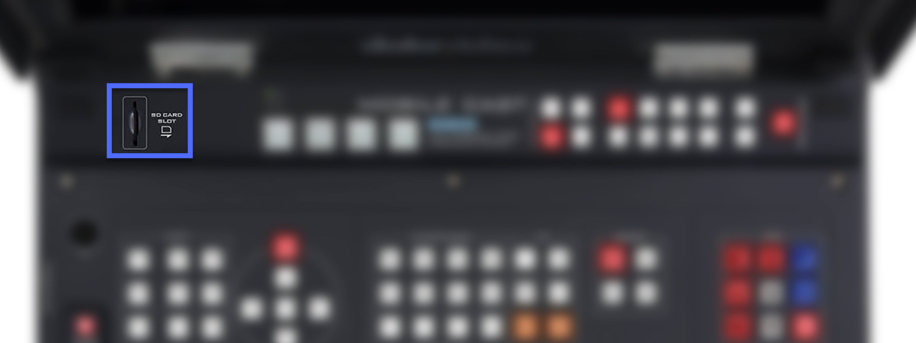

H.264影像錄製到SD卡儲存
HS-1300內建網路錄影機, 只需插入SD卡,就可以立即將影像檔案上傳到選擇的直播平台或網站上,同時錄製高品質影像。

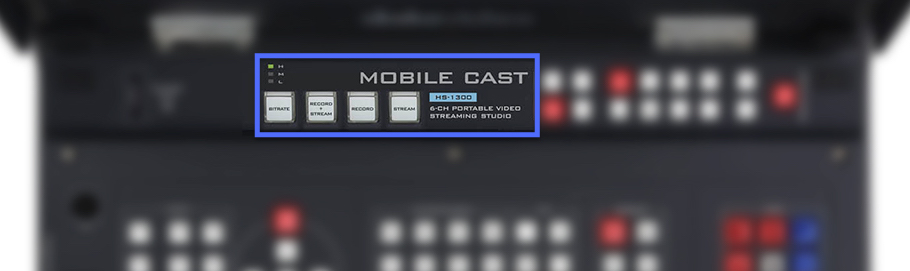

直接串流到Facebook Live、YouTube、Twitch等直播平台
內建H.264網路直播編碼器,可以立即將節目內容傳輸到Facebook、YouTube、Twitch等眾多CDN,也可以搭配Datavideo DVS-200網路直播系統將影像同時傳輸到多個平台。

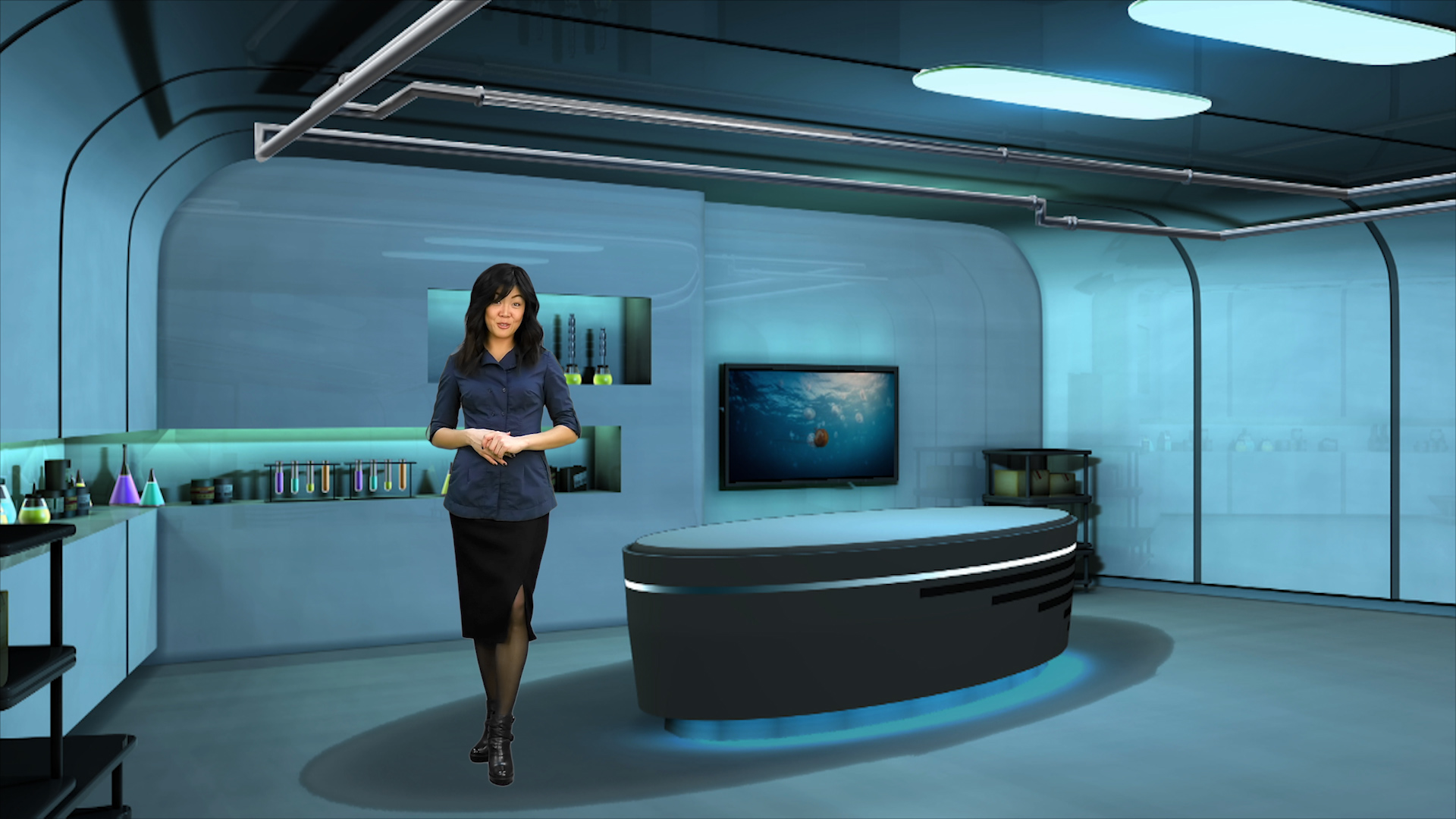

內建虛擬背景
提供多組預存的虛擬背景,創造出色的影像效果。

內建轉場動畫
提供9組預存的轉場動畫,輕鬆展現豐富變換的視覺效果。

支援記憶儲存
將複雜的操作過程保存到記憶儲存鍵,只需一根手指即可輕鬆切換。

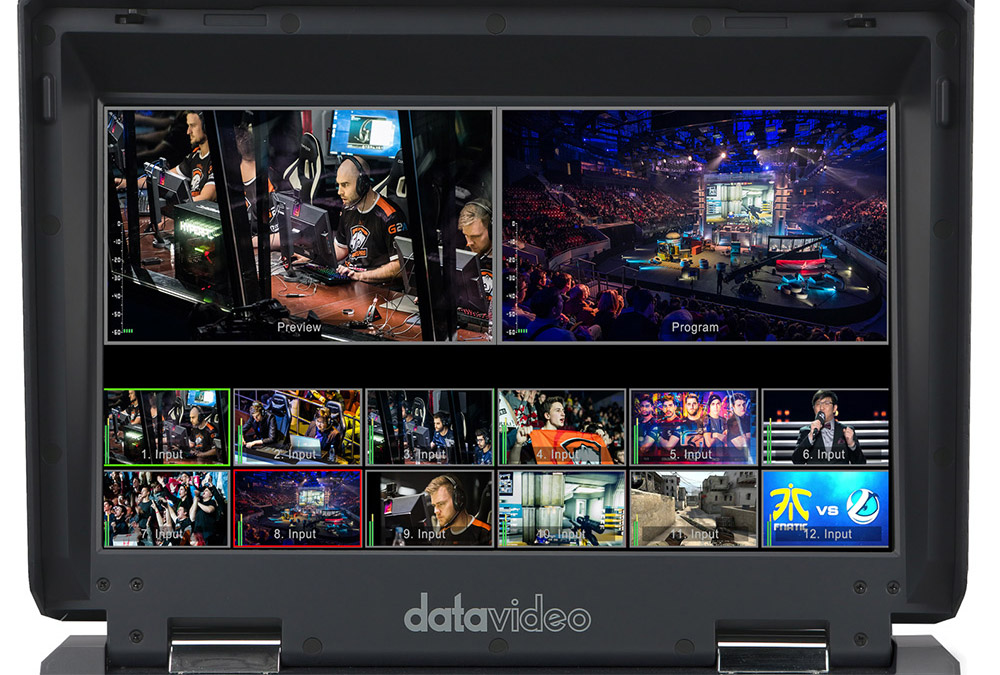

17.3” LED 液晶螢幕
內建 17.3” Full HD TFT 液晶螢幕,解析度高達1600×900像素。
規格
HS-1300 6-Channel HD Portable Video Streaming Studio | |
---|---|
Video Standard | HD |
Video Format | 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
Input Routable / Crosspoint | All 6, repeatable |

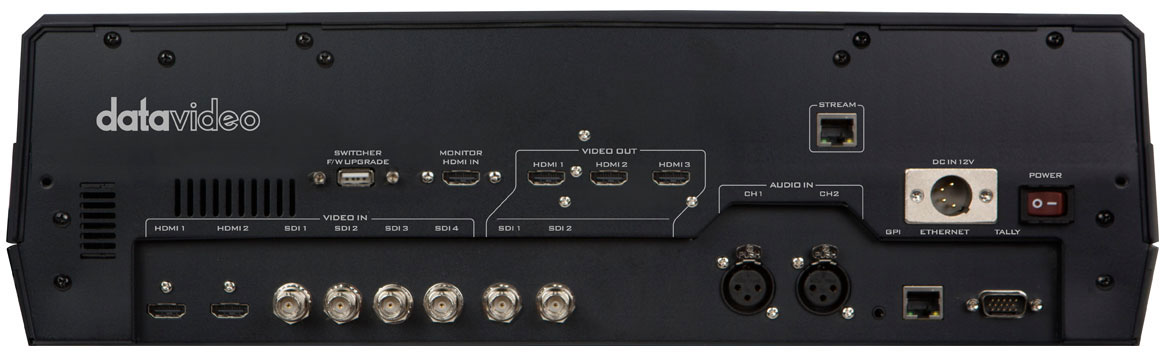

Video Input | 4 x HD-SDI 2 x HDMI |
Computer Graphic Interface | 2 via HDMI |
Down-converted Output | N/A |
Video Output | 3x HDMI
2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview |
Audio Input | 2x Balanced XLR |
Audio Output | 1x Stereo headphone |
Digital Embedded Audio Support Input | Input 2 channels, Output 2 channels |
A+V Switching | Yes |
USK | 2x USK support Chromakey |
DSK | 2, support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 1 |
Logo Insertion | N/A |
Built-in Audio Mixer | N/A |
Built-in Monitor Display | 17.3” HD TFT LED backlit, 1600×900 pix |
Built-in Intercom & Tally | N/A |
Streaming Video Encode | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
Streaming Audio Encode | AAC-LC Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit |
Streaming Protocol | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP RTMP/RTMPS (Publish) |
Streaming Control | Web browser UI for configuration and control Socket commands |
Recording File System | FAT, exFAT, NTFS |
Recording File Format | MP4 |
Recording Setting Control | Web UI for system configuration and control |
Special Features | Streaming encoder and recorder 2 chromakey virtual studio 9 stinger transition and 30 virtual sets included |
Dimension (LxWxH) | 455 x 355 x 134 mm |
Weight | 16.3 Lbs (7.4 kg), Reinforce Plastic Case |
Power | DC 12V, 5A |
Operating Temp. Range | 0~40 °C |
Options | CB-22H/23H/46/47/60/61/62 |
What’s in the Box | |
Content | 1 x HS-1300 Product 1 x AD Switch DC 12V with AC Cord 1 x Thank You Card |
Drive Compatibility | For a list of verified compatible drives, visit the Drive Compatibility Page |

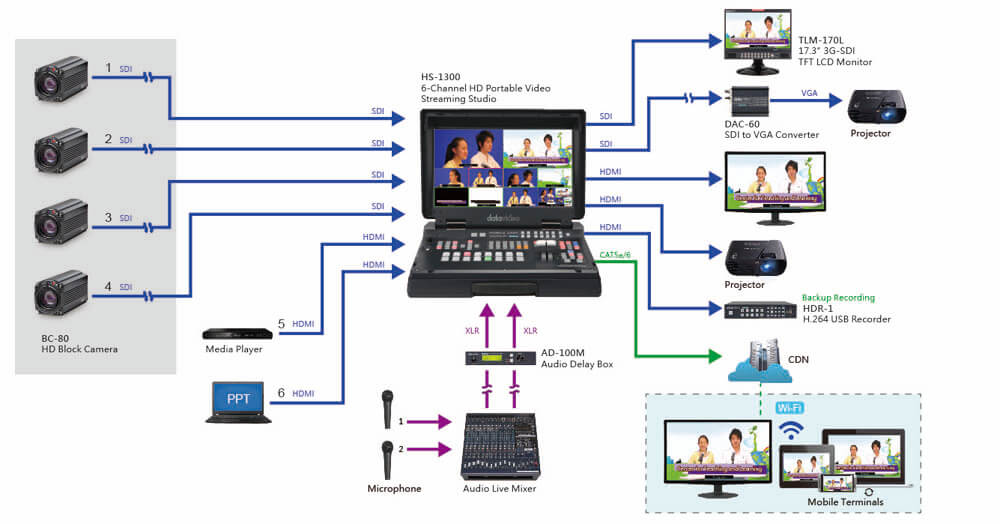

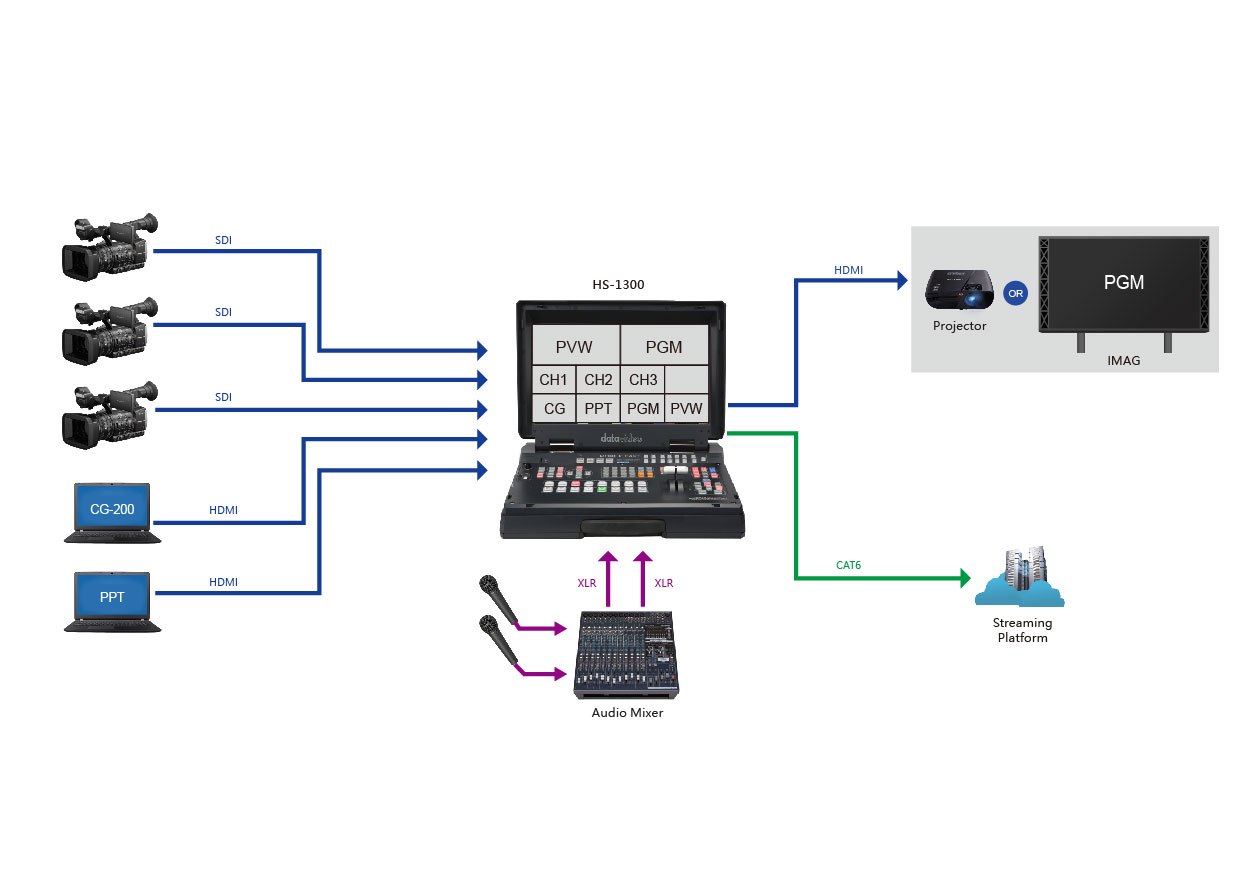

系統圖
