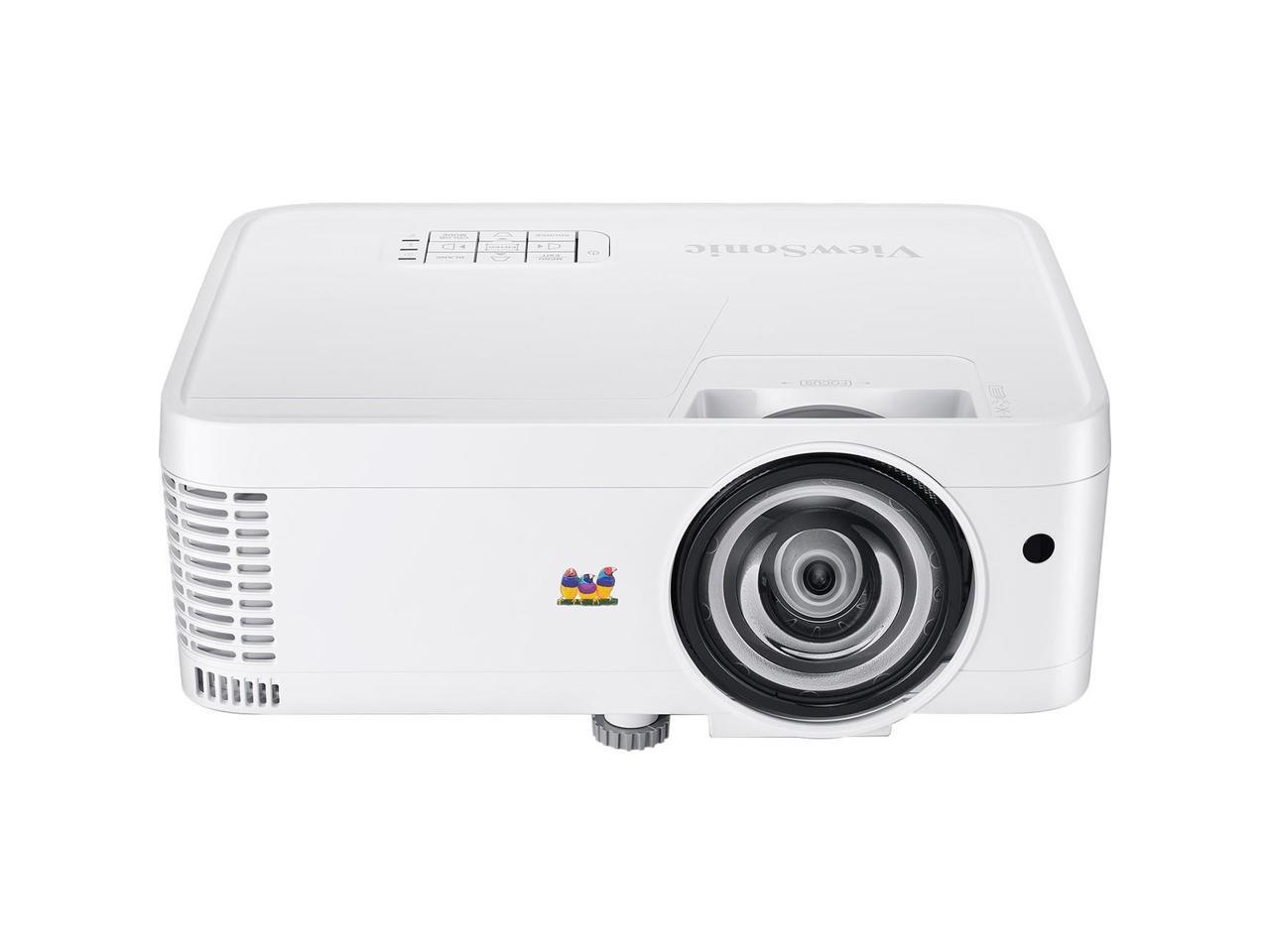

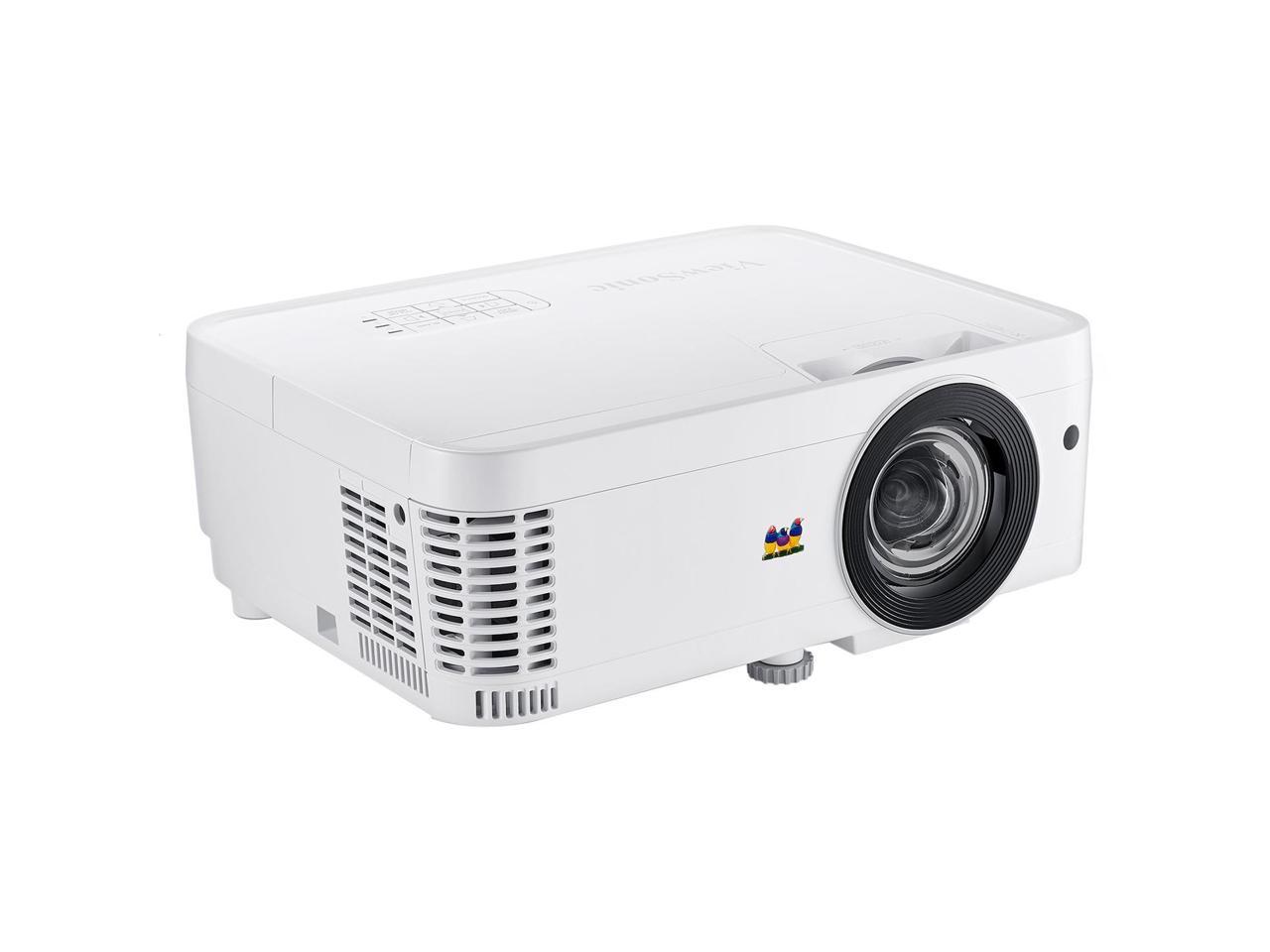

ViewSonic PS600X 短焦

Effortless Installation

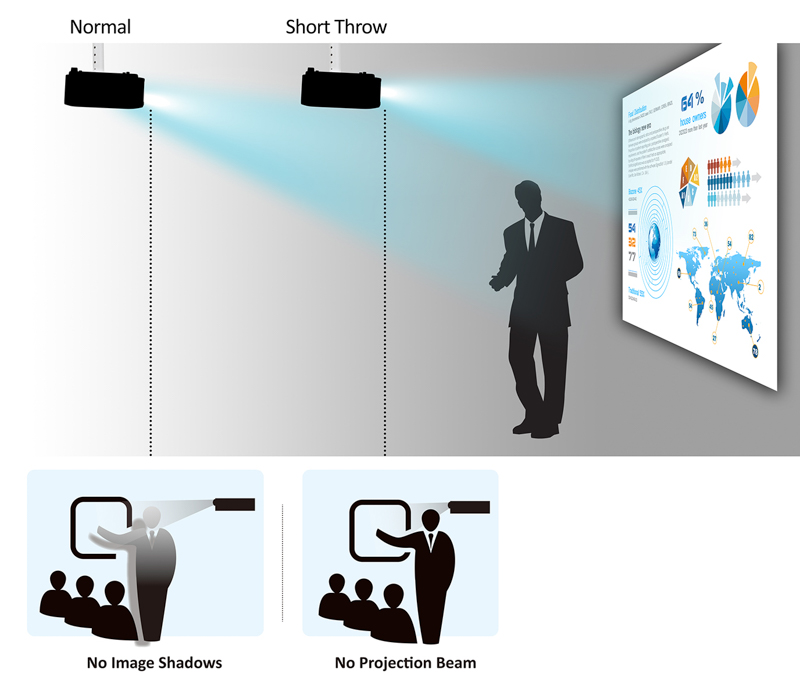

Fit For Classrooms of All Sizes

0.61 short throw projection gives you room to work with when positioning the projector. With the flexibility to be placed within inches of a screen, users will be able to project big images in any space, while also keeping presenters clear of the projection beam and avoid image shadows.

0.61Short Throw

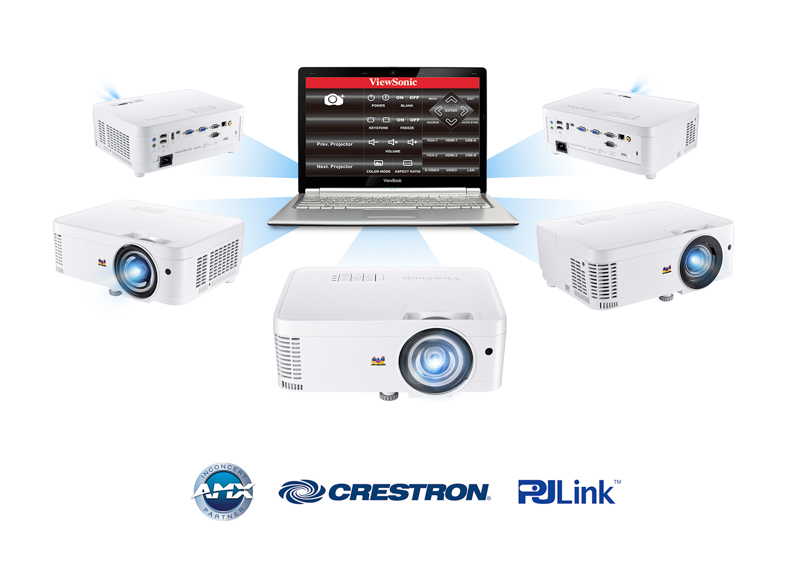

Easy Central Management

The projector is Creston, AMX and PJ Link certified and Extron and vContorller compatible can be easily controlled and monitored remotely from a PC. IT personnel can manage up to 256 projectors at one time and control operations including scheduling through a LAN IP with an advanced, real-time alert system that sends status updates about power, lamp life, and unit location for simplified maintenance.

LAN Control

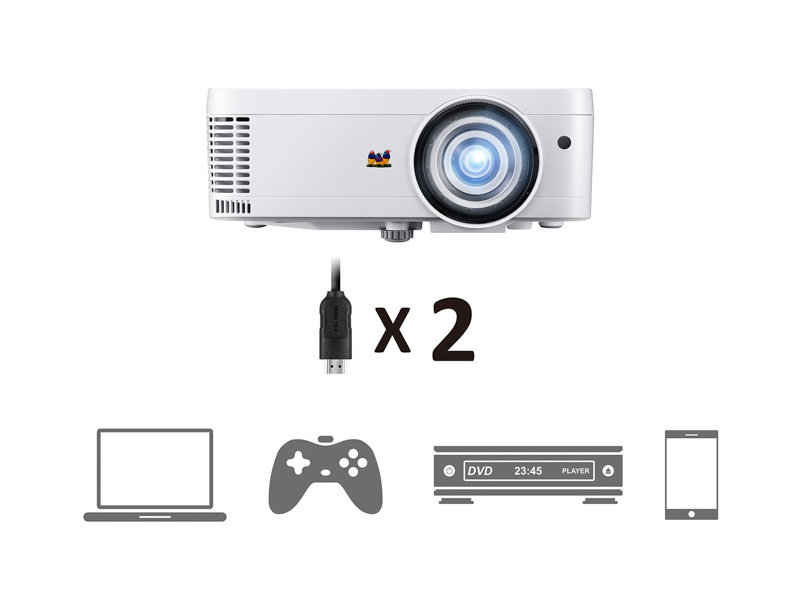

More Connectivity

Equipped with dual HDMI inputs, PS600W allows multiple users to connect laptops or mobile devices for a high-definition experience without taking time to take turns.

Dual HDMIInputs

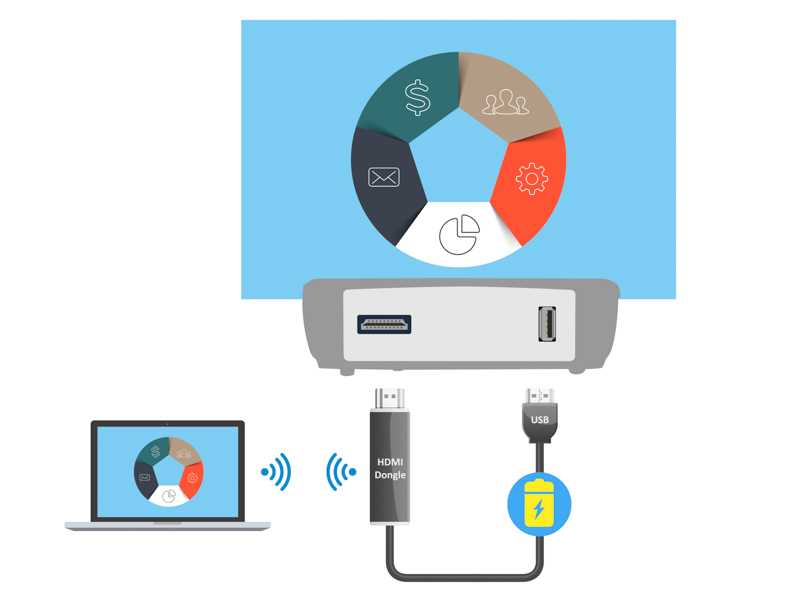

Integrated Power Source

A built in USB power output (5V/1A) can be used to supply power to HDMI dongles, eliminating the need for separate power adapters for connected dongles.

USB 5V/1A

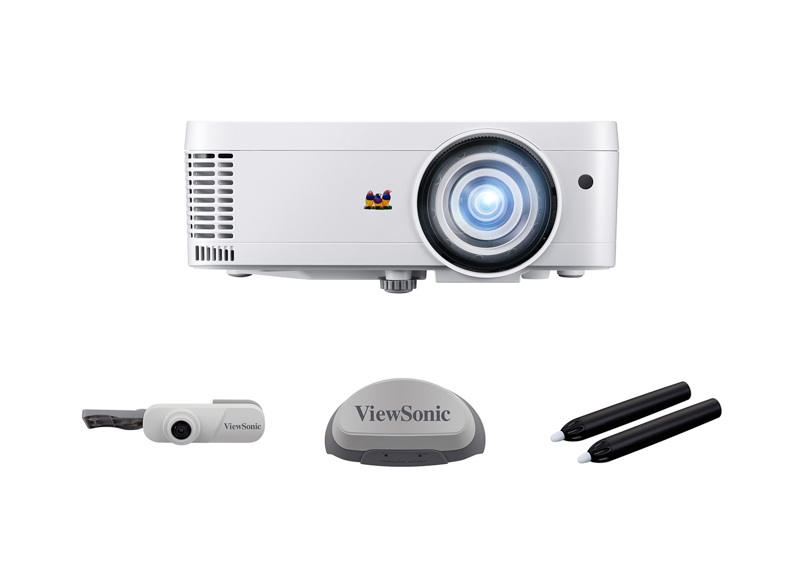

Interactive module compatible

With the optional interactive package, (PJ-vTouch-10S), this projector becomes an interactive tool that transforms any surface into an interactive whiteboard. With the multi-touch capability, users can simultaneously annotate, write, or draw on the projected image to interact with the content and share ideas.

InteractivityAnnotate, write & draw

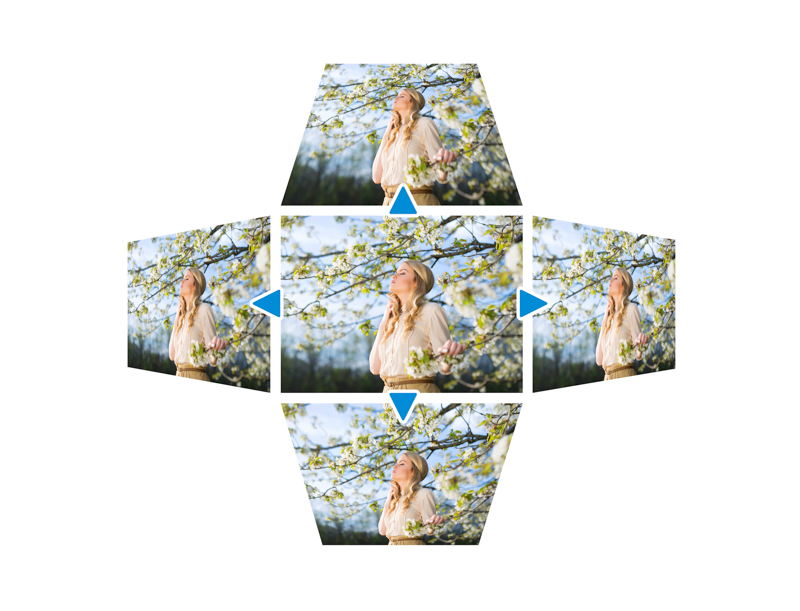

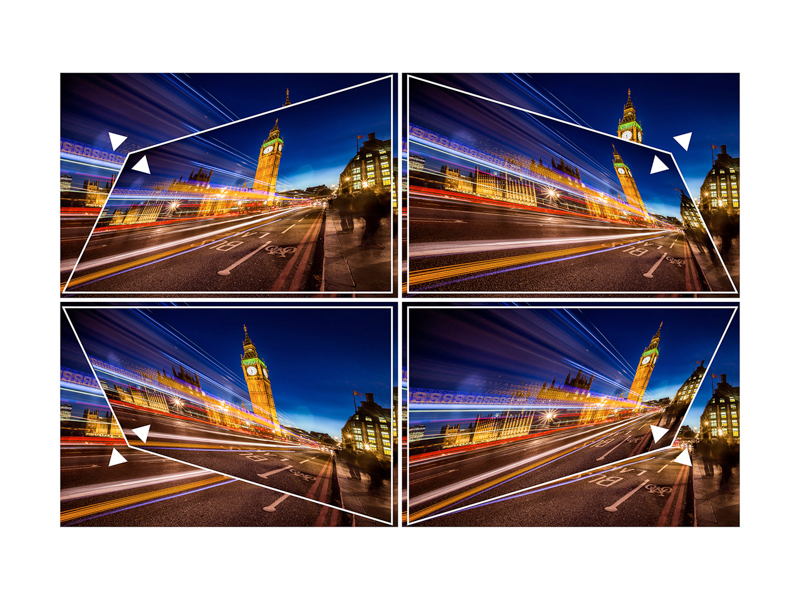

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

AdvancedImage Correction

Instant Activation Upon Signal Detection

Get your projector up and running with ease two simple settings.

• Signal Power On: The projector will power on automatically upon detection of a VGA cable connection and HDMI cable.
• Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.

Instant Activate

Immersive Visual Performance

Bright Images in Any Environment

Packed with 3,500 lumens of brightness and a 22,000:1 high contrast ratio, this projector is guaranteed to produce bright images in any setting, even in spaces with high ambient lighting.

3,500 Lumens

SuperColor™: Best in Class Color Accuracy

ViewSonic’s proprietary SuperColor™ Technology offers a wider color range, ensuring users enjoy true-to-life color projection in both bright and dark environments.

SuperColor™Technology

Fantastic 3D Viewing

The HDMI port allows users to display 3D imagery directly from 3D Blu-Ray players and connect to HDMI-enabled devices such as laptops, tablets, and media players.

3D Blu-ray

Low Total Cost of Ownership

Extended Lifespan

When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.

• Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
• SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.

15,000 hoursLifespan

Reminder for Time Management

The Presenter Timer is an embedded on-screen timer and a great time management tool for helping presentations run on schedule.

Presenter Timer

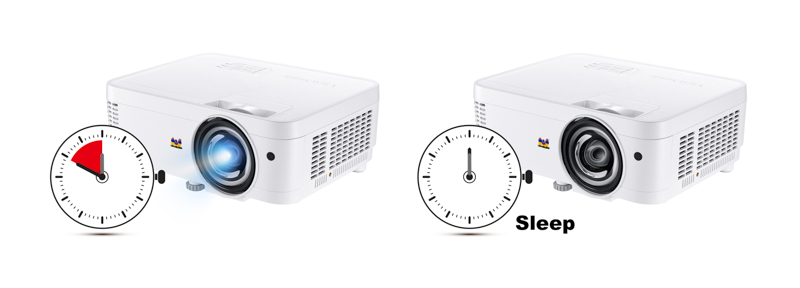

Sleep Timer

The sleep timer allows the projector to automatically power down after no signal has been detected. An easy way to save energy and extend the projector’s lifespan.

Sleep Timer

Reduced Energy Consumption

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

Auto Power Off

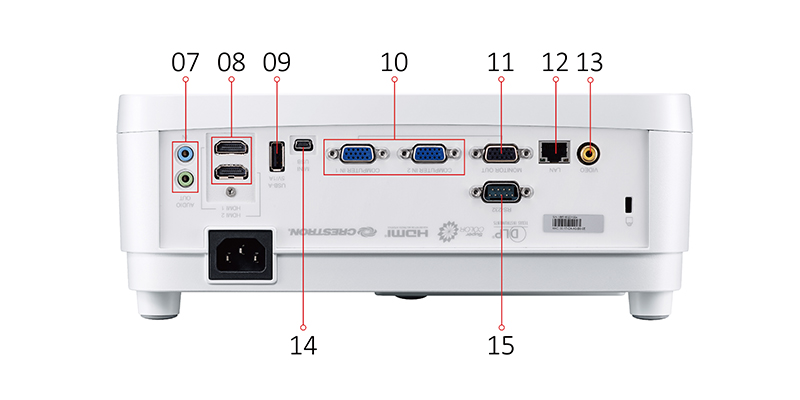

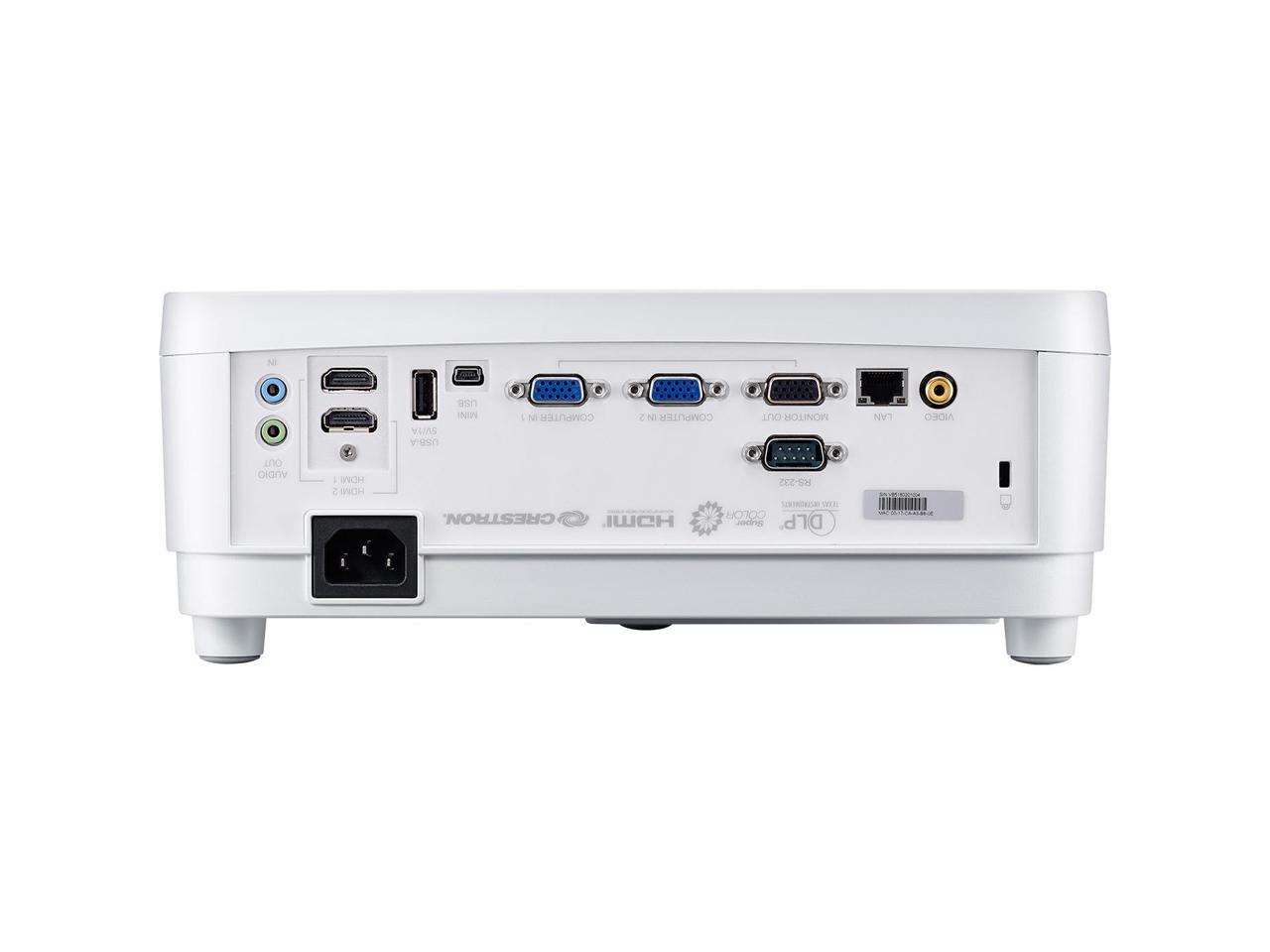

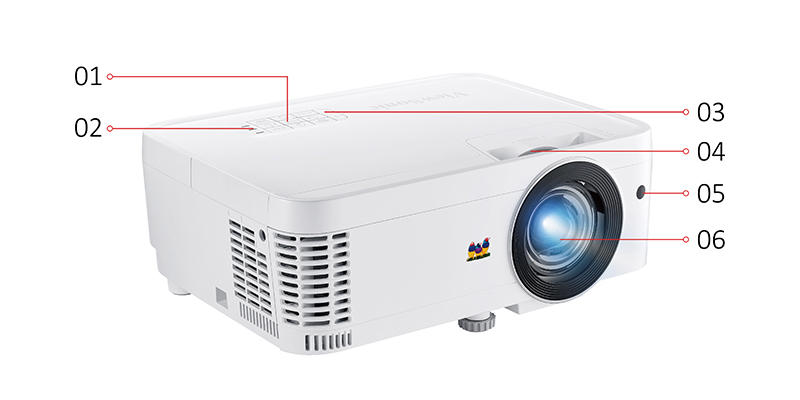

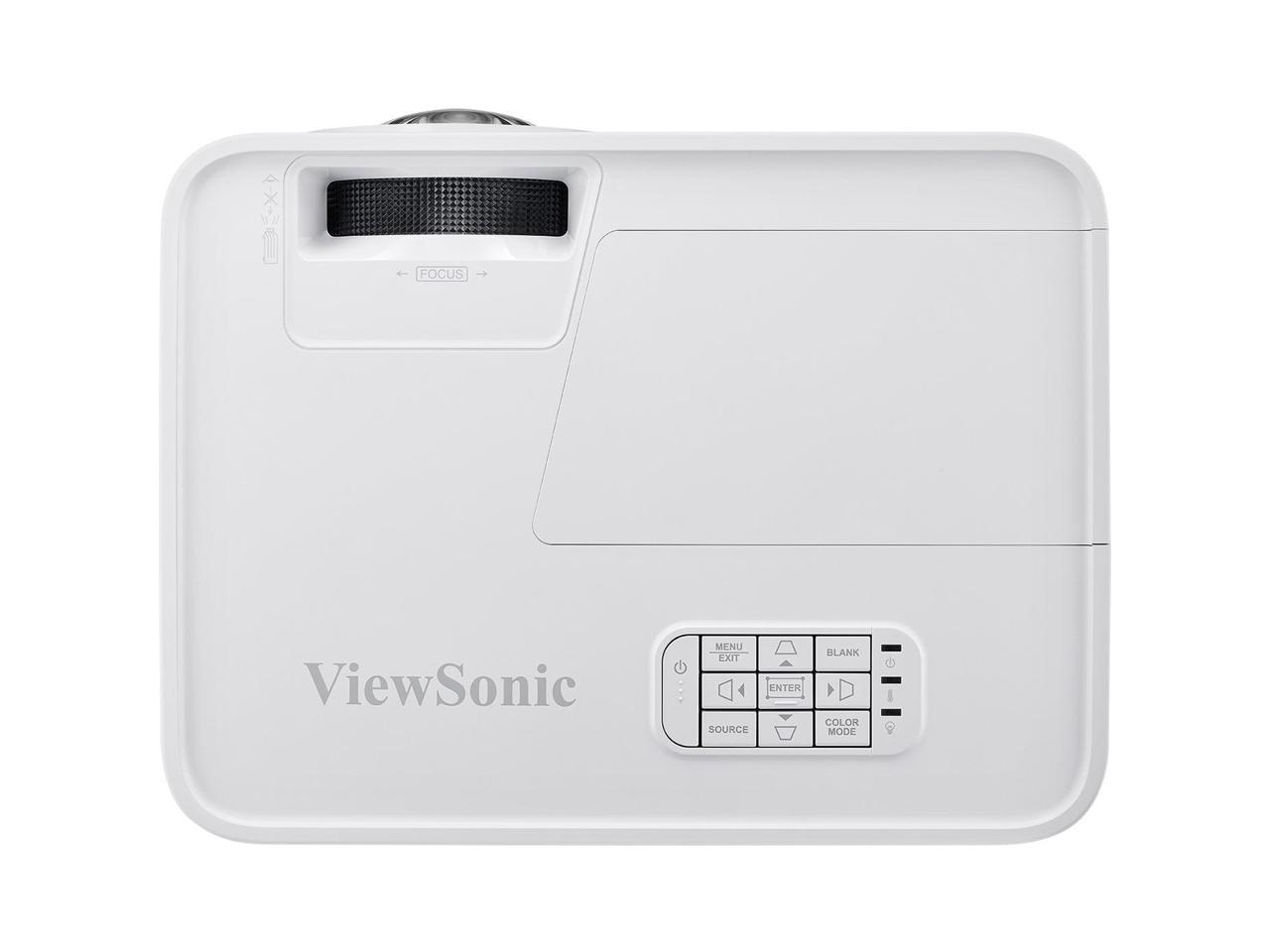

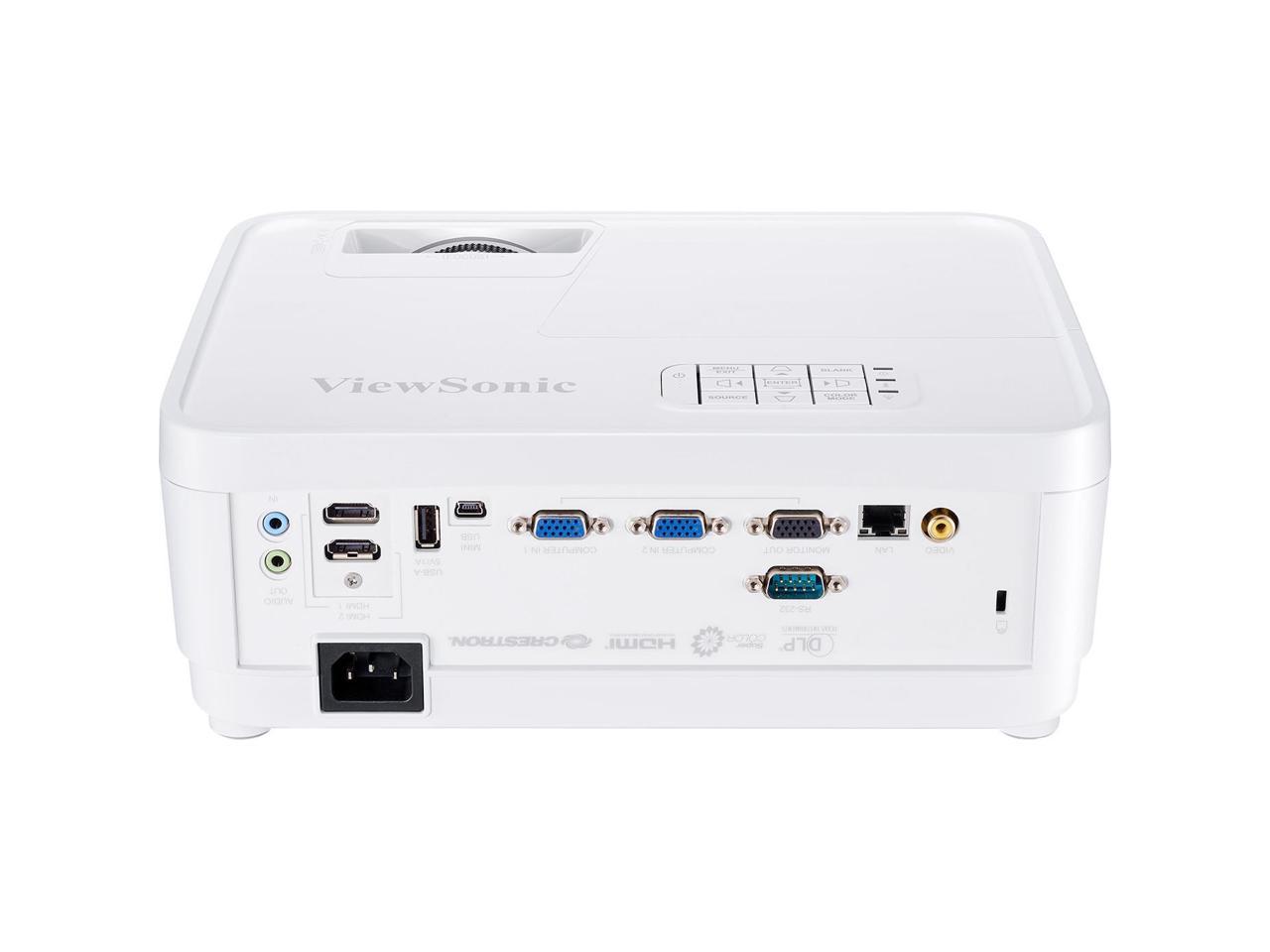

Exterior & Rear I/O Connectors

• SPECIFICATIONProjection System : 0.55″ XGA
  Native Resolution : 1024×768
  DC Type : DC3
  Brightness : 3500 ANSI Lumens
  Contrast Ratio With SuperEco Mode : 22000:1
  Display Color : 1.07 Billion Colors
  Light Source : Lamp
  Light Source Life (Nor/SuperEco) : 5000/15000
  Lamp Watt : 190W
  Lens : F=2.6, f=6.9mm
  Projection Offset : 130%+/-5%
  Throw Ratio : 0.61
  Image Size : 60″ – 300″
  Throw Distance : 0.74m-2.23m (100″ @ 1.24m)
  Keystone : HV
  Optical Zoom : Fixed
  Audible Noise (Eco) : 27dB
  Resolution Support : VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility : NTSC, PAL, SECAM
  Horizontal Frequency : 15K~102KHz
  Vertical Scan Rate : 23~120Hz
• INPUTComputer In (D-SUB 15 Pin) : 2
  Composite : 1
  Audio-in (3.5mm) : 1
  HDMI/HDCP : 2
  (HDMI 1.4/ HDCP 1.4)
• OUTPUTMonitor Out (D-SUB 15 Pin) : 1
  Audio Out (3.5mm) : 1
  Speaker : 10W
  USB Type A (Power) : 1 (5V/1A)

• CONTROLRS232 : 1
  RJ45 : 1
  USB Type Mini B (Services) : 1
• OTHERSPower Supply Voltage : 100-240V+/- 10%, 50/60Hz AC
  Power Consumption : Normal: 260W
  Standby: <0.5W
  Operating Temperature : 0~40℃
  Carton : Brown
  Net Weight : 2.6kg
  Dimensions (WxDxH) W/adjustment Foot : 292x236x115mm
