Panasonic PT-EX520
0.63 ” 4:3 LCD 底板
光度輸出: 5300 流明 ;對比度 : 2000 : 1
解像度 : 1024 x 768 點 (XGA )
鏡頭移動功能 ( 垂直:±50%電動 )
可選配鏡頭
環保濾塵網可使用15000小時
描述
PT-EX520
Compact and Lightweight Multi-Purpose Projectors Offer Flexibility and Economy
Excellent Picture Quality
- High brightness of 5,300 lm from a compact body
- Dynamic 10,000:1 contrast performance with iris
- High resolution up to XGA for detailed full HD images
- Daylight View Basic function ensures clear and vivid image quality in bright environments
- DICOM simulation mode*1 for medical presentations
- Color Adjustment function to correct color variations in multi-projector applications
Low TCO and Easy Maintenance
- Long lamp replacement cycle: up to 5,000 hours (Eco) / 4,000 hours (Normal)*2

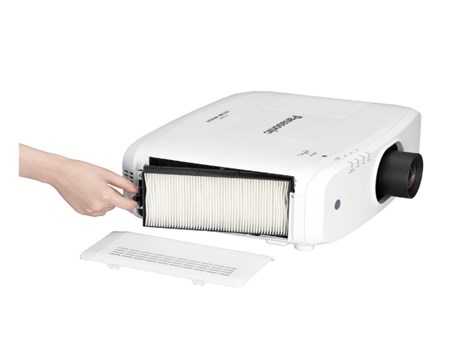

- Reusable Eco Filter replacement extended to 15,000 hours*2
- Dust-resistant cabinet with one-way air flow design

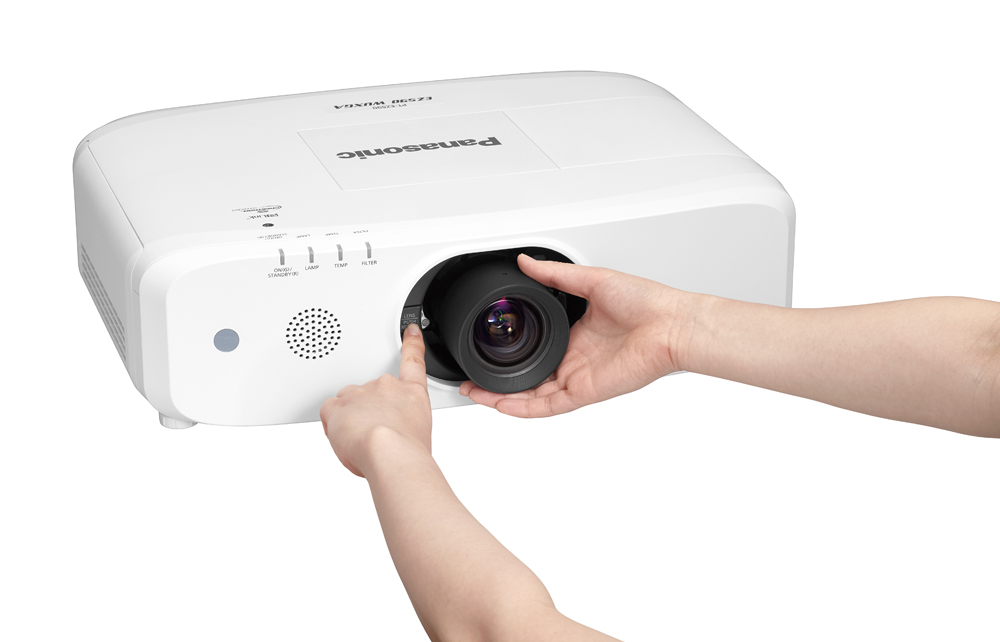

- Easy access to lamp, filter, and lens when mounted on ceiling
- Eco management system effectively reduces power consumption
- Ultra-quiet 29 dB*3 operation on Eco mode
System Flexibility
- DIGITAL LINK supports transmission of uncompressed full HD video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)*4

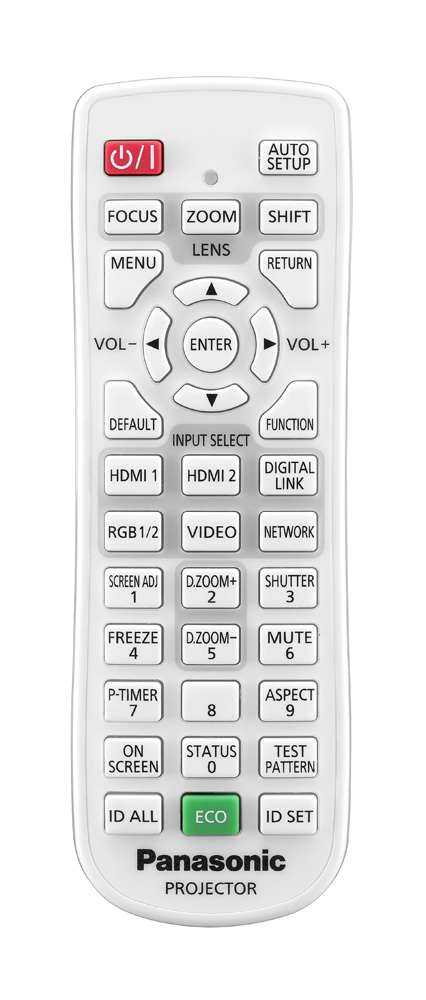

- Powered lens shift, zoom, and focus via remote control
- Wireless projection with optional dongle (ET-WML100)
- Corner keystone & curved screen correction
- Vertical 360-degree projector cabinet rotation
- Range of optional lenses
- Network function via LAN for easy remote operation
- Supports free Multi Projector Monitoring & Control Software
*1 This product is not a medical instrument. Do not use for actual medical diagnosis, *2 The usage environment affects the lamp replacement cycle and the duration of the filter, *3 35 dB with lamp power set to Normal, *4 DIGITAL LINK featured on PT-EZ590/EW650/EX620 only. 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080/60p (dot-clock frequency 148.5 MHz). Transmission distance is up to 100 m (328 ft) in other cases.
額外資訊
Specification: Panasonic PT-EX520
|
一般規格 |
||
面板 |
0.63" LCD底板 x 3 |
|
燈泡 |
320W UHM |
|
亮度 |
6,200流明 |
|
鏡頭 |
Powered 1.8X zoom (throw ratio 1.32-2.44:1), power focus F 1.6-2.2, f1.71-31.7mm |
|
對比度 |
2,000:1 |
|
解像度 |
XGA |
|
兼容視頻訊號 |
PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43 |
|
影像大小(對角) |
40" – 400" |
|
鏡頭移動功能 |
垂直 ±50% |
|
梯型矯正範圍 |
垂直 ±35° 或 橫向 ±35% |
|
重量 |
約8.4kg |
|
大小(闊x高x深) |
498 x 145 x 398.3 mm |
|
功率 |
461W |
|
接駁終端 |
HDMI 輸入 (19-pin x 1) |
|
燈泡型號 |
ET-LAEF100 |
|
可選購配件 |
ET-RFE300(濾塵網) |
|
可選購鏡頭 |
變焦鏡頭 |
ET-ELW30 (0.96-1.22:1) |
原裝配件 |
軟件 CD-Rom |
